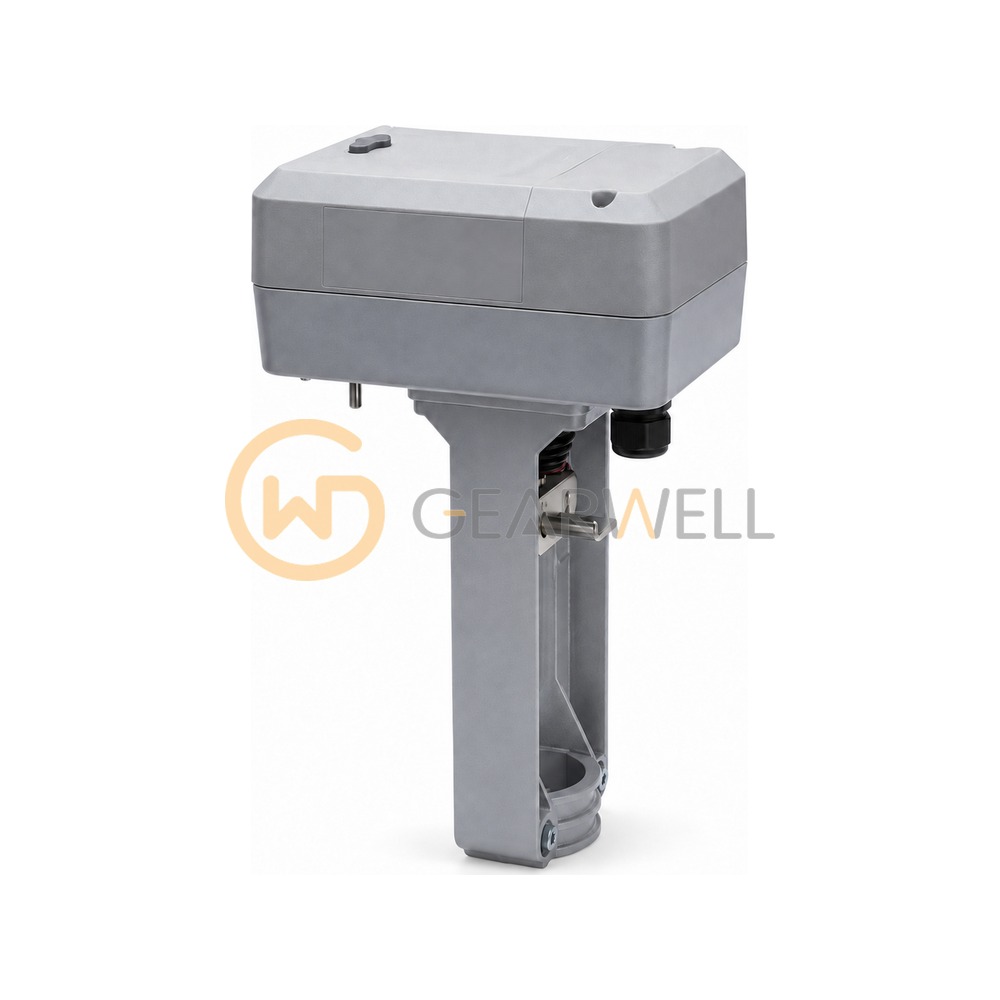

Honeywell ML8824A0620 ML8824 Series 600 N Linear Valve Actuator
- Brand
- HONEYWELL
- Model
- ML8824A0620
- GEARWELL SKU
- GWP-000015754
- Category
- Cylinders & Actuators
Key specifications
- Stroke
- 26 mm
- Version
- Standard (NFC version: ML8824B0620)
- Input signal
- 0(2)-10 Vdc, 0(4)-20 mA; floating
- Power supply
- 24 Vac +/-15 %, 50/60 Hz; 24 Vdc
- Running time
- 3 s/mm or 4 s/mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Honeywell ML8824A0620 ML8824 Series 600 N Linear Valve Actuator |
|---|---|
| Brand | HONEYWELL |
| Model | ML8824A0620 |
| Category | Cylinders & Actuators |
| Stroke | 26 mm |
| Version | Standard (NFC version: ML8824B0620) |
| Input signal | 0(2)-10 Vdc, 0(4)-20 mA; floating |
| Power supply | 24 Vac +/-15 %, 50/60 Hz; 24 Vdc |
| Running time | 3 s/mm or 4 s/mm |
| Thrust force | >= 600 N |
| Power consumption | 10 VA |
