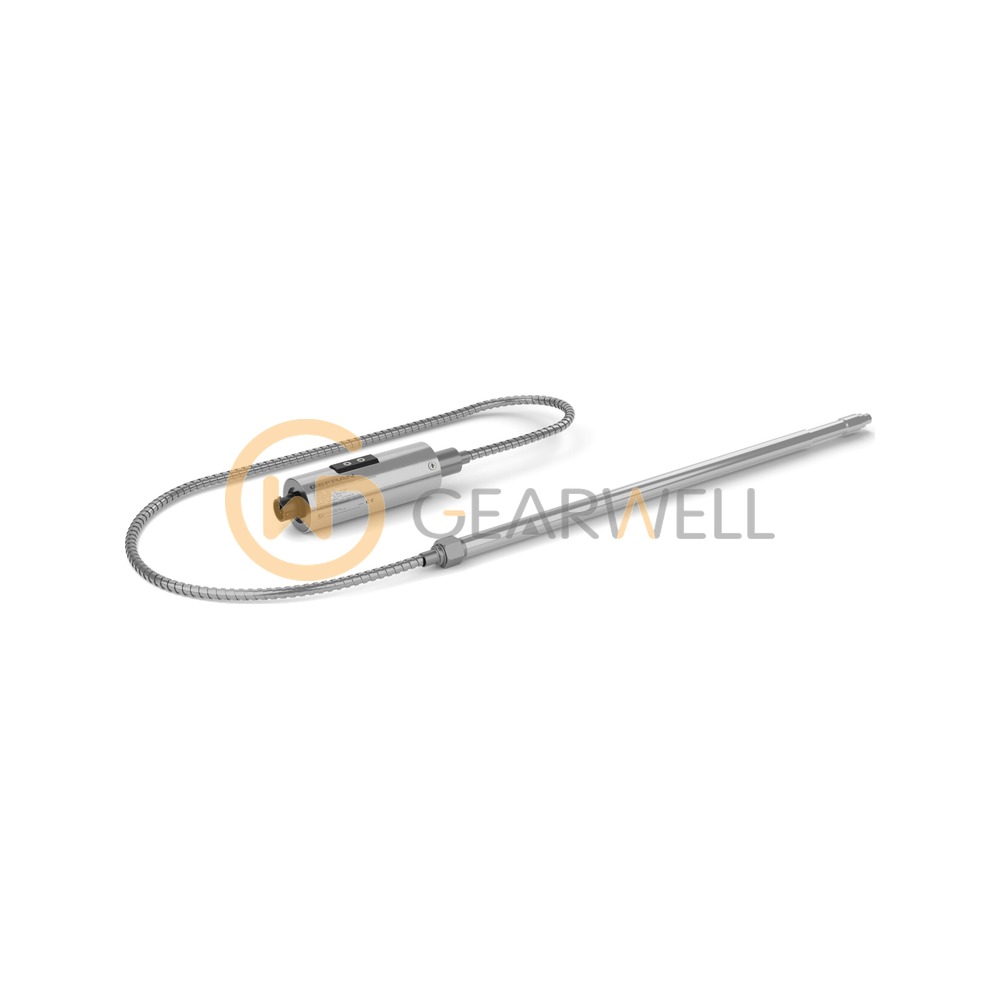

GEFRAN F049634 WX0-6-M-B05D-1-5-0-4 Melt Pressure Transmitter
- Brand
- GEFRAN
- Model
- F049634
- GEARWELL SKU
- GWP-000014026
- Category
- Pressure, Flow & Temperature
Key specifications
- Series
- WX
- Version
- Rigid stem
- Output signal
- 4...20 mA
- Accuracy class
- <±0.5% FSO (M)
- Process thread
- 1/2-20 UNF
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GEFRAN F049634 WX0-6-M-B05D-1-5-0-4 Melt Pressure Transmitter |
|---|---|
| Brand | GEFRAN |
| Model | F049634 |
| Category | Pressure, Flow & Temperature |
| Series | WX |
| Version | Rigid stem |
| Output signal | 4...20 mA |
| Accuracy class | <±0.5% FSO (M) |
| Process thread | 1/2-20 UNF |
| Type designation | WX0-6-M-B05D-1-5-0-4 2130X000X00 |
| Measurement range | 0-50 bar |
| Electrical connection | 6-pin connector VPT07RA10-6PT2 |
| Stem / flexible length codes | 5 / 0 (as in the official type designation) |
| Product ID (Gefran order number) | F049634 |
