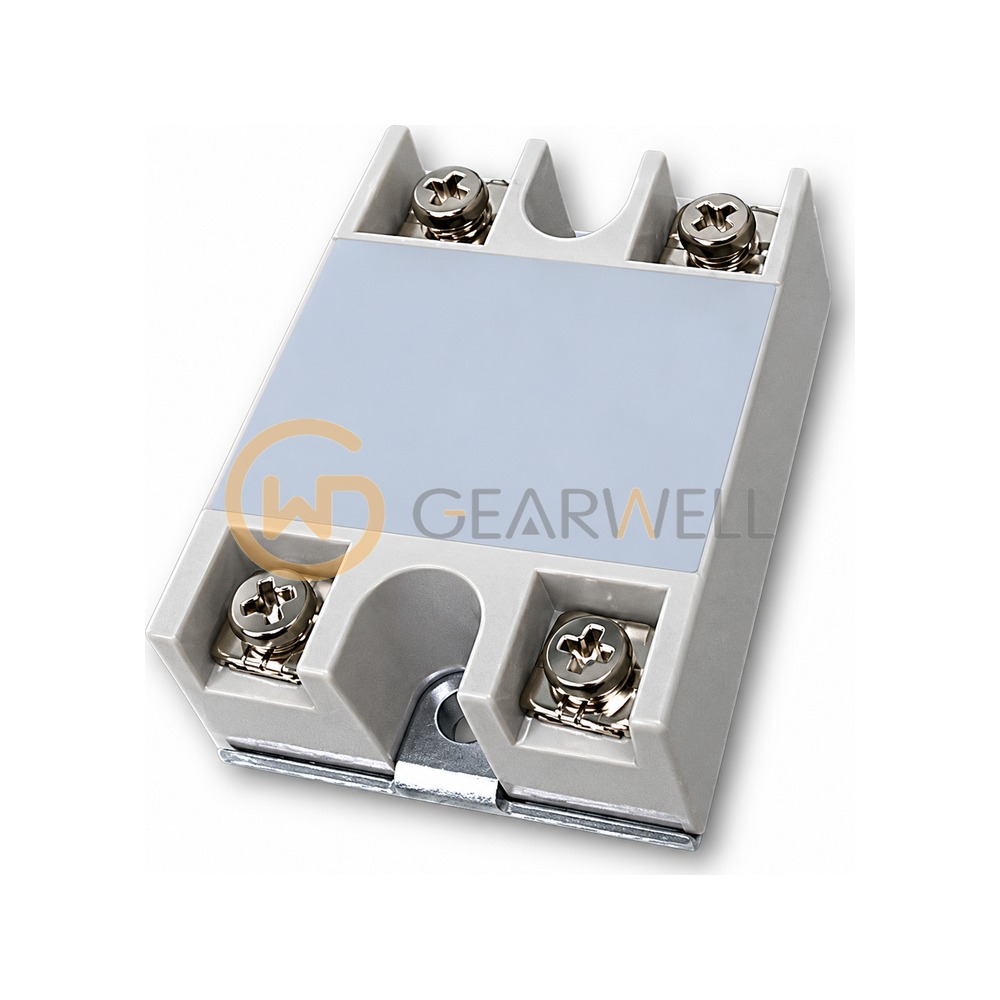

FOTEK SCR-10LA-H SCR-LA Single Phase Linear Control SCR Module
- Brand
- FOTEK
- Model
- SCR-10LA-H
- GEARWELL SKU
- GWP-000012976
- Category
- Contactors & Starters
Key specifications
- I2t for fuse
- 144 A2s
- Input method
- 4-20 mA
- Response time
- 1.0 ms max.
- Surge current
- 135 A
- Control method
- Phase control
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FOTEK SCR-10LA-H SCR-LA Single Phase Linear Control SCR Module |
|---|---|
| Brand | FOTEK |
| Model | SCR-10LA-H |
| Category | Contactors & Starters |
| I2t for fuse | 144 A2s |
| Input method | 4-20 mA |
| Response time | 1.0 ms max. |
| Surge current | 135 A |
| Control method | Phase control |
| Output voltage | 250-480 VAC |
| Input resistance | Approx. 1.2 kΩ |
| Operating environment | -40 to +80 °C; 35-85% RH |
| Rated current (resistive load) | 10 A max. |
