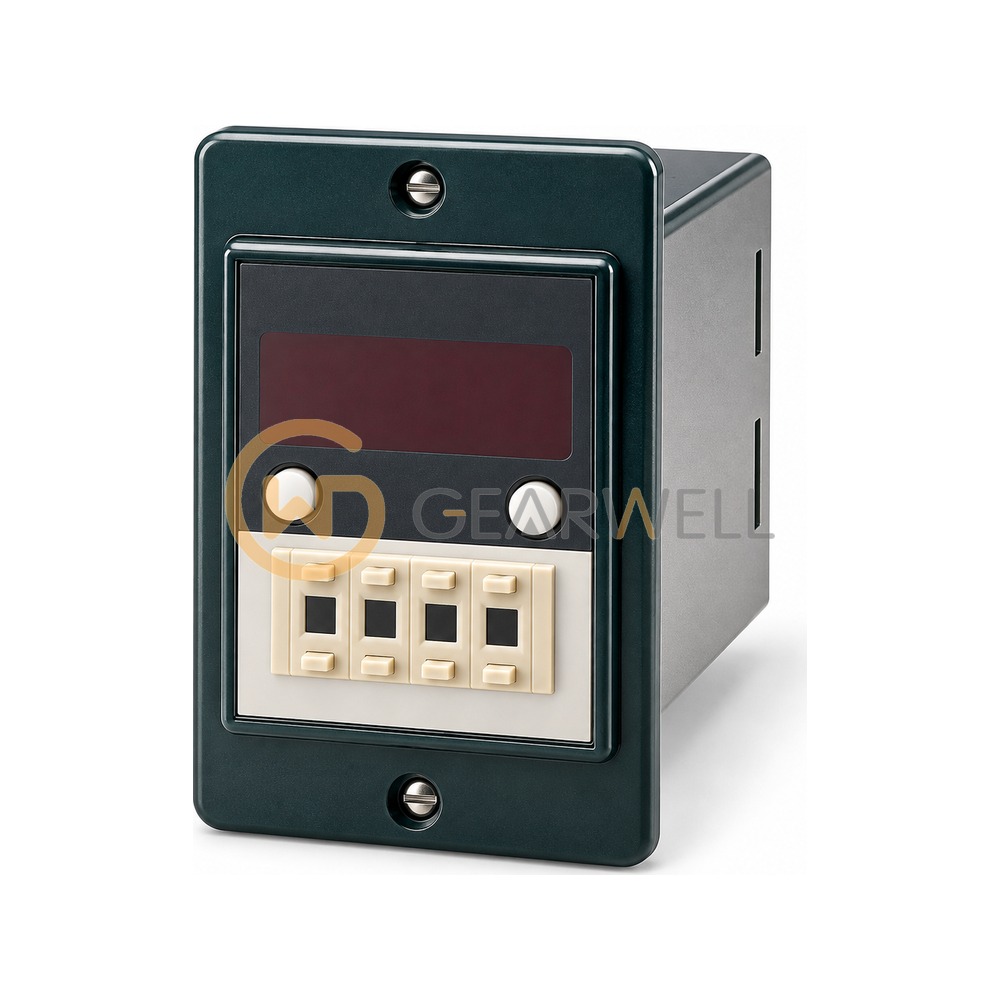

FOTEK Sc-4d/220v SC-D Series Preset Digital Counter
- Brand
- FOTEK
- Model
- Sc-4d/220v
- GEARWELL SKU
- GWP-000013381
- Category
- Test & Measurement
Key specifications
- Output
- Relay, 1a / 10 A
- Power supply
- 90-250 V AC 50/60 Hz
- Memory method
- EEPROM or non-memory
- Counting method
- Up or down counting
- Code suffix "/220v"
- as collected; not a FOTEK ordering code
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FOTEK Sc-4d/220v SC-D Series Preset Digital Counter |
|---|---|
| Brand | FOTEK |
| Model | Sc-4d/220v |
| Category | Test & Measurement |
| Output | Relay, 1a / 10 A |
| Power supply | 90-250 V AC 50/60 Hz |
| Memory method | EEPROM or non-memory |
| Counting method | Up or down counting |
| Code suffix "/220v" | as collected; not a FOTEK ordering code |
| Operating ambient | -20 to +60 °C, 35-85 % RH |
| Power consumption | 5 VA max. |
| Response frequency | Hi > 1 kHz, Lo < 30 Hz |
