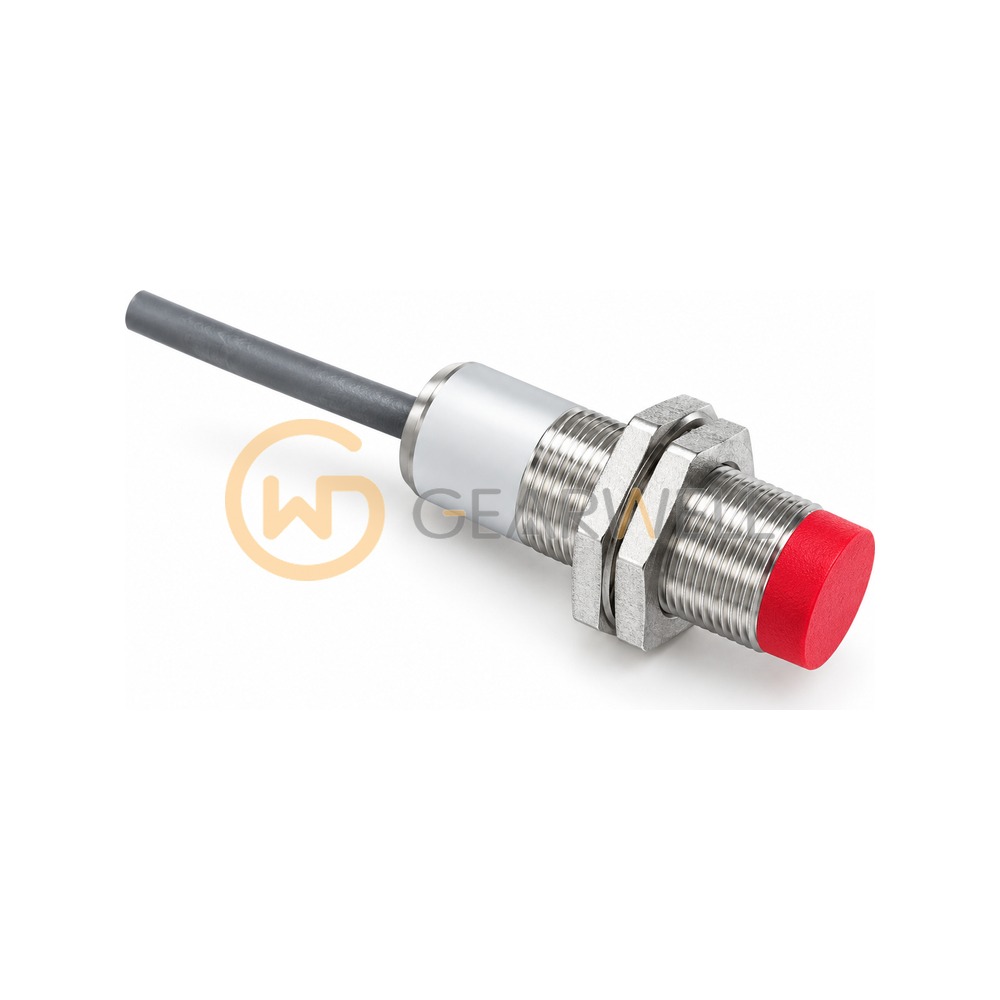

FOTEK PM18-08PS PM Series M18 PNP Inductive Proximity Sensor
- Brand
- FOTEK
- Model
- PM18-08PS
- GEARWELL SKU
- GWP-000012975
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Output
- PNP, NO
- Mounting
- Non-flushed
- Thread size
- M18 x 1.0
- Output current
- 150 mA max.
- Housing material
- Cu plated Ni
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FOTEK PM18-08PS PM Series M18 PNP Inductive Proximity Sensor |
|---|---|
| Brand | FOTEK |
| Model | PM18-08PS |
| Category | Proximity & Photoelectric Sensors |
| Output | PNP, NO |
| Mounting | Non-flushed |
| Thread size | M18 x 1.0 |
| Output current | 150 mA max. |
| Housing material | Cu plated Ni |
| Protection class | IP-67 |
| Sensing distance | 8.0 mm |
| Operating voltage | 10-30 VDC |
| Response frequency | 800 Hz |
| Operating temperature | -25 to +80 °C |
