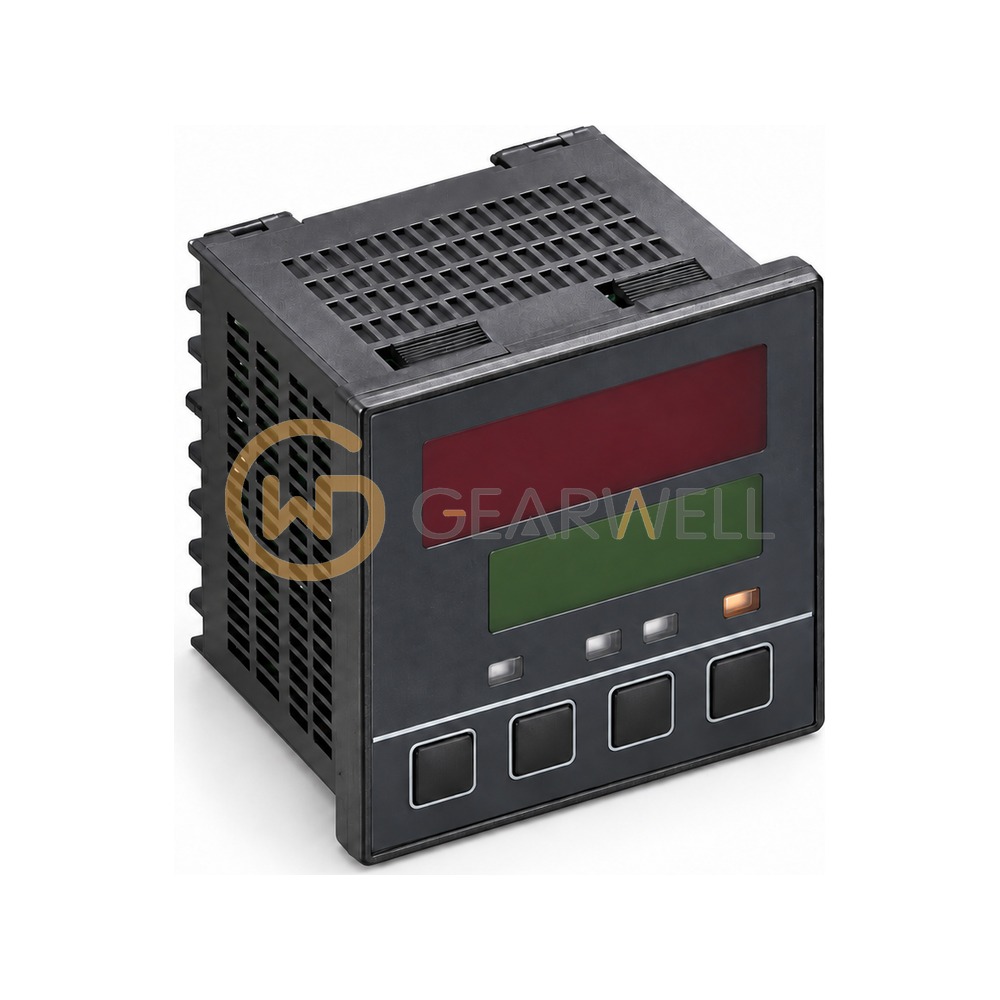

FOTEK Mt72-l4-20ma MT Series PID Temperature Controller 72x72
- Brand
- FOTEK
- Model
- Mt72-l4-20ma
- GEARWELL SKU
- GWP-000013380
- Category
- Pressure, Flow & Temperature
Key specifications
- Model / size
- MT72-L, 72 x 72 x 80 mm
- Alarm output
- 3 A / 250 V AC SPDT
- Power supply
- 90-265 V AC 50/60 Hz
- Sensor input
- K / J / PT-100 selectable
- Control method
- Fuzzy + PID or ON/OFF settable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FOTEK Mt72-l4-20ma MT Series PID Temperature Controller 72x72 |
|---|---|
| Brand | FOTEK |
| Model | Mt72-l4-20ma |
| Category | Pressure, Flow & Temperature |
| Model / size | MT72-L, 72 x 72 x 80 mm |
| Alarm output | 3 A / 250 V AC SPDT |
| Power supply | 90-265 V AC 50/60 Hz |
| Sensor input | K / J / PT-100 selectable |
| Control method | Fuzzy + PID or ON/OFF settable |
| Display accuracy | ±0.1 % of FS + 1 digit |
| Code suffix "4-20ma" | as collected; not part of the FOTEK model code (MT72-L already denotes 4-20 mA linear output) |
| Control output (linear) | 4-20 mA, load 600 Ω max. |
