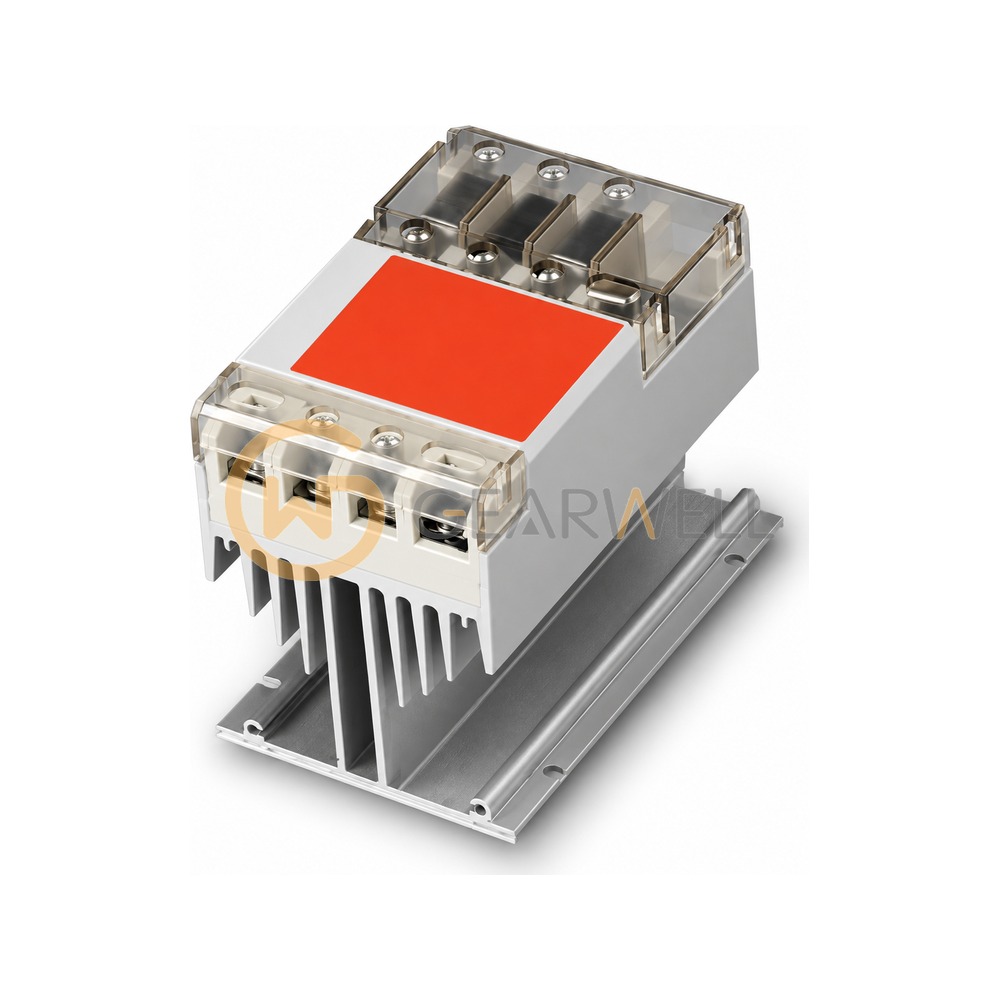

FOTEK LSR-F-25AA LSR-F-AA Three Phase Fuse Type Solid State Relay
- Brand
- FOTEK
- Model
- LSR-F-25AA
- GEARWELL SKU
- GWP-000012970
- Category
- Contactors & Starters
Key specifications
- Type
- Standard AC to AC
- Input voltage
- 20-265 VAC/DC
- Response time
- 8.3 ms (60 Hz)
- Control method
- Zero cross switching
- Leakage current
- 25 mA max.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FOTEK LSR-F-25AA LSR-F-AA Three Phase Fuse Type Solid State Relay |
|---|---|
| Brand | FOTEK |
| Model | LSR-F-25AA |
| Category | Contactors & Starters |
| Type | Standard AC to AC |
| Input voltage | 20-265 VAC/DC |
| Response time | 8.3 ms (60 Hz) |
| Control method | Zero cross switching |
| Leakage current | 25 mA max. |
| Turn off voltage | <10 VAC/DC |
| Load supply voltage | 90-550 VAC |
| Dimensions (W x D x H) | 100 x 153 x 127 mm |
| Operating environment | -40 to +80 °C; 35-85% RH |
