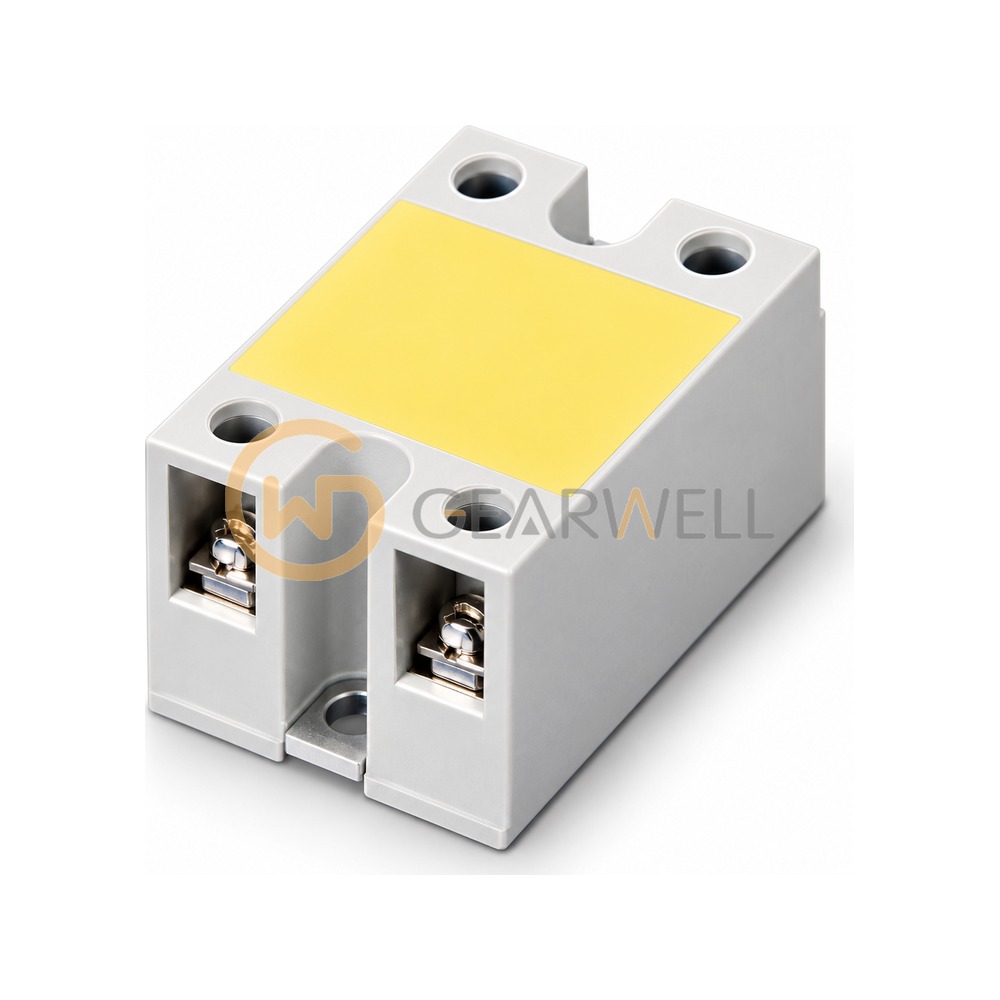

FOTEK HPR-100DA-H HPR-DA High Voltage DC to AC Solid State Relay
- Brand
- FOTEK
- Model
- HPR-100DA-H
- GEARWELL SKU
- GWP-000012969
- Category
- Contactors & Starters
Key specifications
- I2t for fuse
- 7200 A2s
- Input voltage
- 4-32 VDC
- Surge current
- 1750 A
- Control method
- Zero cross switching
- Output voltage
- 24-550 VAC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FOTEK HPR-100DA-H HPR-DA High Voltage DC to AC Solid State Relay |
|---|---|
| Brand | FOTEK |
| Model | HPR-100DA-H |
| Category | Contactors & Starters |
| I2t for fuse | 7200 A2s |
| Input voltage | 4-32 VDC |
| Surge current | 1750 A |
| Control method | Zero cross switching |
| Output voltage | 24-550 VAC |
| Trigger current | 12 mA max. |
| Over heat protection | Output off above 120 °C; reset below 110 °C |
| Operating environment | -40 to +80 °C; 35-85% RH |
| Rated current (resistive load) | 100 A max. |
