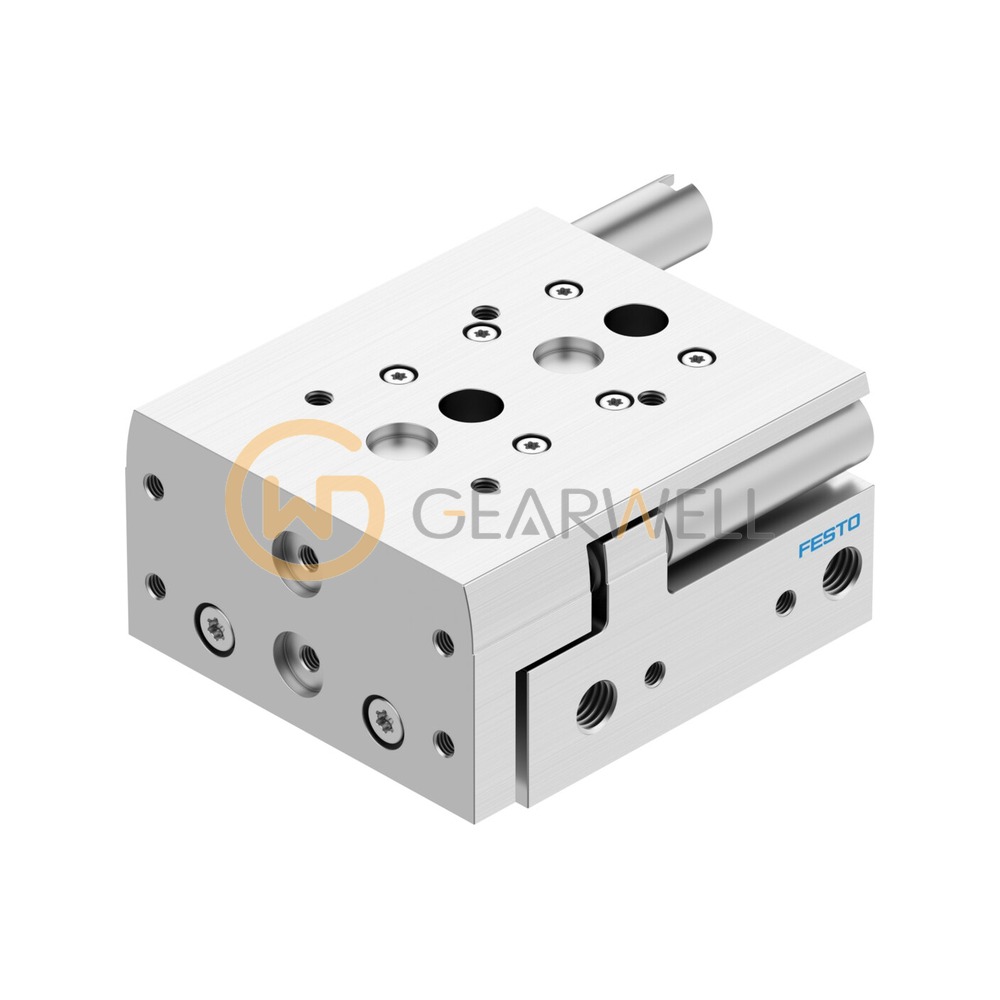

FESTO DGST-20-30-PA Pneumatic Mini Slide
- Brand
- FESTO
- Model
- DGST-20-30-PA
- GEARWELL SKU
- GWP-000011593
- Category
- Linear & Rotary Motion
Key specifications
- Guide
- Ball bearing cage guide
- Stroke
- 30 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Order code
- DGST-20-30-PA
- Piston diameter
- 20 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO DGST-20-30-PA Pneumatic Mini Slide |
|---|---|
| Brand | FESTO |
| Model | DGST-20-30-PA |
| Category | Linear & Rotary Motion |
| Guide | Ball bearing cage guide |
| Stroke | 30 mm |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Order code | DGST-20-30-PA |
| Piston diameter | 20 mm |
| Position sensing | Via proximity switch |
| Festo part number | 8085141 |
| Drive unit operating mode | Yoke |
| Adjustable end-position range/rear length | 30.1 mm |
| Adjustable end-position range/front length | 30.1 mm |
