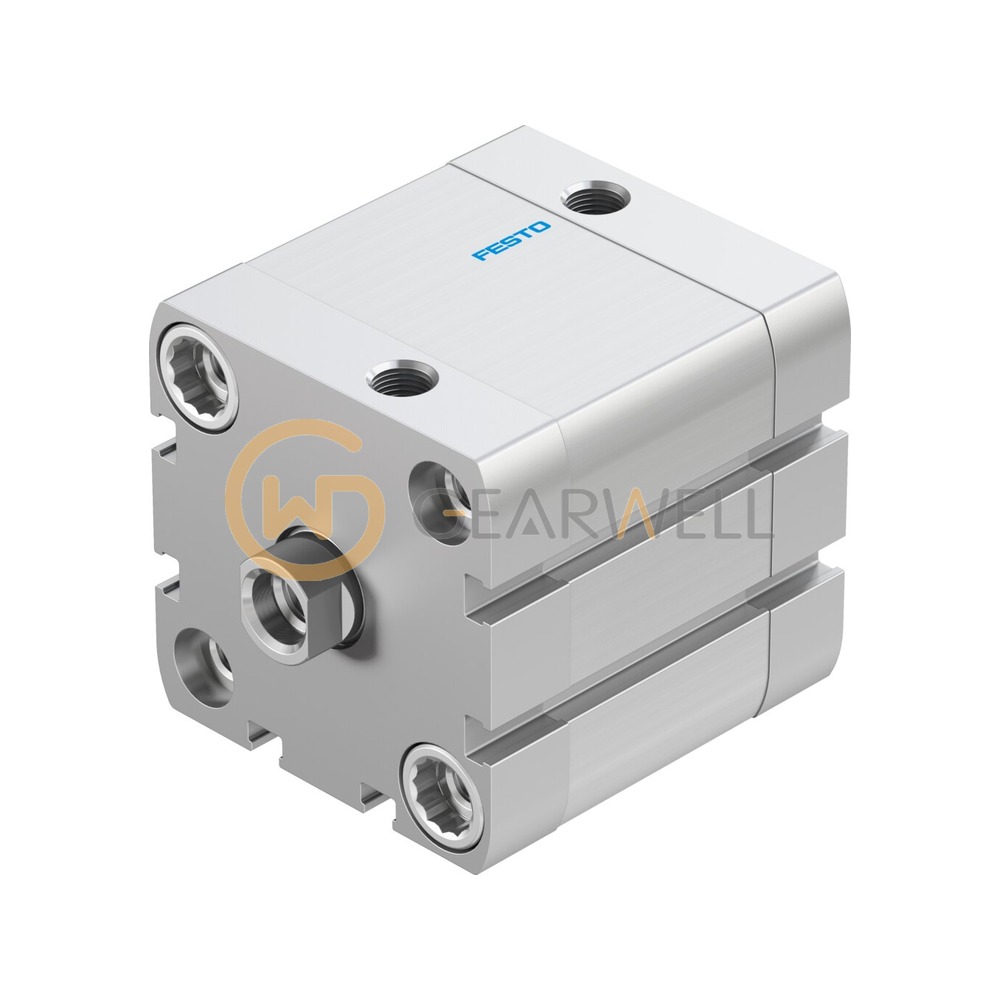

FESTO ADN-50-25-I-P-A ADN Compact Cylinder
- Brand
- FESTO
- Model
- ADN-50-25-I-P-A
- GEARWELL SKU
- GWP-000009566
- Category
- Cylinders & Actuators
Key specifications
- Stroke
- 25 mm
- Product weight
- 617 g
- Piston diameter
- 50 mm
- Piston rod thread
- M10 (internal)
- Operating pressure
- 0.6...10 bar
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO ADN-50-25-I-P-A ADN Compact Cylinder |
|---|---|
| Brand | FESTO |
| Model | ADN-50-25-I-P-A |
| Category | Cylinders & Actuators |
| Stroke | 25 mm |
| Product weight | 617 g |
| Piston diameter | 50 mm |
| Piston rod thread | M10 (internal) |
| Operating pressure | 0.6...10 bar |
| Pneumatic connection | G1/8 |
| Theoretical force at 6 bar, advancing | 1178 N |
| Theoretical force at 6 bar, retracting | 1057 N |
