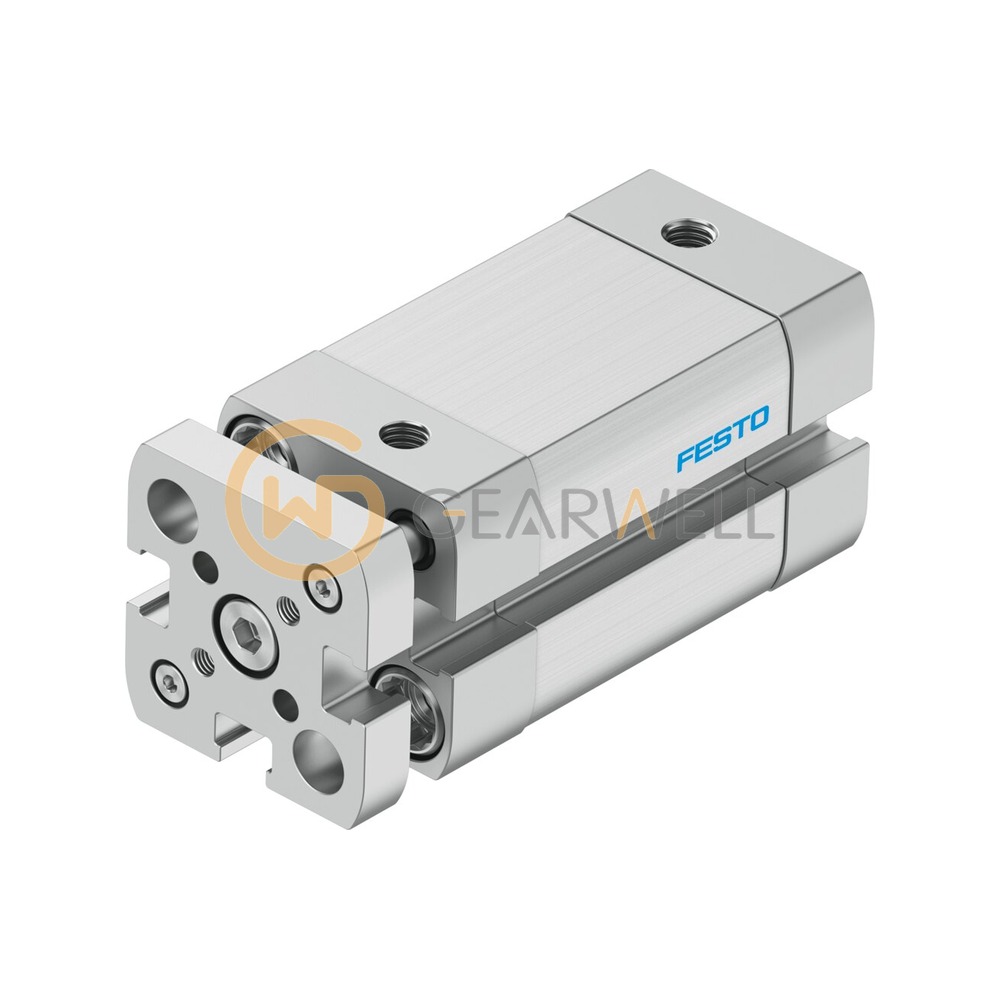

FESTO ADNGF-16-20-P-A Compact Cylinder
- Brand
- FESTO
- Model
- ADNGF-16-20-P-A
- GEARWELL SKU
- GWP-000011592
- Category
- Cylinders & Actuators
Key specifications
- Stroke
- 20 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Order code
- ADNGF-16-20-P-A
- Piston diameter
- 16 mm
- Position sensing
- Via proximity switch
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO ADNGF-16-20-P-A Compact Cylinder |
|---|---|
| Brand | FESTO |
| Model | ADNGF-16-20-P-A |
| Category | Cylinders & Actuators |
| Stroke | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Order code | ADNGF-16-20-P-A |
| Piston diameter | 16 mm |
| Position sensing | Via proximity switch |
| Festo part number | 554215 |
| Mode of operation | Double-acting |
| Operating pressure | 1.5 ... 10 bar |
| Ambient temperature | -20 ... 80 °C |
| Protection against torsion/guide | Guide rod with yoke |
