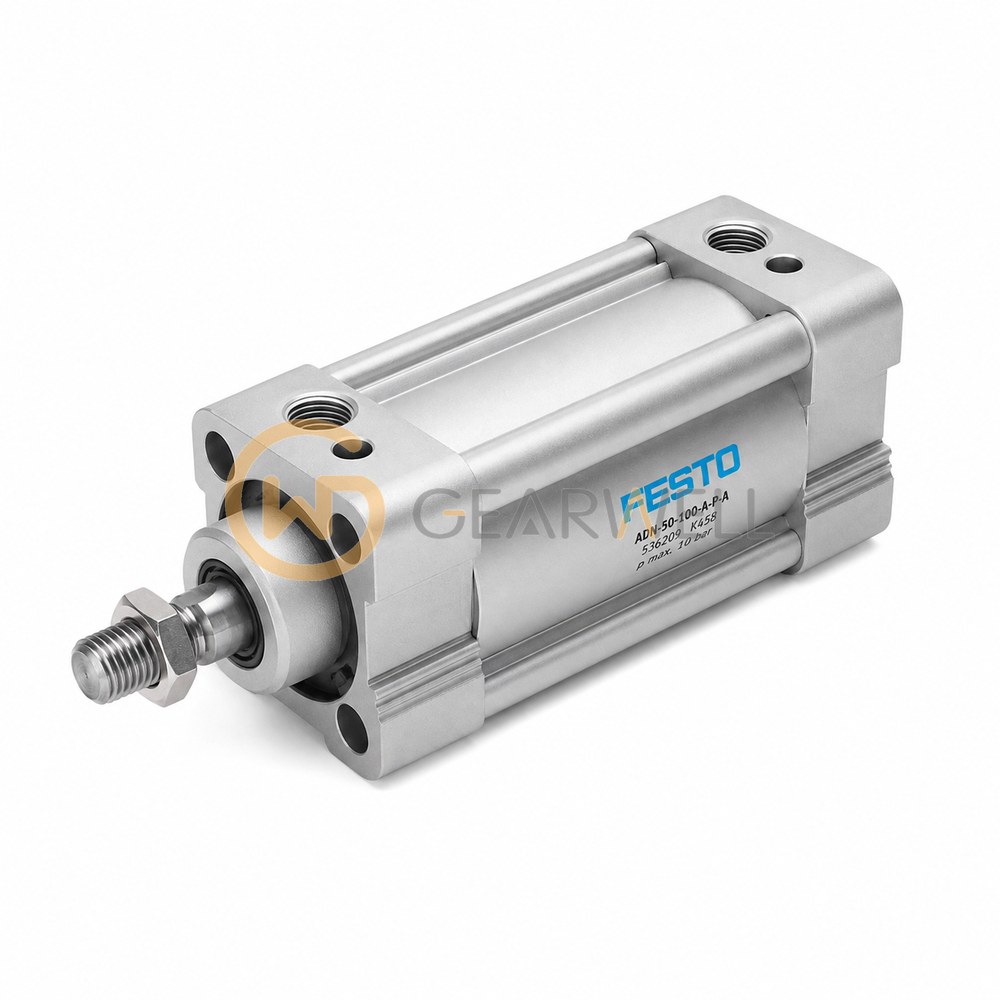

FESTO ADN-50-100-A-P-A Compact cylinder
- Brand
- FESTO
- Model
- ADN-50-100-A-P-A
- GEARWELL SKU
- GWP-000003655
- Category
- Industrial Automation Parts
Key specifications
- Stroke
- 100 mm
- Standard
- ISO 21287
- Product type
- Compact cylinder
- Piston diameter
- 50 mm
- Position sensing
- For proximity sensor
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
FESTO ADN-50-100-A-P-A is an ADN series double-acting compact cylinder with a 50 mm piston diameter and 100 mm stroke. Confirm the complete type code, mounting and application requirements when requesting a quote.
Technical reference
| Product name | FESTO ADN-50-100-A-P-A Compact cylinder |
|---|---|
| Brand | FESTO |
| Model | ADN-50-100-A-P-A |
| Category | Industrial Automation Parts |
| Stroke | 100 mm |
| Standard | ISO 21287 |
| Product type | Compact cylinder |
| Piston diameter | 50 mm |
| Position sensing | For proximity sensor |
| Mode of operation | Double-acting |
| Mounting position | Any |
| Operating pressure | 0.6–10 bar |
