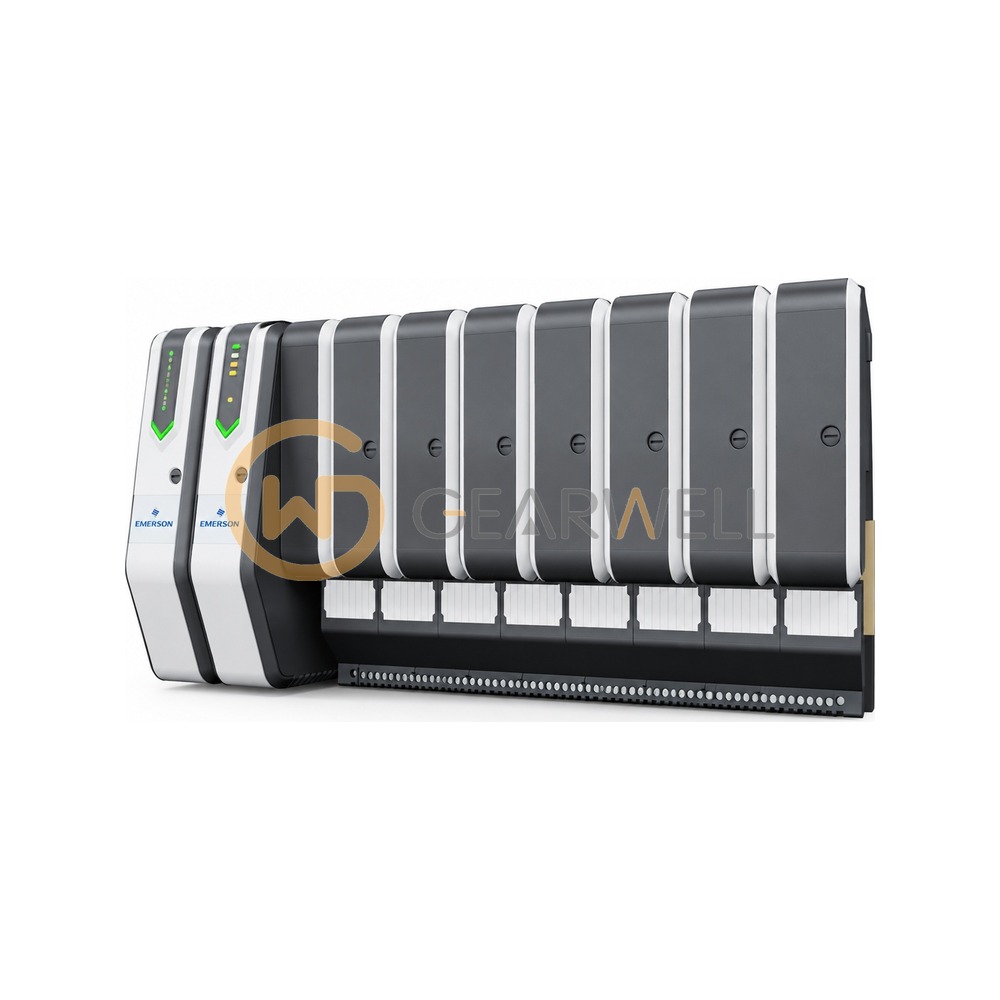

EMERSON VE4003S2B1 DeltaV M-series 8-Channel HART AI Card
- Brand
- EMERSON
- Model
- VE4003S2B1
- GEARWELL SKU
- GWP-000033903
- Category
- PLCs & I/O
Key specifications
- Channels
- 8, 4-20 mA with HART
- Isolation
- each channel optically isolated, tested to 1500 V DC
- Resolution
- 16-bit A/D
- Product line
- DeltaV M-series
- Protection rating
- IP20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EMERSON VE4003S2B1 DeltaV M-series 8-Channel HART AI Card |
|---|---|
| Brand | EMERSON |
| Model | VE4003S2B1 |
| Category | PLCs & I/O |
| Channels | 8, 4-20 mA with HART |
| Isolation | each channel optically isolated, tested to 1500 V DC |
| Resolution | 16-bit A/D |
| Product line | DeltaV M-series |
| Protection rating | IP20 |
| Field circuit power | 300 mA maximum at 24 V DC |
| Ordering description | AI Card 8 ch, 4-20 mA HART + Standard I/O Termination Block |
| Operating temperature | -40 to 70 °C |
| Accuracy over temperature range | 0.1% of span |
