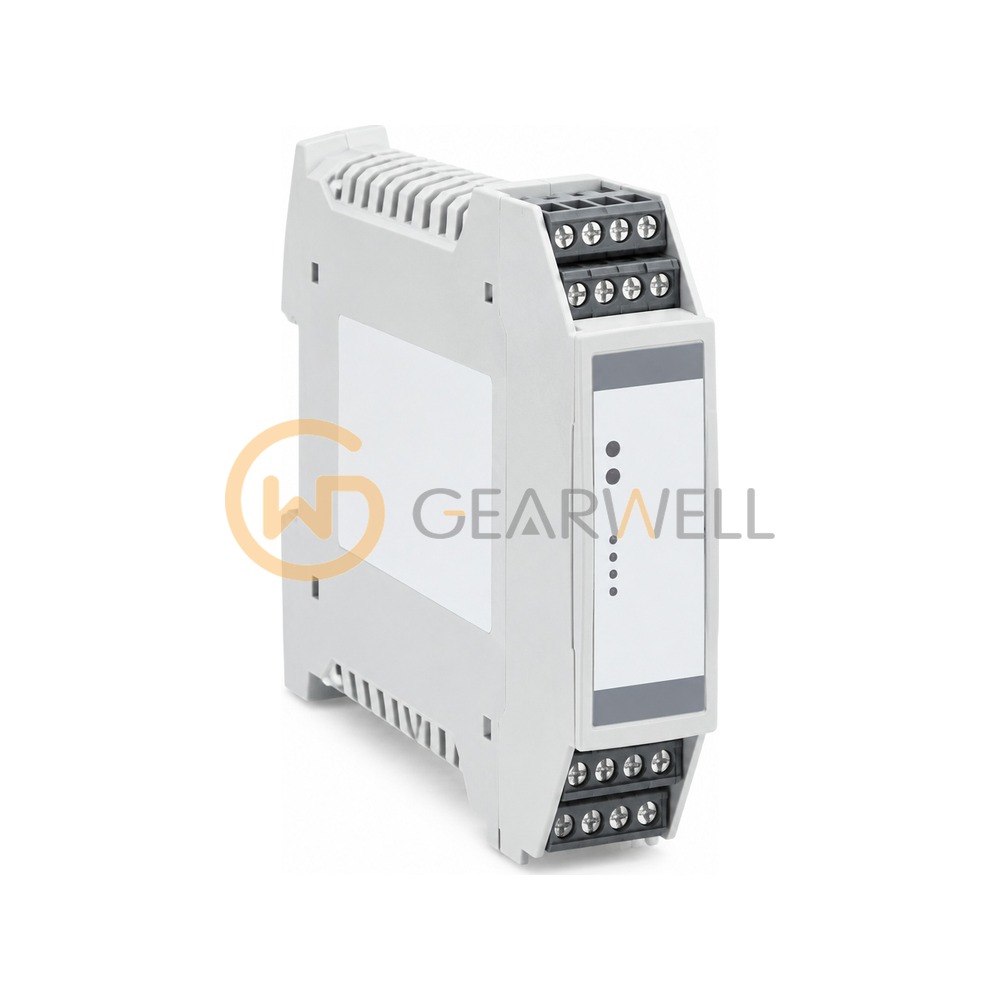

EATON MTL5053 MTL5000 Fieldbus Isolator / Power Supply
- Brand
- EATON
- Model
- MTL5053
- GEARWELL SKU
- GWP-000033739
- Category
- Industrial Communication
Key specifications
- Evidence
- Eaton datasheet EPS5053 Rev 2 (archived official PDF, mtl-inst.com)
- Function
- Isolator/power supply for 31.25 kbit/s (H1) fieldbus
- Isolation
- 250 V ac between safe-area, hazardous-area circuits and power supply
- DC impedance
- 105 ±3% Ω
- Supply voltage
- 20 to 35 V dc
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EATON MTL5053 MTL5000 Fieldbus Isolator / Power Supply |
|---|---|
| Brand | EATON |
| Model | MTL5053 |
| Category | Industrial Communication |
| Evidence | Eaton datasheet EPS5053 Rev 2 (archived official PDF, mtl-inst.com) |
| Function | Isolator/power supply for 31.25 kbit/s (H1) fieldbus |
| Isolation | 250 V ac between safe-area, hazardous-area circuits and power supply |
| DC impedance | 105 ±3% Ω |
| Supply voltage | 20 to 35 V dc |
| Field device location | Zone 0, IIC, T4-6 hazardous area if suitably certified |
| Maximum output current | 80 mA |
| Power requirement (80 mA load) | 135 mA typical at 24 V |
| Hazardous-area output voltage | 18.4 ±2% V |
| Safety description (terminals 1-2) | 22 V, 102 Ω, 216 mA; Um = 250 V rms or dc |
