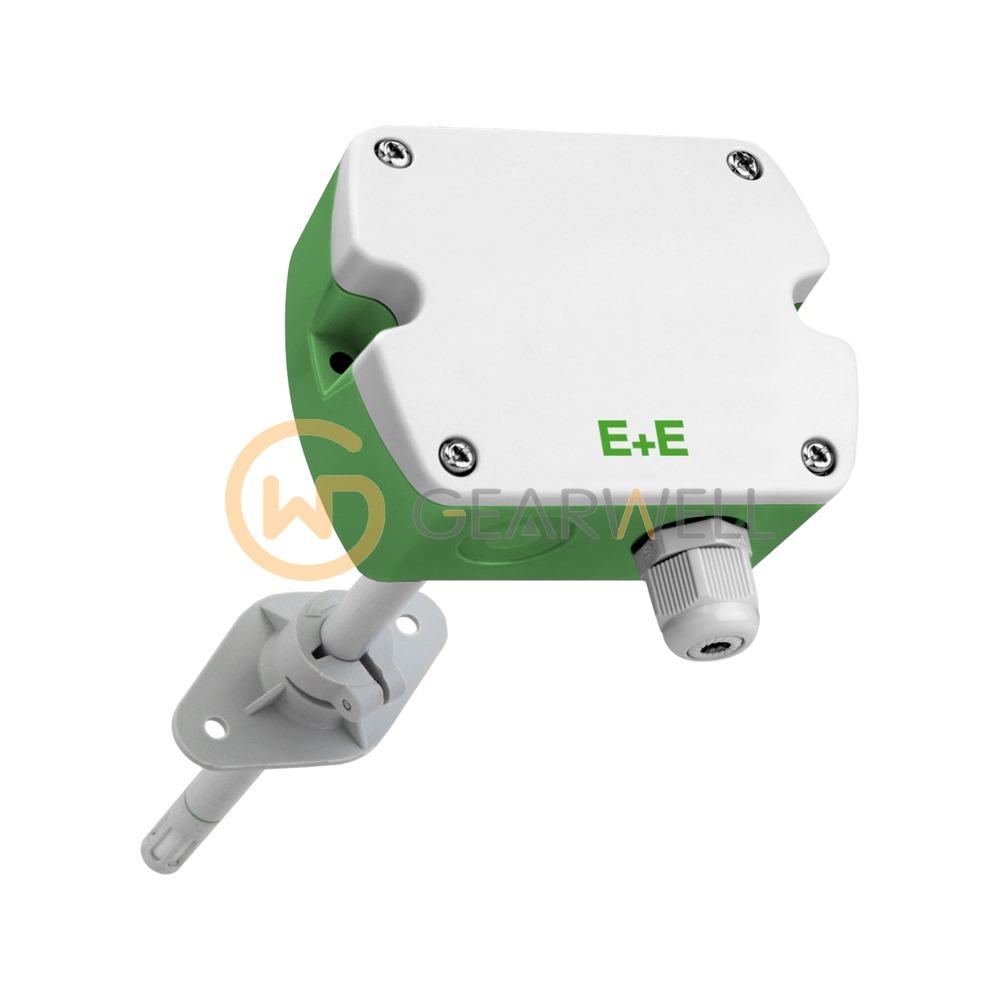

E+E Elektronik EE160-M1T2A6 EE160 Duct Humidity/Temp. Transmitter
- Brand
- E+E Elektronik
- Model
- EE160-M1T2A6
- GEARWELL SKU
- GWP-000017032
- Category
- Pressure, Flow & Temperature
Key specifications
- Type (T2)
- Duct mount
- Model (M1)
- RH + T
- Enclosure
- Polycarbonate, UL94 V-0, IP65 / NEMA 4X
- Output (A6)
- 4-20 mA (2-wire), RL ≤ 500 Ω
- Order code
- EE160-M1T2A6
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | E+E Elektronik EE160-M1T2A6 EE160 Duct Humidity/Temp. Transmitter |
|---|---|
| Brand | E+E Elektronik |
| Model | EE160-M1T2A6 |
| Category | Pressure, Flow & Temperature |
| Type (T2) | Duct mount |
| Model (M1) | RH + T |
| Enclosure | Polycarbonate, UL94 V-0, IP65 / NEMA 4X |
| Output (A6) | 4-20 mA (2-wire), RL ≤ 500 Ω |
| Order code | EE160-M1T2A6 |
| Supply (4-20 mA) | (10 V + RL x 20 mA) < V+ < 35 V DC |
| Electrical connection | Screw terminals max. 1.5 mm², cable gland M16x1.5 |
| Operating temperature (without display) | -40...+60 °C |
