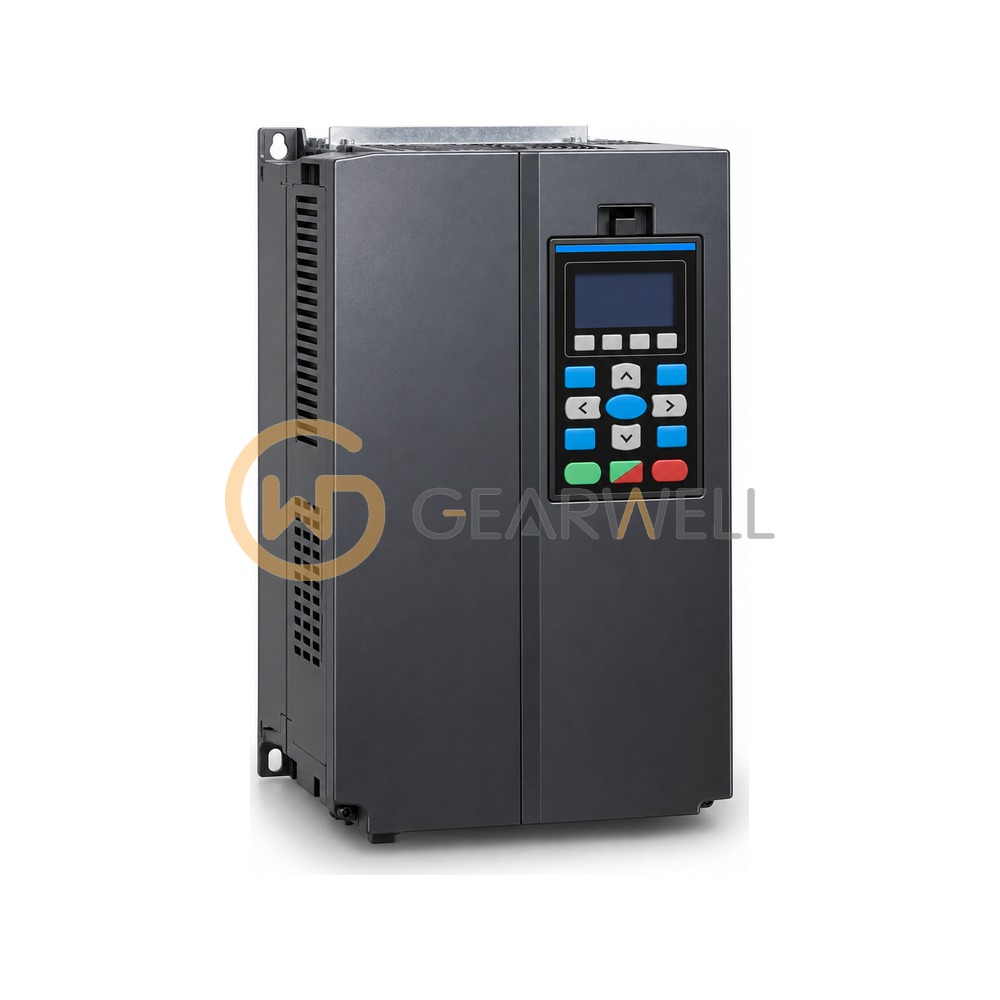

DELTA VFD750C23A-21 C2000 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD750C23A-21
- GEARWELL SKU
- GWP-000013175
- Category
- Variable Frequency Drives
Key specifications
- Frame
- E2
- Protection
- IP20 / NEMA 1 (-21)
- Rated input voltage
- 3Ø, 200 ~ 240 VAC (-15% ~ +10%), 50 / 60 Hz
- HD rated input current
- 245 A
- HD rated output current
- 255 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD750C23A-21 is a C2000 Plus series vector control AC motor drive for a 230 V 3-phase supply (200 to 240 VAC, 50/60 Hz), rated 255 A output current in heavy duty for motors up to 75 kW (100 HP), built in frame E. In super heavy duty it delivers 215 A for 55 kW (75 HP) motors, and heavy-duty overload is 150% of rated current for 1 minute in every 5 minutes and 180% for 3 seconds in every 30 seconds. A DC reactor is built in, while the braking chopper and EMC filter are optional. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with a standard conduit box. Version letter A denotes a wall-mount unit, and the drive is forced-air cooled.
Technical reference
| Product name | DELTA VFD750C23A-21 C2000 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD750C23A-21 |
| Category | Variable Frequency Drives |
| Frame | E2 |
| Protection | IP20 / NEMA 1 (-21) |
| Rated input voltage | 3Ø, 200 ~ 240 VAC (-15% ~ +10%), 50 / 60 Hz |
| HD rated input current | 245 A |
| HD rated output current | 255 A |
| Heavy duty (HD) motor power | 75 kW |
| Super heavy duty (SHD) motor power / rated output current | 55 kW / 215 A |
