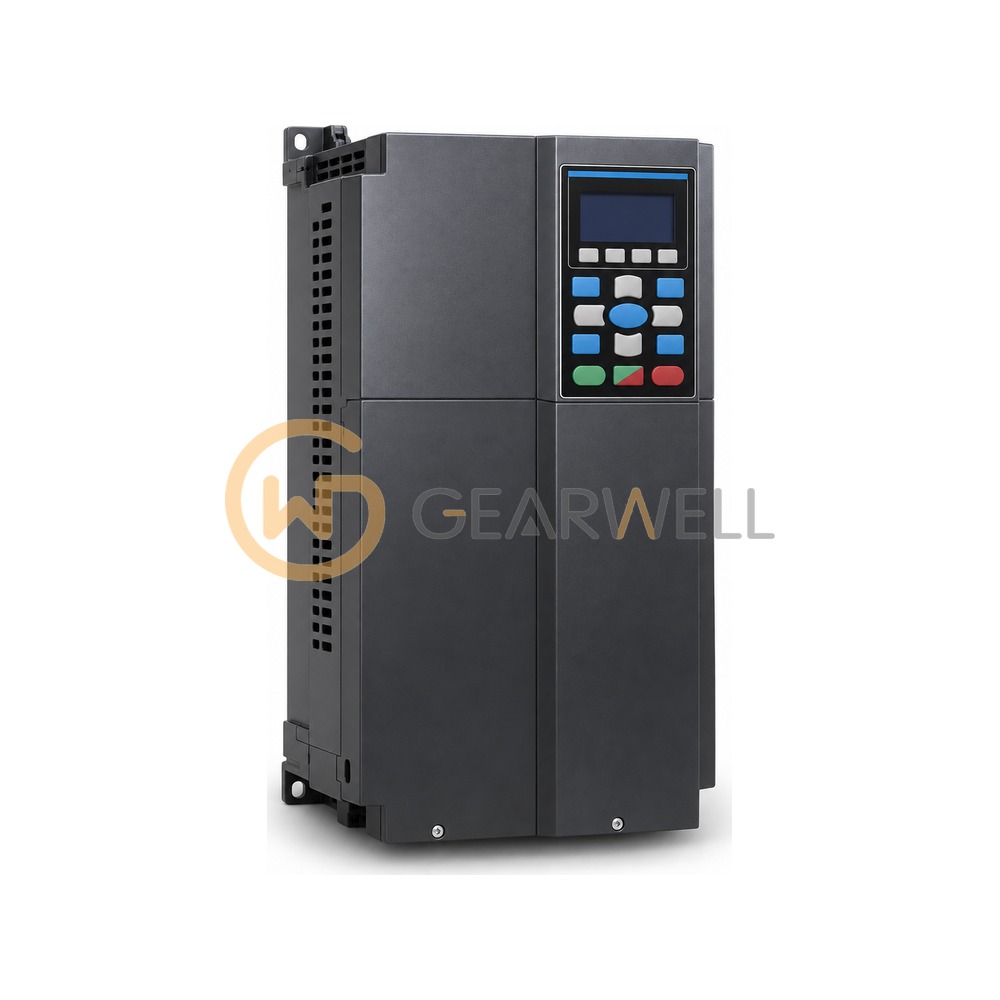

DELTA VFD750CP43B-21 CP2000 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD750CP43B-21
- GEARWELL SKU
- GWP-000013178
- Category
- Variable Frequency Drives
Key specifications
- Frame
- D
- Rated voltage / frequency
- 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz
- Input current (Light Duty)
- 150 A
- Rated output current (Light Duty)
- 150 A
- Rated output capacity (Light Duty)
- 120 kVA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD750CP43B-21 is a CP2000 series fan and pump vector control AC motor drive for a 460 V 3-phase supply (380 to 480 VAC, 50/60 Hz), rated 150 A output current in light duty for motors up to 75 kW (100 HP), built in frame D. In normal duty it delivers 110 A for 55 kW (75 HP) motors; light-duty overload is 120% of rated current for 1 minute in every 5 minutes, and normal duty adds 160% for 3 seconds in every 25 seconds. A 3% DC choke is built in, while the braking chopper and EMC filter are optional. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with a conduit box. Version letter B denotes a wall-mount unit.
Technical reference
| Product name | DELTA VFD750CP43B-21 CP2000 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD750CP43B-21 |
| Category | Variable Frequency Drives |
| Frame | D |
| Rated voltage / frequency | 3-phase, 380 ~ 480 VAC (-15% ~ +10%), 50/60 Hz |
| Input current (Light Duty) | 150 A |
| Rated output current (Light Duty) | 150 A |
| Rated output capacity (Light Duty) | 120 kVA |
| Applicable motor output (Light Duty) | 75 kW |
| Rated output current / motor output (Normal Duty) | 110 A / 55 kW |
