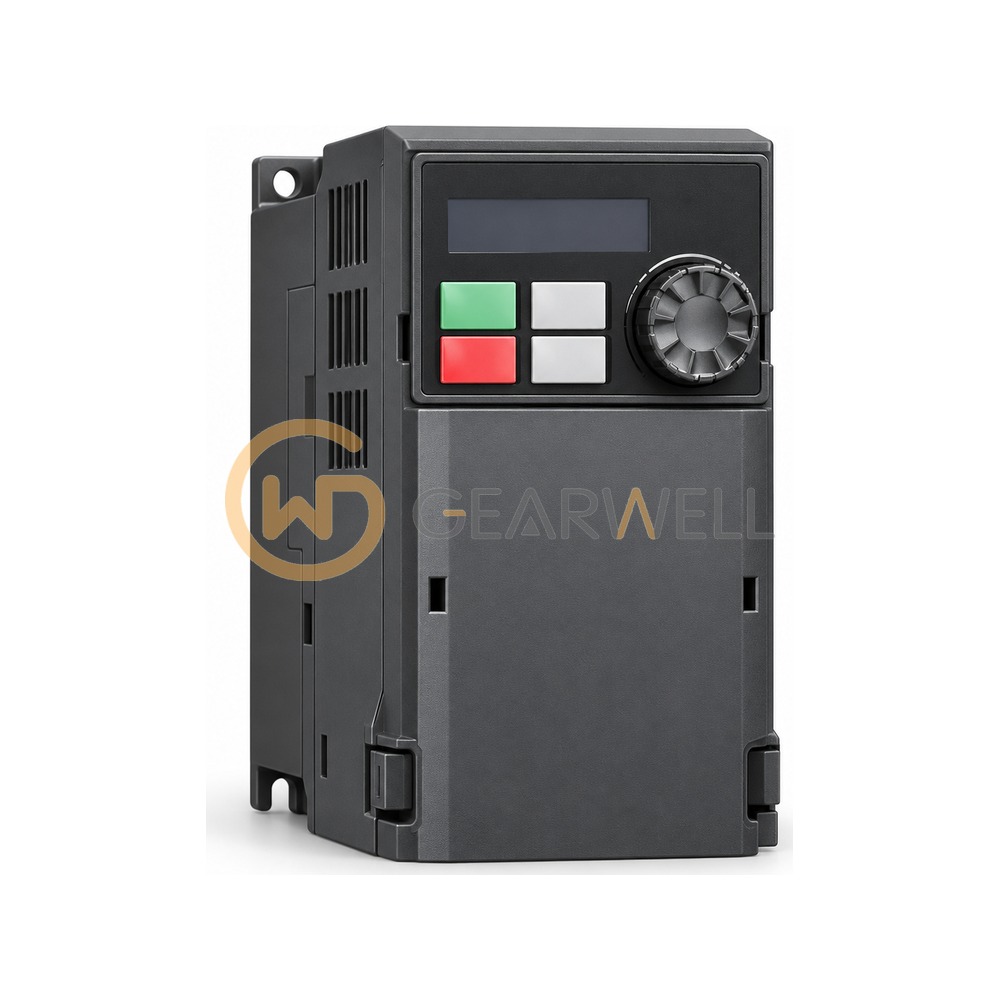

DELTA VFD60AMH43ANSAA MH300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD60AMH43ANSAA
- GEARWELL SKU
- GWP-000013172
- Category
- Variable Frequency Drives
Key specifications
- Frame
- G
- Size W x H (x D)
- 250 x 400 x 225 mm
- Built-in EMC filter
- No
- Applicable motor output
- 30 kW
- Rated voltage / frequency
- 3-phase AC 380 V ~ 480 V (-15% ~ +10%), 50 / 60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD60AMH43ANSAA is a Delta MH300 series high performance compact AC motor drive for 460 V three-phase supply, sized for a 30 kW (40 HP) motor in heavy duty. The code VFD60AMH43ANSAA stands for a rated output current of 60 A in heavy duty mode (150% for 60 seconds), an IP20 enclosure, no built-in EMC filter, integrated Safe Torque Off and the standard model type. The drive is housed in frame size G with fan cooling. MH300 drives run induction and permanent magnet motors with V/F, SVC and FOC control and an output range up to 599 Hz.
Technical reference
| Product name | DELTA VFD60AMH43ANSAA MH300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD60AMH43ANSAA |
| Category | Variable Frequency Drives |
| Frame | G |
| Size W x H (x D) | 250 x 400 x 225 mm |
| Built-in EMC filter | No |
| Applicable motor output | 30 kW |
| Rated voltage / frequency | 3-phase AC 380 V ~ 480 V (-15% ~ +10%), 50 / 60 Hz |
| Rated output current (Heavy Duty) | 60 A |
| Rated output current (Normal Duty) | 69 A |
