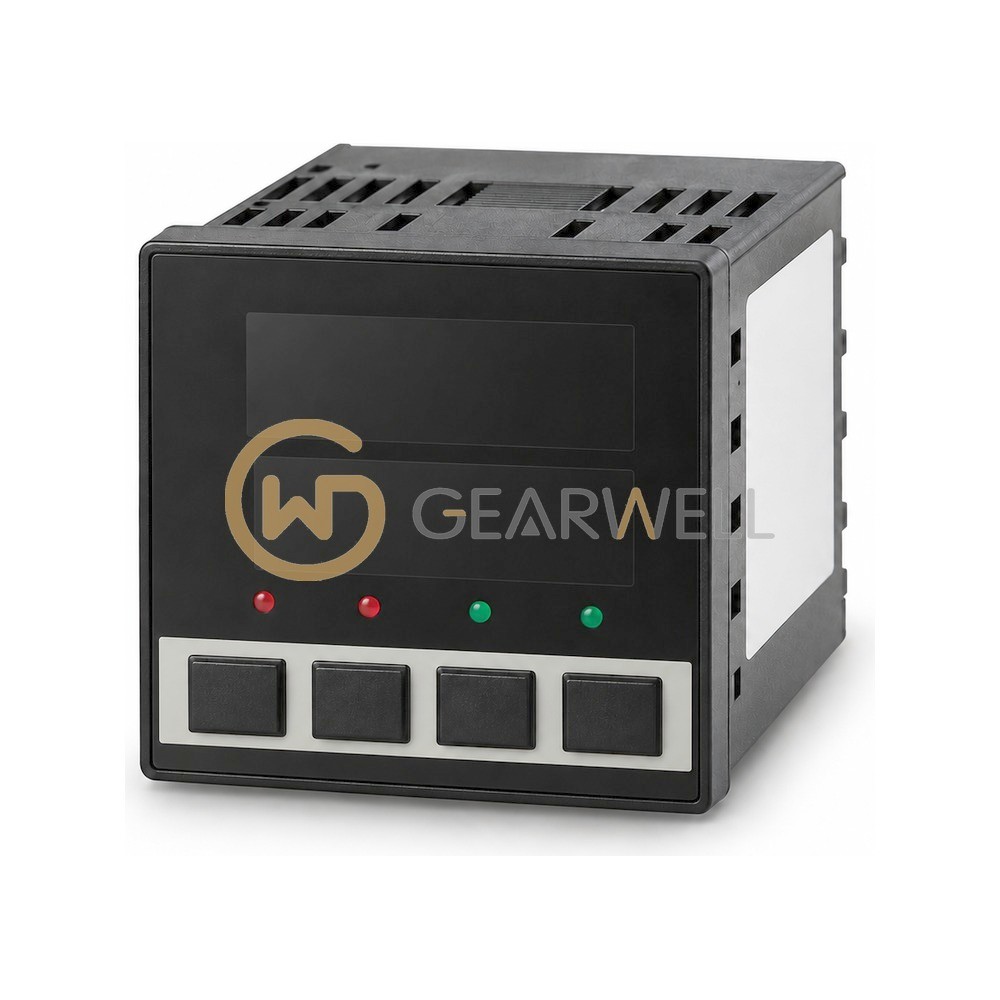

DELTA DTB4848CR DTB series Temperature Controller
- Brand
- DELTA
- Model
- DTB4848CR
- GEARWELL SKU
- GWP-000012830
- Category
- Controls & Thermostats
Key specifications
- Panel size
- 1/16 DIN 48 × 48 mm
- Communication
- RS-485 digital communication, 2,400 ~ 38,400bps, Modbus ASCII / RTU
- Control methods
- PID, programmable PID, On / Off, Manual
- IP rating (panel)
- IP65
- Output 1 (code C)
- DC current, 4 ~ 20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DELTA DTB4848CR DTB series Temperature Controller |
|---|---|
| Brand | DELTA |
| Model | DTB4848CR |
| Category | Controls & Thermostats |
| Panel size | 1/16 DIN 48 × 48 mm |
| Communication | RS-485 digital communication, 2,400 ~ 38,400bps, Modbus ASCII / RTU |
| Control methods | PID, programmable PID, On / Off, Manual |
| IP rating (panel) | IP65 |
| Output 1 (code C) | DC current, 4 ~ 20 mA |
| Output 2 (code R) | Relay, 250 VAC, 5 A (SPST for 1/16 DIN size) |
| Power supply (no suffix) | AC 100 ~ 240 V |
| Input temperature sensors | Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK; Platinum RTD: Pt100, JPt100; Analog input: 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA, 0 ~ 50 mV |
