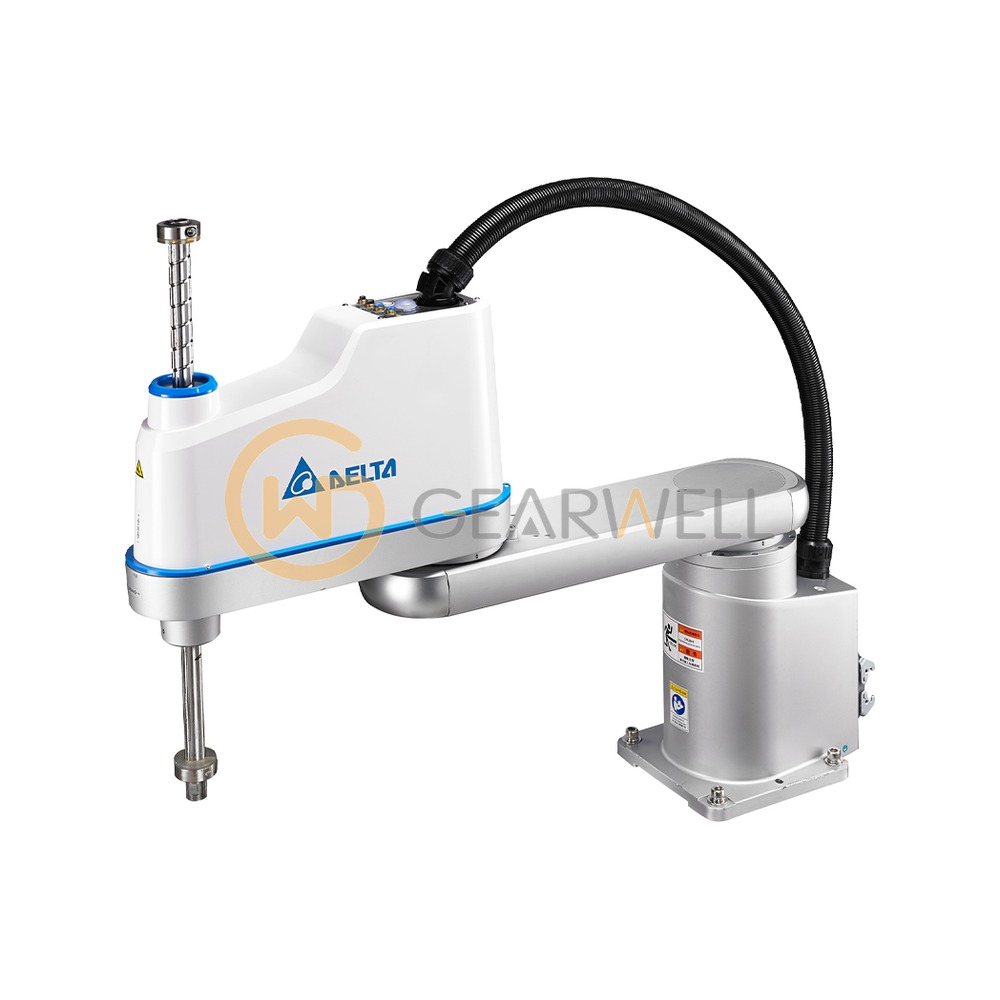

DELTA DRS80LMOS1BN002 DRS80LM series SCARA SCARA Robot
- Brand
- DELTA
- Model
- DRS80LMOS1BN002
- GEARWELL SKU
- GWP-000013857
- Category
- Servo Systems
Key specifications
- Weight
- 43 kg
- Controller
- DCS-1M00
- Number of axes
- 4
- J3 motion range
- 200 mm (420 mm)*3 models with specific z-axis length
- Max. working range
- 800 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta DRS80LMOS1BN002 is a Delta DRS80LM series four-axis SCARA robot with an 800 mm arm length and a rated / maximum payload of 10 kg / 22 kg. The J1 + J2 axes reach 8,820 mm/s with a 0.42 s standard cycle time and a repeatability of 0.025 mm, and the permitted load inertia is 0.05 kg*m^2 rated and 0.45 kg*m^2 maximum. The O in the code selects the optional Z-axis stroke; the series lists 200 mm as standard and 420 mm as an option. The robot is rated IP20 and runs with the DCS-1M00 controller, supplied with a 3 m cable.
Technical reference
| Product name | DELTA DRS80LMOS1BN002 DRS80LM series SCARA SCARA Robot |
|---|---|
| Brand | DELTA |
| Model | DRS80LMOS1BN002 |
| Category | Servo Systems |
| Weight | 43 kg |
| Controller | DCS-1M00 |
| Number of axes | 4 |
| J3 motion range | 200 mm (420 mm)*3 models with specific z-axis length |
| Max. working range | 800 mm |
| Rated / max. payload | 10 / 22 kg |
| Repeatability (J1 + J2) | ± 0.025 mm |
| Standard cycle time | 0.42 s |
