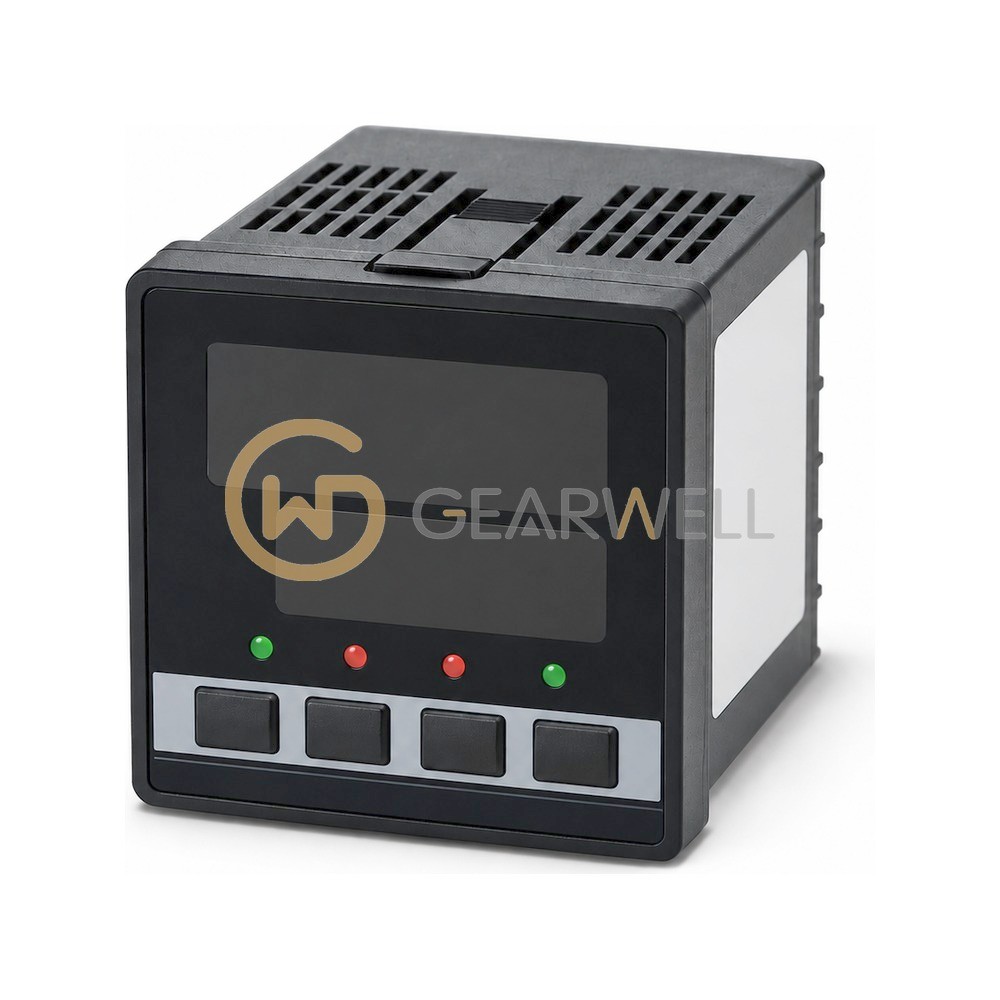

DELTA DTA4848C1 DTA series Temperature Controller
- Brand
- DELTA
- Model
- DTA4848C1
- GEARWELL SKU
- GWP-000012829
- Category
- Controls & Thermostats
Key specifications
- Panel size
- 1/16 DIN 48 × 48 mm
- Power supply
- 100 ~ 240 VAC, 50 / 60 Hz
- Output (code C)
- DC Current, 4 ~ 20 mA
- Control methods
- PID, On / Off, Manual
- IP rating (panel)
- IP65
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DELTA DTA4848C1 DTA series Temperature Controller |
|---|---|
| Brand | DELTA |
| Model | DTA4848C1 |
| Category | Controls & Thermostats |
| Panel size | 1/16 DIN 48 × 48 mm |
| Power supply | 100 ~ 240 VAC, 50 / 60 Hz |
| Output (code C) | DC Current, 4 ~ 20 mA |
| Control methods | PID, On / Off, Manual |
| IP rating (panel) | IP65 |
| Power consumption | Max. 5 VA |
| Communication (code 1) | RS-485 communication (Modbus ASCII / RTU 2,400 ~ 38,400 bps) |
| Input temperature sensors | Thermocouple: K, J, T, E, N, R, S, B, U, L, TXK; Platinum RTD: Pt100, JPt100 |
