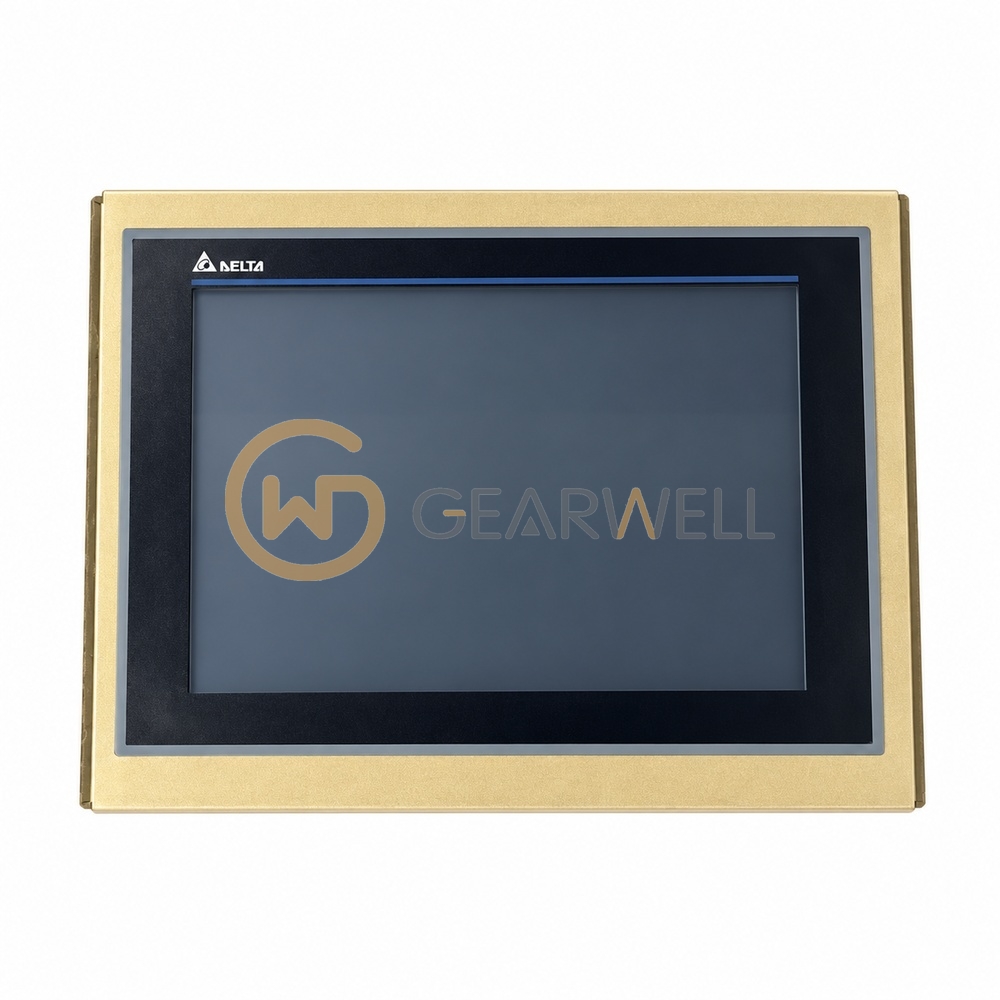

DELTA DOP-115WX HMI Touch Panel
- Brand
- DELTA
- Model
- DOP-115WX
- GEARWELL SKU
- GWP-000006491
- Category
- HMIs & Industrial PCs
Key specifications
- Display type
- TFT LCD
- Display diagonal
- 15 in
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta DOP-115WX is a DOP 100 Series Advanced Narrow Frame Type HMI touch panel with a 15" TFT LCD at 1024 x 768 pixels (XGA) and 24-bit color. It has a dual-core 1GHz processor, 8GB flash ROM and 1GB DDR3 RAM. Interfaces are two 100 Mbps Ethernet ports, mini USB slave, USB host, one SD slot and four serial ports (COM1 and COM3 RS-232/RS-485, COM2 and COM4 RS-422/RS-485). It runs on DC +24V (max. 21.12 W), has an IP65 / NEMA4 front, and measures 387.7 x 295.7 x 63.5 mm with a weight of 3200g.
Technical reference
| Product name | DELTA DOP-115WX HMI Touch Panel |
|---|---|
| Brand | DELTA |
| Model | DOP-115WX |
| Category | HMIs & Industrial PCs |
| Display type | TFT LCD |
| Display diagonal | 15 in |
