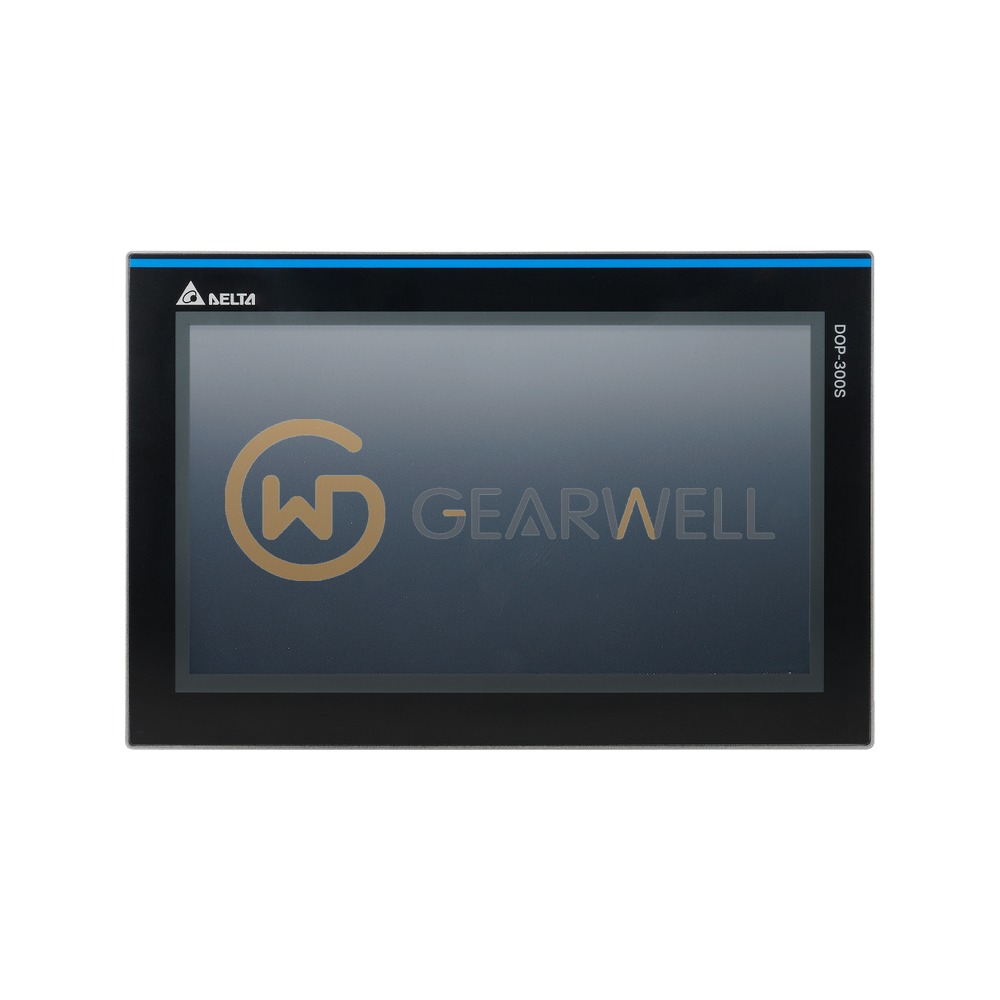

Delta DOP-3S10S3E2 DOP-300 HMI Touch Panel
- Brand
- DELTA
- Model
- DOP-3S10S3E2
- GEARWELL SKU
- GWP-000007438
- Category
- HMIs & Industrial PCs
Key specifications
- CPU
- ARM Cortex-A7 Dual Core 1.2GHz
- Ethernet
- 2 Port, 10/100 Mbps Auto detection (with built-in isolated circuits)
- Brightness
- 400 cd/㎡ (Typ.)
- Resolution
- 1,024 x 600 pixels
- Display Type
- 10.1" TFT LCD (24 bits)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Delta DOP-3S10S3E2 DOP-300 HMI Touch Panel |
|---|---|
| Brand | DELTA |
| Model | DOP-3S10S3E2 |
| Category | HMIs & Industrial PCs |
| CPU | ARM Cortex-A7 Dual Core 1.2GHz |
| Ethernet | 2 Port, 10/100 Mbps Auto detection (with built-in isolated circuits) |
| Brightness | 400 cd/㎡ (Typ.) |
| Resolution | 1,024 x 600 pixels |
| Display Type | 10.1" TFT LCD (24 bits) |
| Flash ROM / RAM | 512 Mbytes / 512 Mbytes |
| Mounting Dimensions (W x H) | 255 x 170 mm |
| Serial Communication Port | COM1: RS-232 (supports flow control) COM2: RS-232 / RS-485 COM3: RS-422 / RS-485 |
