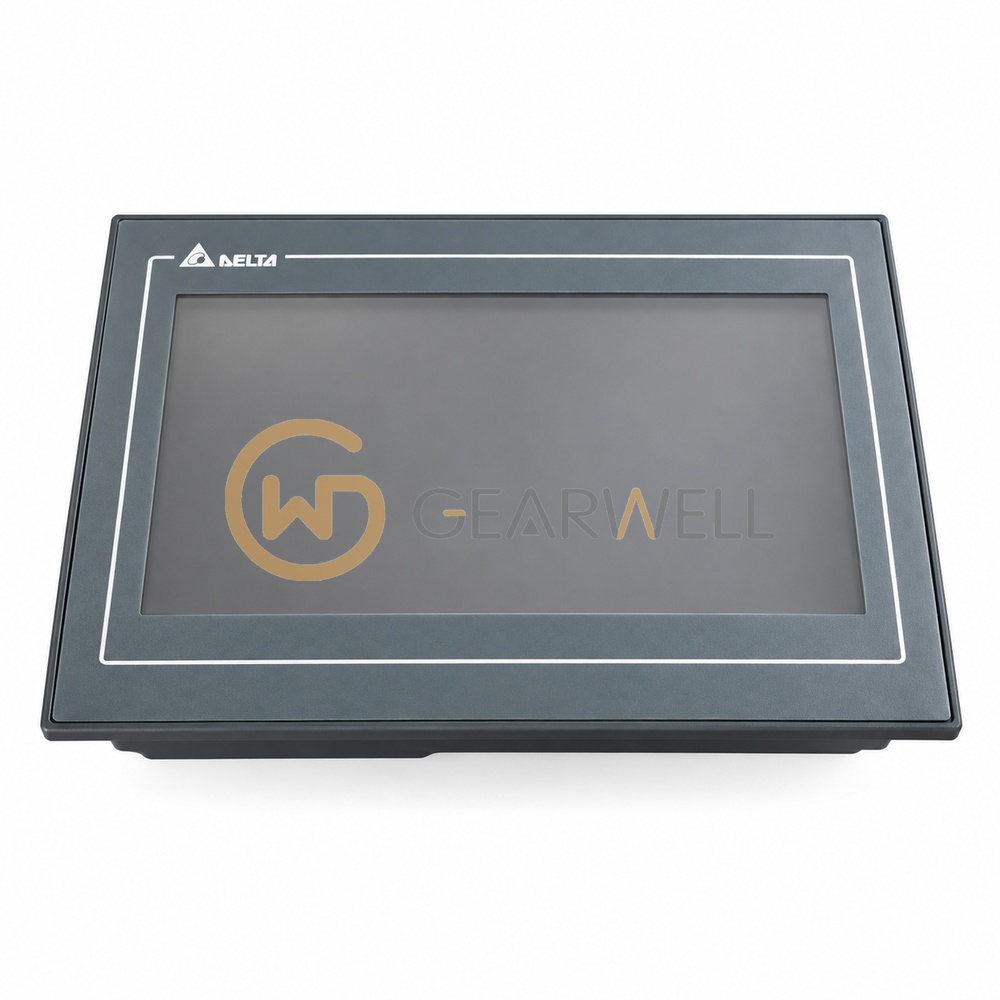

DELTA DOP-110IS HMI Touch Panel
- Brand
- DELTA
- Model
- DOP-110IS
- GEARWELL SKU
- GWP-000006511
- Category
- HMIs & Industrial PCs
Key specifications
- Display diagonal
- 10.1 in
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta DOP-110IS is a DOP 100 Series Standard Ethernet Type (3 COM) HMI touch panel with a 10.1" TFT LCD at 1024 x 600 pixels (WSVGA) and 65,536 colors. It uses an ARM Cortex-A8 (800MHz) processor with 256 Mbytes flash ROM and 256 Mbytes RAM. Interfaces are one 10/100 Mbps Ethernet port, USB slave and USB host, an SD slot, COM1 RS-232, COM2 RS-232/RS-485 and COM3 RS-232/RS-422/RS-485. It runs on DC +24V (max. 9.6 W), has an IP65 / NEMA4 front, and measures 272.6 x 200.6 x 54 mm with a weight of 1130 g.
Technical reference
| Product name | DELTA DOP-110IS HMI Touch Panel |
|---|---|
| Brand | DELTA |
| Model | DOP-110IS |
| Category | HMIs & Industrial PCs |
| Display diagonal | 10.1 in |
