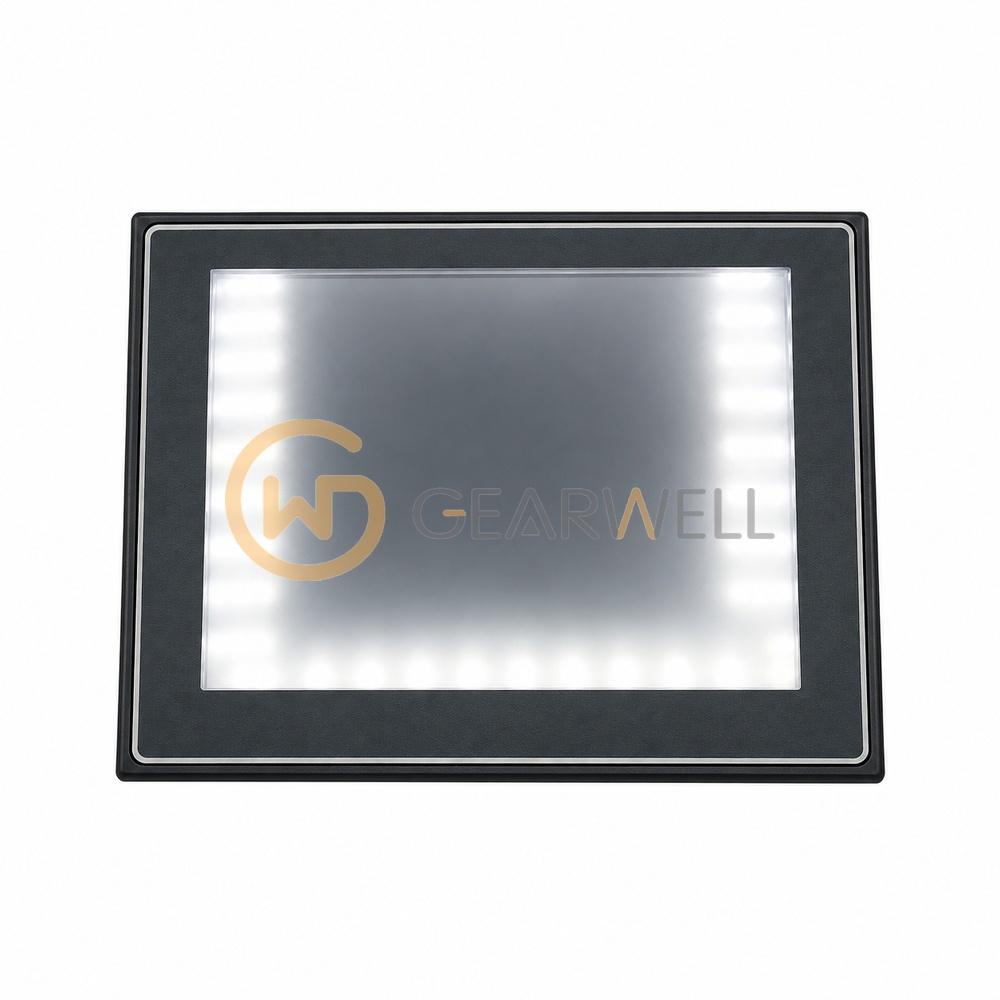

DELTA DOP-110CS HMI Touch Panel
- Brand
- DELTA
- Model
- DOP-110CS
- GEARWELL SKU
- GWP-000006512
- Category
- HMIs & Industrial PCs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta DOP-110CS is a DOP 100 Series Standard General Type HMI touch panel with a 10" TFT LCD at 1024 x 600 pixels (WSVGA) and 65,536 colors. It uses an ARM Cortex-A8 (800MHz) processor with 256 Mbytes flash ROM and 256 Mbytes RAM. Interfaces are USB slave and USB host plus three serial ports: COM1 RS-232, COM2 RS-232/RS-485 and COM3 RS-422/RS-485. It runs on DC +24V (max. 10.4 W), has an IP65 / NEMA4 front, and measures 272 x 200 x 61 mm with a weight of 1330g.
Technical reference
| Product name | DELTA DOP-110CS HMI Touch Panel |
|---|---|
| Brand | DELTA |
| Model | DOP-110CS |
| Category | HMIs & Industrial PCs |
