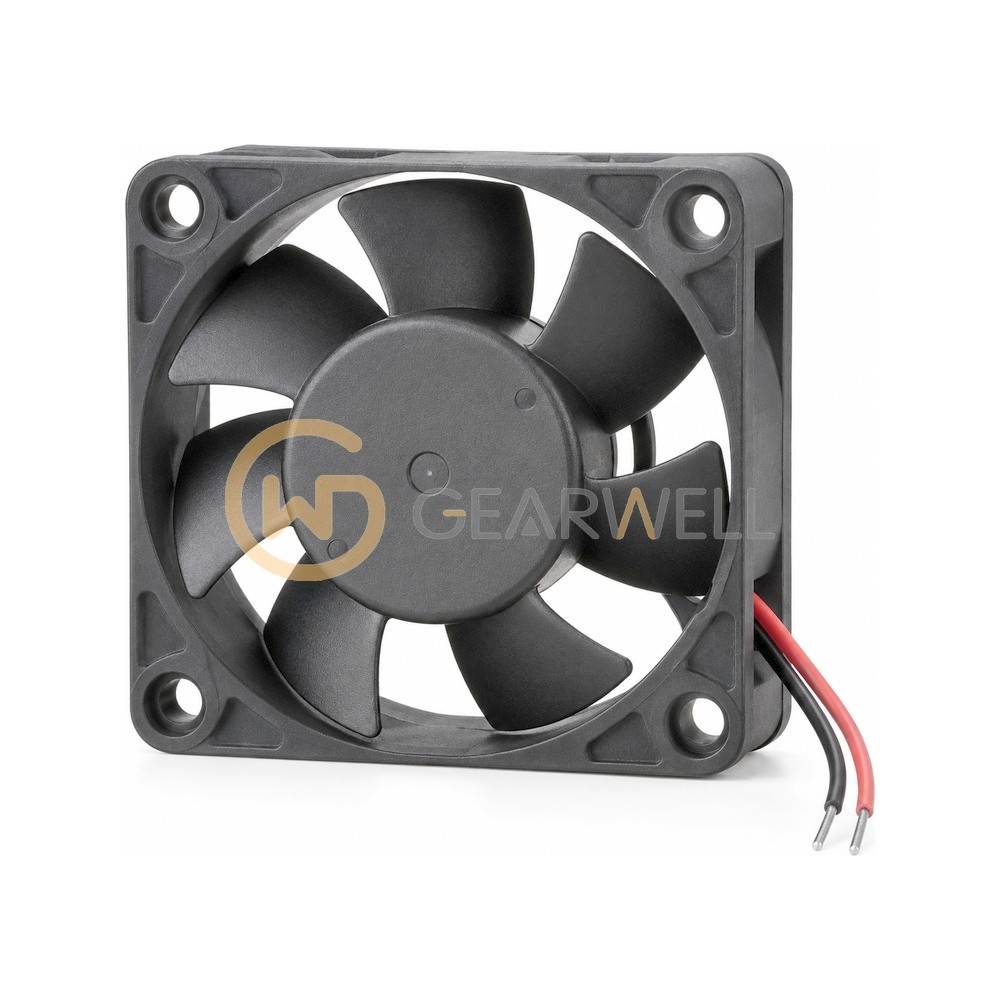

DELTA AFB0412SHB-T500 DC brushless axial fan
- Brand
- DELTA
- Model
- AFB0412SHB-T500
- GEARWELL SKU
- GWP-000013477
- Category
- Compressors & Fans
Key specifications
- Speed
- 11000 RPM
- Input power
- 3.00 (max. 4.20) W
- Input current
- 0.25 (max. 0.35) A
- Rated voltage
- 12 VDC
- Operation voltage
- 7.0 - 13.8 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta AFB0412SHB-T500 is a Delta AFB series DC brushless axial fan measuring 40 x 40 x 15 mm, rated 12 VDC with an operating range of 7.0 to 13.8 VDC. It draws 0.25 A (3.00 W) and runs at 11000 RPM, moving 14.83 CFM (0.420 m3/min) at up to 0.601 inchH2O static pressure with 41.5 dB(A) noise. The fan has IP55 ingress protection, a plastic frame and blades, a ball bearing and 2 lead wires. It operates from -10 to +70 C, weighs 25.0 g and is rated for 70000 hours of life at 40 C.
Technical reference
| Product name | DELTA AFB0412SHB-T500 DC brushless axial fan |
|---|---|
| Brand | DELTA |
| Model | AFB0412SHB-T500 |
| Category | Compressors & Fans |
| Speed | 11000 RPM |
| Input power | 3.00 (max. 4.20) W |
| Input current | 0.25 (max. 0.35) A |
| Rated voltage | 12 VDC |
| Operation voltage | 7.0 - 13.8 VDC |
| Acoustical noise (avg.) | 41.5 (max. 46.5) dB(A) |
| Max. air pressure (at zero airflow) | 15.26 / 0.601 mmH2O / inchH2O |
| Max. air flow (at zero static pressure) | 0.420 / 14.83 m3/min / CFM |
