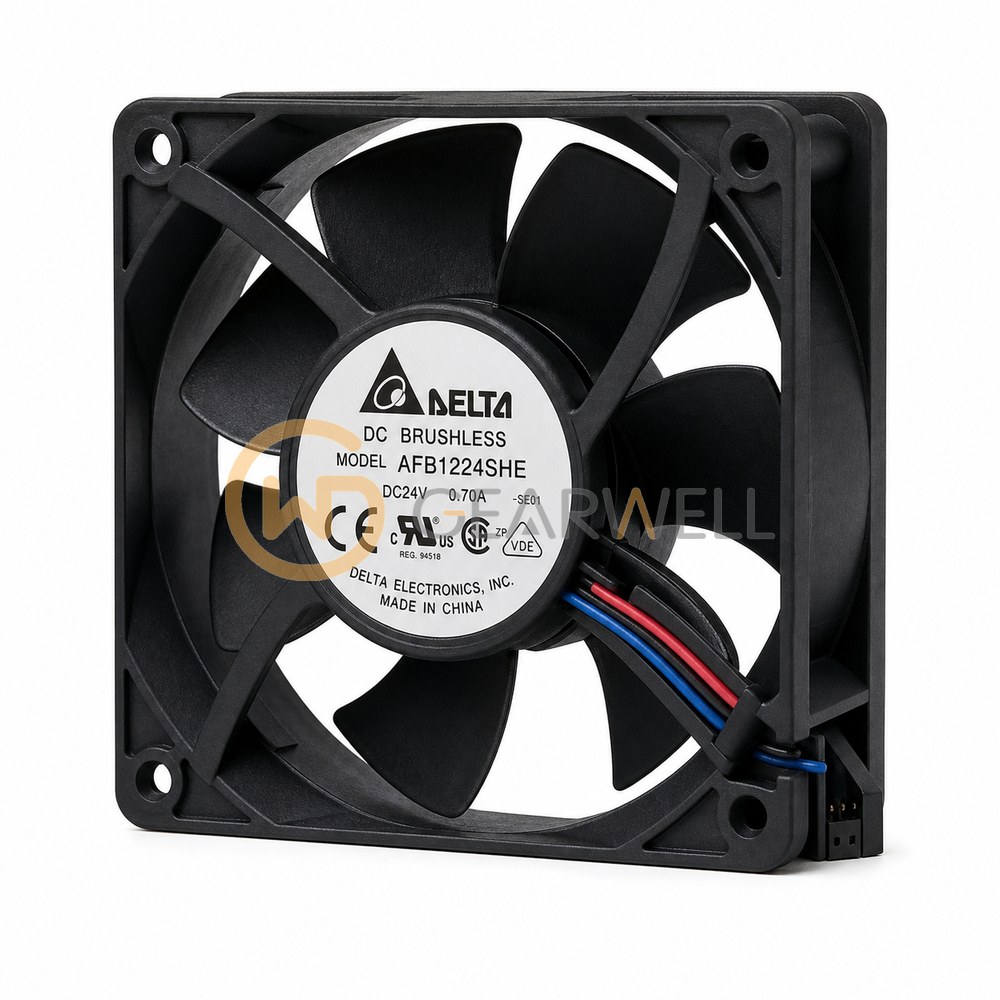

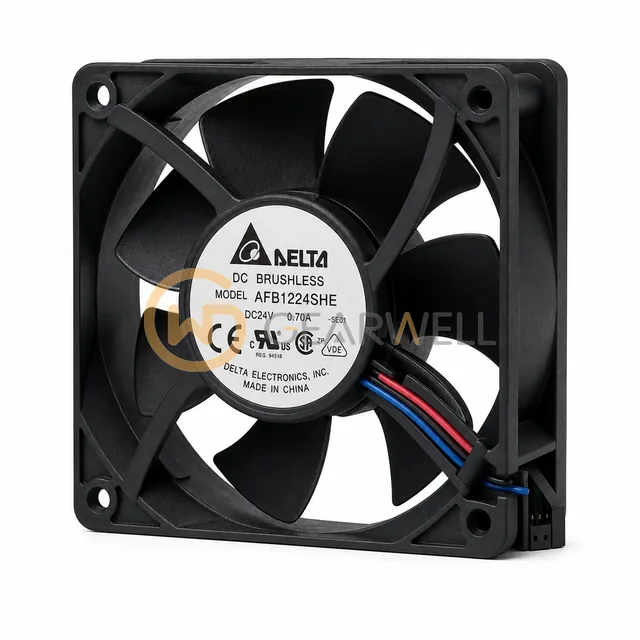

DELTA AFB1224SHE Industrial Cooling Fan
- Brand
- DELTA
- Model
- AFB1224SHE
- GEARWELL SKU
- GWP-000002451
- Category
- Industrial Automation Parts
Key specifications
- Noise
- 55.5 dB-A
- Speed
- 4100 r/min
- Input power
- 14.88 W
- Product type
- DC axial fan
- Input current
- 0.62 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta AFB1224SHE is a Delta AFB series DC brushless axial fan measuring 120 x 120 x 38 mm, rated 24 VDC with an operating range of 7.0 to 27.6 VDC. It draws 0.50 A (12.00 W) and runs at 3700 RPM, moving 151.85 CFM (4.300 m3/min) at up to 0.571 inchH2O static pressure with 53.0 dB(A) noise. The fan has a plastic frame and blades, a ball bearing and 2 lead wires. It operates from -10 to +60 C, weighs 256 g and is rated for 70000 hours of life at 40 C.
Technical reference
| Product name | DELTA AFB1224SHE Industrial Cooling Fan |
|---|---|
| Brand | DELTA |
| Model | AFB1224SHE |
| Category | Industrial Automation Parts |
| Noise | 55.5 dB-A |
| Speed | 4100 r/min |
| Input power | 14.88 W |
| Product type | DC axial fan |
| Input current | 0.62 A |
| Rated voltage | 24 V DC |
| Maximum air flow | 5.394 m³/min (190.48 CFM) |
| Operating voltage range | 14.0–28.0 V DC |
