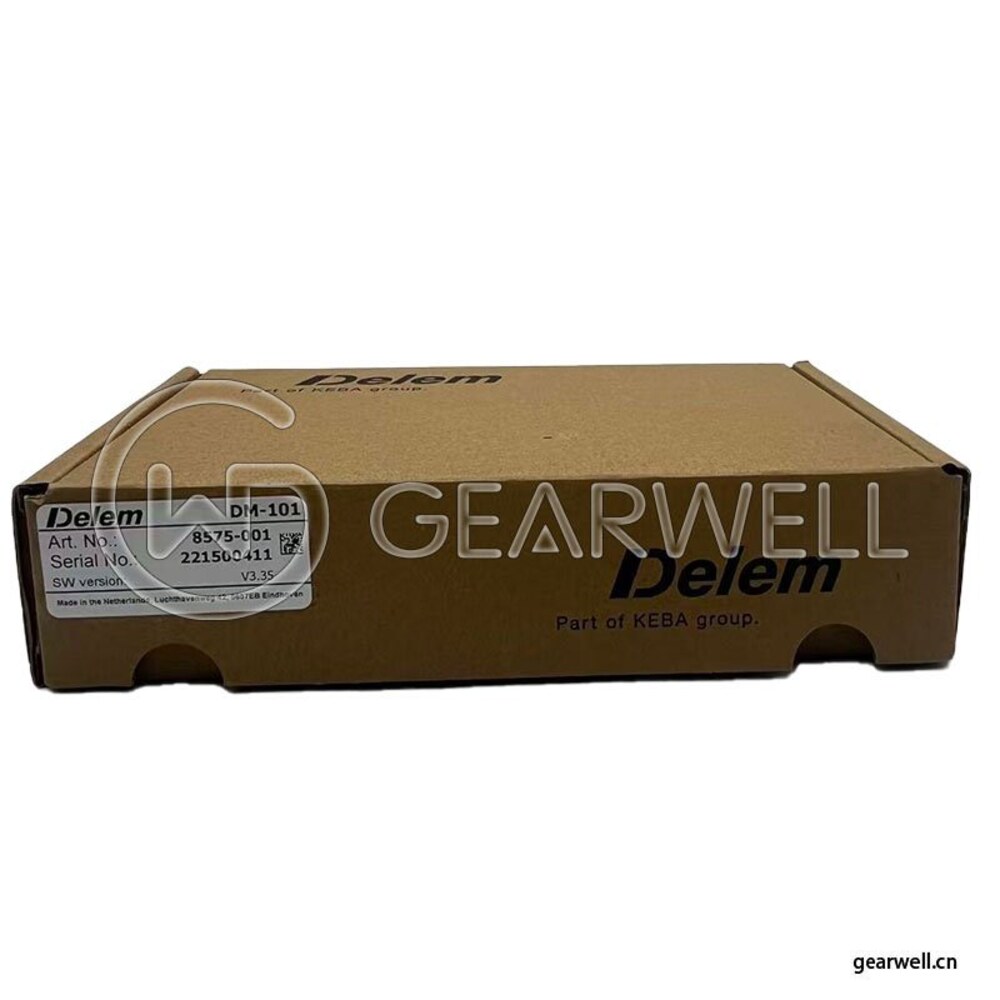

DELEM DM-101 Control Module
- Brand
- DELEM
- Model
- DM-101
- GEARWELL SKU
- GWP-000001968
- Category
- Industrial Automation Parts
Key specifications
- Power supply
- 18–30 V DC; 3.5 W maximum dissipation
- Product type
- Single-axis Modusys auxiliary axis controller
- Analog inputs
- 2 × 0–10 V, 12-bit
- Encoder input
- 5 or 12 V DC; 1 MHz maximum
- Digital inputs
- 4 × 10–28 V DC, 20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DELEM DM-101 Control Module |
|---|---|
| Brand | DELEM |
| Model | DM-101 |
| Category | Industrial Automation Parts |
| Power supply | 18–30 V DC; 3.5 W maximum dissipation |
| Product type | Single-axis Modusys auxiliary axis controller |
| Analog inputs | 2 × 0–10 V, 12-bit |
| Encoder input | 5 or 12 V DC; 1 MHz maximum |
| Digital inputs | 4 × 10–28 V DC, 20 mA |
| Axis control interfaces | Servo, frequency inverter and AC 2-speed control |
| Digital outputs | 4 × 18–28 V DC, 1.5 A |
| Operating temperature | 5 to 50 °C |
