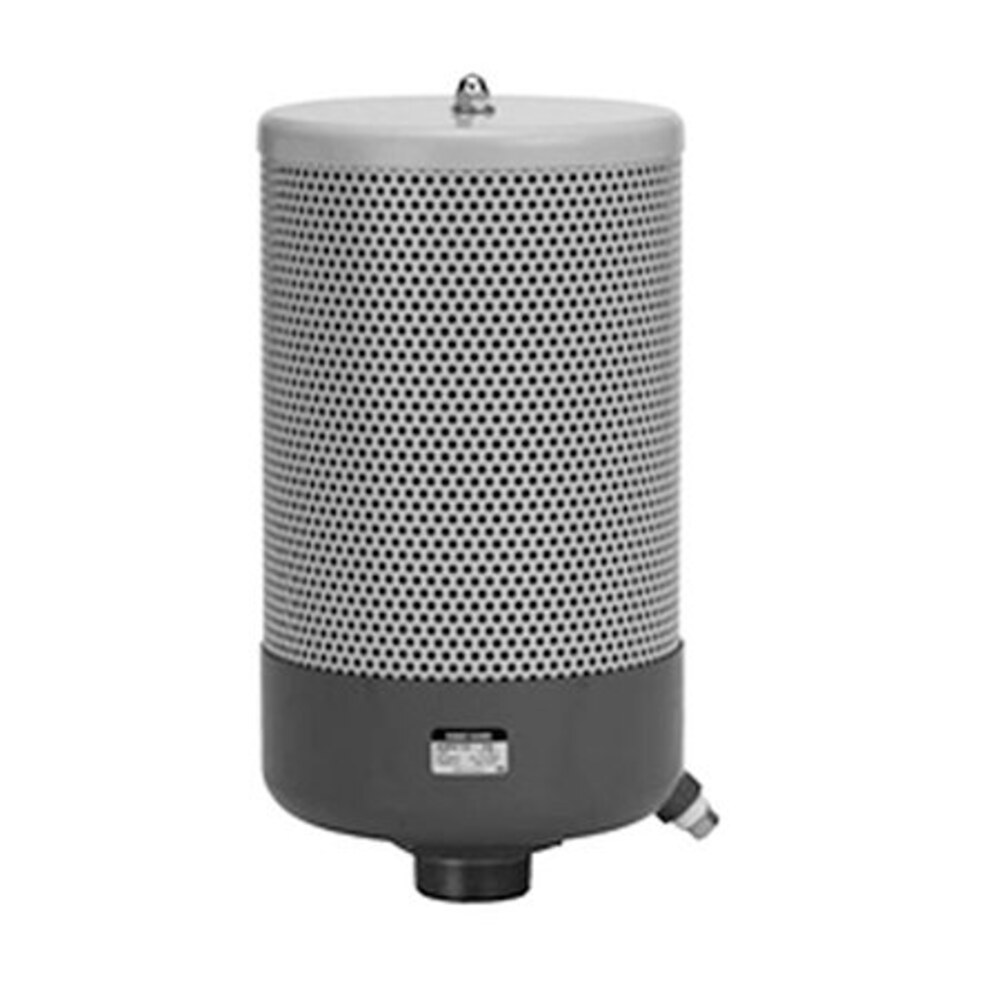

SMC AMV3-10 Exhaust Cleaner
- Brand
- SMC
- Model
- AMV3-10
- GEARWELL SKU
- GWP-000003345
- Category
- Industrial Automation Parts
Key specifications
- Weight
- 1.6 kg
- Port size
- R1
- Filtration
- 0.3 µm (95% trapping efficiency)
- Product type
- Vacuum pump exhaust cleaner
- Maximum air flow
- 360 L/min (ANR)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC AMV3-10 is an AMV series exhaust cleaner that captures oil mist from the exhaust of a vacuum pump. This size 3 unit has an R1 connection and suits pumps with a maximum exhaust speed of 360 L/min. Oil mist removal is 99.5% or more with 0.3 µm filtration, and the maximum operating temperature is 80°C. It holds 0.3 L of collected oil, weighs 1.6 kg and uses the AMV-EL3 replacement element.
Technical reference
| Product name | SMC AMV3-10 Exhaust Cleaner |
|---|---|
| Brand | SMC |
| Model | AMV3-10 |
| Category | Industrial Automation Parts |
| Weight | 1.6 kg |
| Port size | R1 |
| Filtration | 0.3 µm (95% trapping efficiency) |
| Product type | Vacuum pump exhaust cleaner |
| Maximum air flow | 360 L/min (ANR) |
| Oil accumulation amount | 0.3 L |
| Oil mist removal | 99.5% or more |
| Maximum operating temperature | 80 °C |
