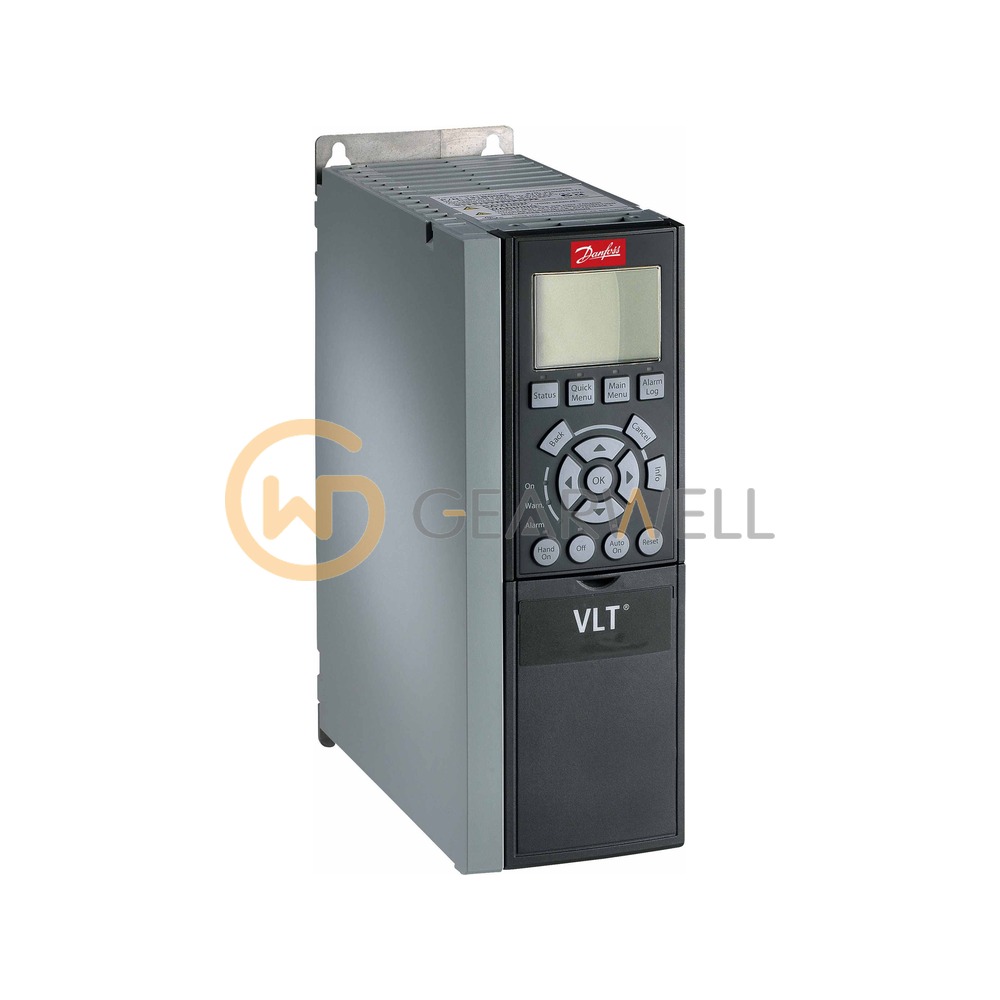

Danfoss FC-302P5K5T5E20H1XGCXXXSXXXXALBXCXXXX FC 302 AC Drive

Product overview

The Danfoss FC-302P5K5T5E20H1XGCXXXSXXXXALBXCXXXX is a VLT® AutomationDrive FC 302 AC drive (characters 4-6 = 302) with power size P5K5, rated 5.5 kW / 7.5 hp typical shaft output at high overload (160% 1 min/10 min), for 3-phase 380-500 V AC mains (voltage code T5). It delivers 13 A continuous and 20.8 A intermittent (60 s) output current on 380-440 V, or 11 A and 17.6 A on 441-500 V, with a continuous input current of 11.7 A at 400 V and an estimated power loss of 187 W. The code E20 selects the IP20/Chassis version, which is enclosure size A3; H1 means an RFI filter of class A1/B (C1), and X in position 18 means no brake IGBT. The remaining characters give a VLT® Control Panel LCP 102 graphical keypad (G), a coated PCB to class 3C3 (C), no mains option, standard cable entries and the latest released standard software (SXXX), a VLT® PROFINET MCA 120 fieldbus (AL), with no B-option (BX) or C-options (CX); the catalog number stops before the D-option characters, so that position must be confirmed.
