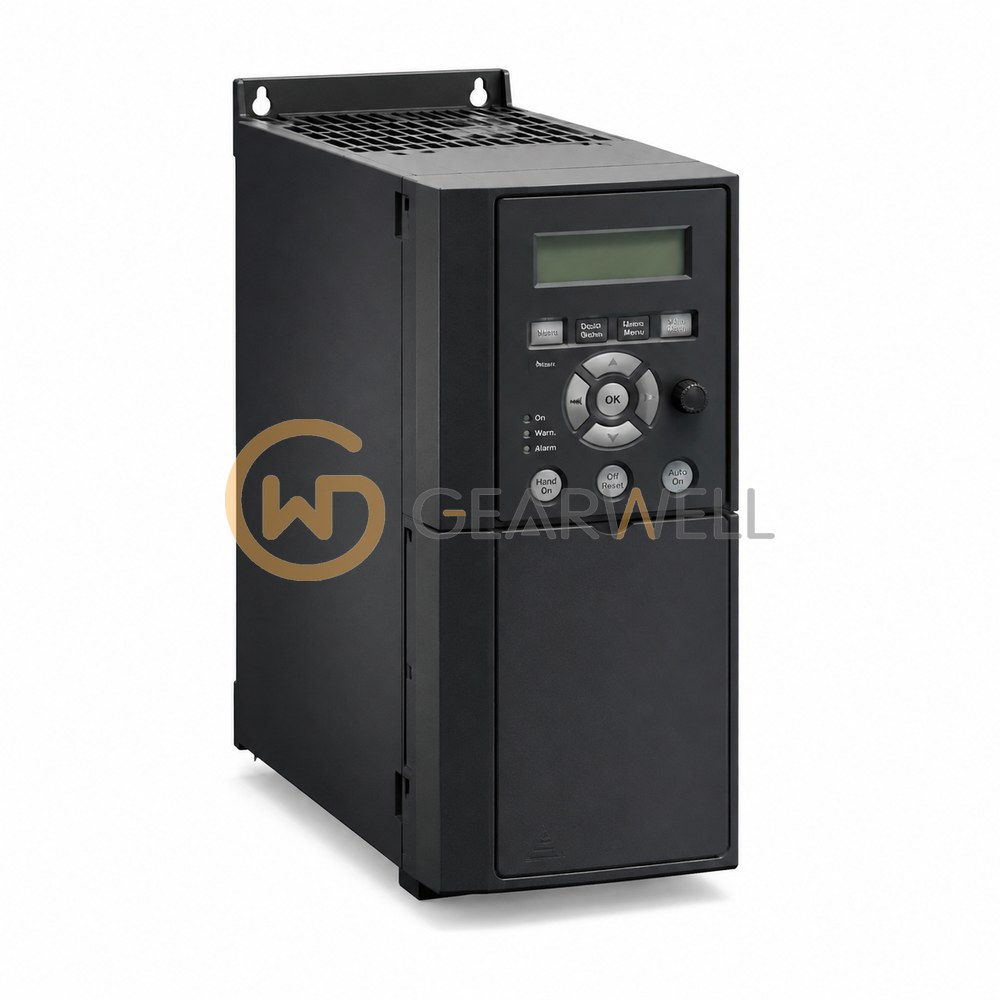

DANFOSS 131N0183 Drive
- Brand
- DANFOSS
- Model
- 131N0183
- GEARWELL SKU
- GWP-000003325
- Category
- Industrial Automation Parts
Key specifications
- Input phase
- Three-phase
- Enclosure
- IP54
- RFI filter
- Class A2 (C3)
- Power rating
- 3.0 kW / 4.0 hp
- Product type
- VLT HVAC Basic Drive FC 101 frequency converter
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 131N0183 is a VLT® HVAC Basic Drive FC 101 frequency converter for heating, ventilation and air conditioning duty with the full type code FC-101P3K0T4E5AH2XAXXXXSXXXXAXBXCXXXXDX, rated 3.0 kW / 4.0 hp (P3K0) for three-phase 380 - 480 VAC mains (T4). It delivers 7.2 A continuous and 7.9 A intermittent output current at 3 x 380-440 V, and 6.3 A continuous at 3 x 440-480 V. The enclosure is IP54 (not Type 12) (E5A) in frame I2, with an H2 RFI filter, no brake chopper and the alphanumeric local control panel (A). It has a non-coated PCB, no mains option and no A, B, C or D options.
Technical reference
| Product name | DANFOSS 131N0183 Drive |
|---|---|
| Brand | DANFOSS |
| Model | 131N0183 |
| Category | Industrial Automation Parts |
| Input phase | Three-phase |
| Enclosure | IP54 |
| RFI filter | Class A2 (C3) |
| Power rating | 3.0 kW / 4.0 hp |
| Product type | VLT HVAC Basic Drive FC 101 frequency converter |
| Brake chopper | Not included |
| Control panel | Alphanumeric LCP |
| Mains voltage | 380-480 VAC |
