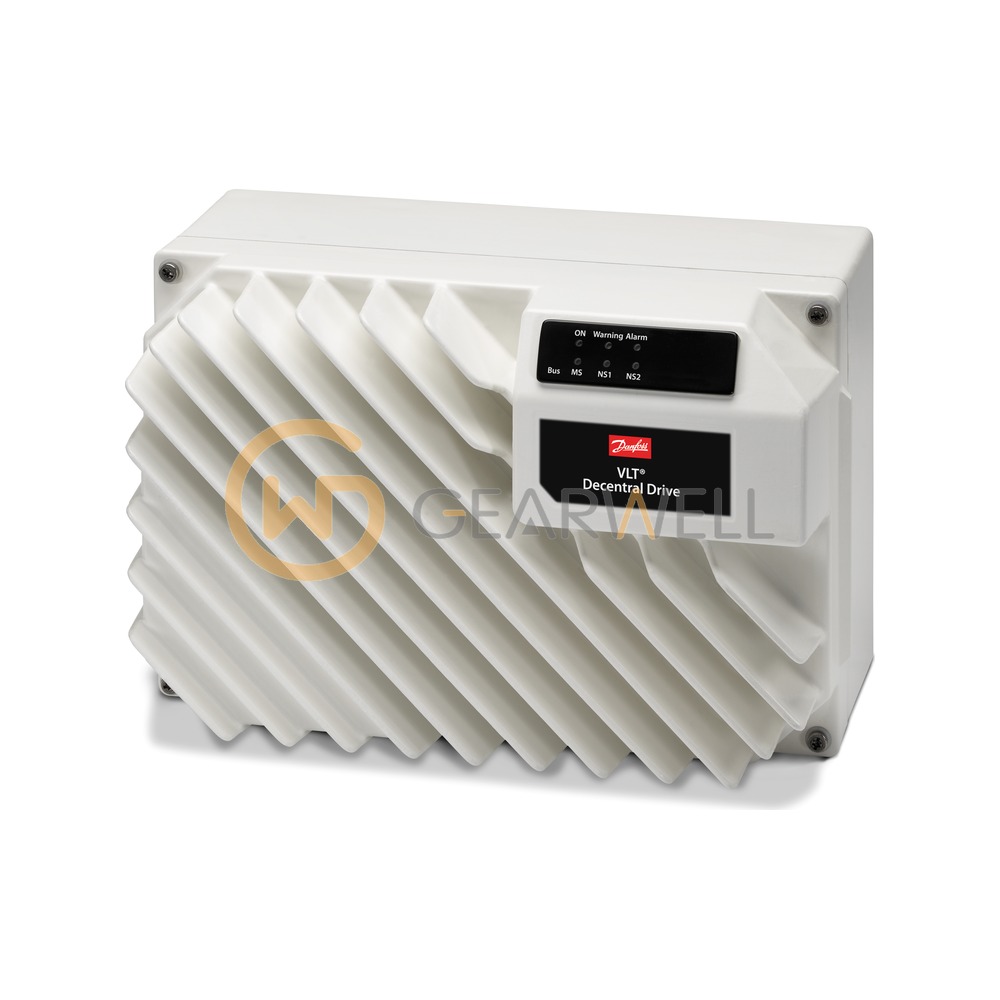

Danfoss 131Z7629 VLT Decentral Drive FCD 302 Decentral AC Drive
- Brand
- DANFOSS
- Model
- 131Z7629
- GEARWELL SKU
- GWP-000011623
- Category
- Variable Frequency Drives
Key specifications
- Brake
- No brake
- Frame size
- MF1
- A option (code A0)
- PROFIBUS DP
- Danfoss type code
- FCD302P1K1T4W66H1XXXXXXXXXXXA0BXXXXXXDX
- Enclosure (code W66)
- Standard white IP66 / NEMA 4X
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 131Z7629 is a VLT® Decentral Drive FCD 302 with the full type code FCD302P1K1T4W66H1XXXXXXXXXXXA0BXXXXXXDX, a drive meant for mounting close to the motor, rated 1.1 kW / 1.5 hp (P1K1) for three-phase 380-480 V AC mains (T4). It delivers 3 A continuous and 4.8 A intermittent output current at 3 x 380-440 V in high overload (160% for 1 min in 10 min). It has the standard white IP66 / NEMA 4X enclosure (W66), enclosure size MF1, an RFI filter class A1/C2 (H1) and no brake. The code describes the drive part only for the small enclosure, without installation box, brackets, switch option, display connector or plugs; the A option is A0, PROFIBUS DP, and there are no B or D options. The net weight is 5.1 kg.
Technical reference
| Product name | Danfoss 131Z7629 VLT Decentral Drive FCD 302 Decentral AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | 131Z7629 |
| Category | Variable Frequency Drives |
| Brake | No brake |
| Frame size | MF1 |
| A option (code A0) | PROFIBUS DP |
| Danfoss type code | FCD302P1K1T4W66H1XXXXXXXXXXXA0BXXXXXXDX |
| Enclosure (code W66) | Standard white IP66 / NEMA 4X |
| RFI filter (code H1) | RFI Class A1/C2 |
| Mains supply (code T4) | 3-phase 380-480 V AC |
| Rated power (code P1K1) | 1.1 kW / 1.5 HP |
| Hardware configuration | Drive part, small enclosure |
