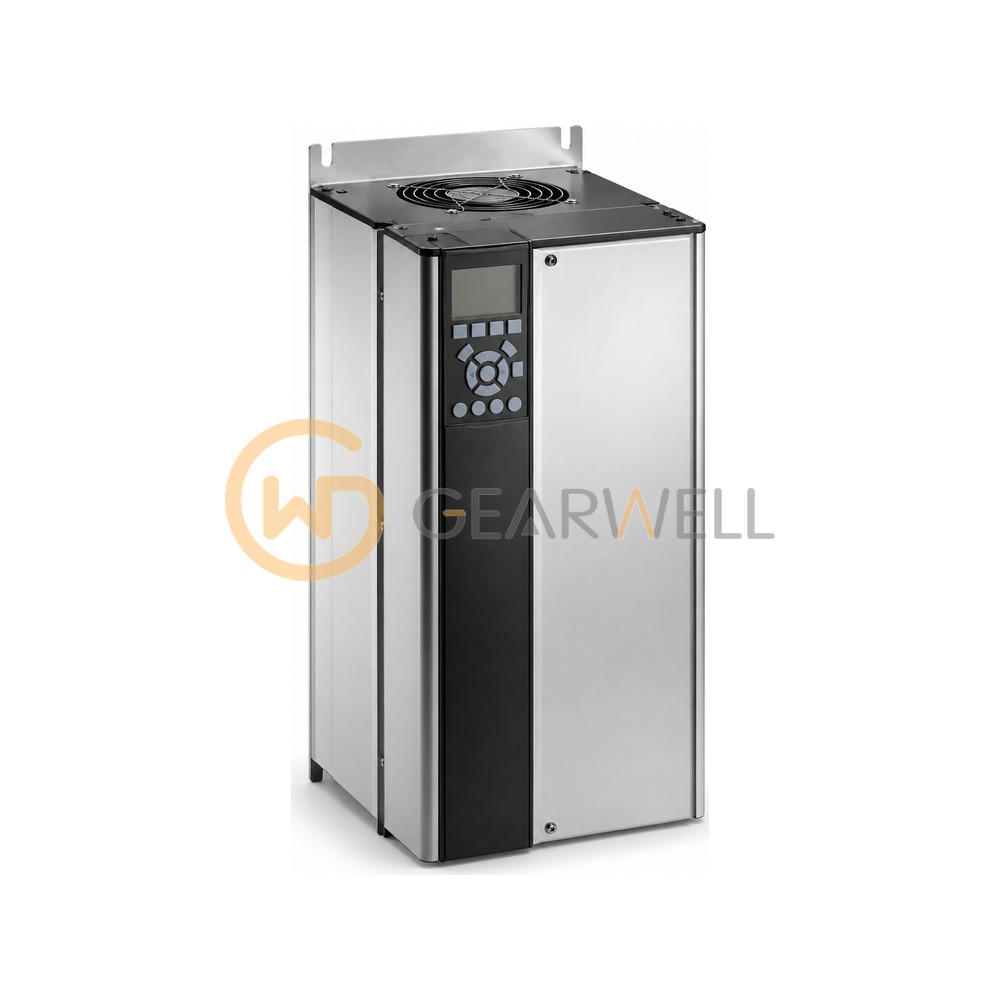

DANFOSS 131G3354 VLT AQUA Drive FC 202 AC Drive
- Brand
- DANFOSS
- Model
- 131G3354
- GEARWELL SKU
- GWP-000015770
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- B4
- A option (code AN)
- EtherNet/IP MCA 121
- Danfoss type code
- FC-202P30KT4E20H2XGXXXXSXXXXANBXCXXXXDX
- Enclosure (code E20)
- IP20 / Chassis
- PCB coating (code X)
- Not coated PCB
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DANFOSS 131G3354 VLT AQUA Drive FC 202 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | 131G3354 |
| Category | Variable Frequency Drives |
| Frame size | B4 |
| A option (code AN) | EtherNet/IP MCA 121 |
| Danfoss type code | FC-202P30KT4E20H2XGXXXXSXXXXANBXCXXXXDX |
| Enclosure (code E20) | IP20 / Chassis |
| PCB coating (code X) | Not coated PCB |
| RFI filter (code H2) | RFI Filter |
| Brake chopper (code X) | No |
| Mains supply (code T4) | 3-phase 380-480 V AC |
| Rated power (code P30K) | 30 kW / 40 HP |
| Local control panel (code G) | Graphical local control panel |
