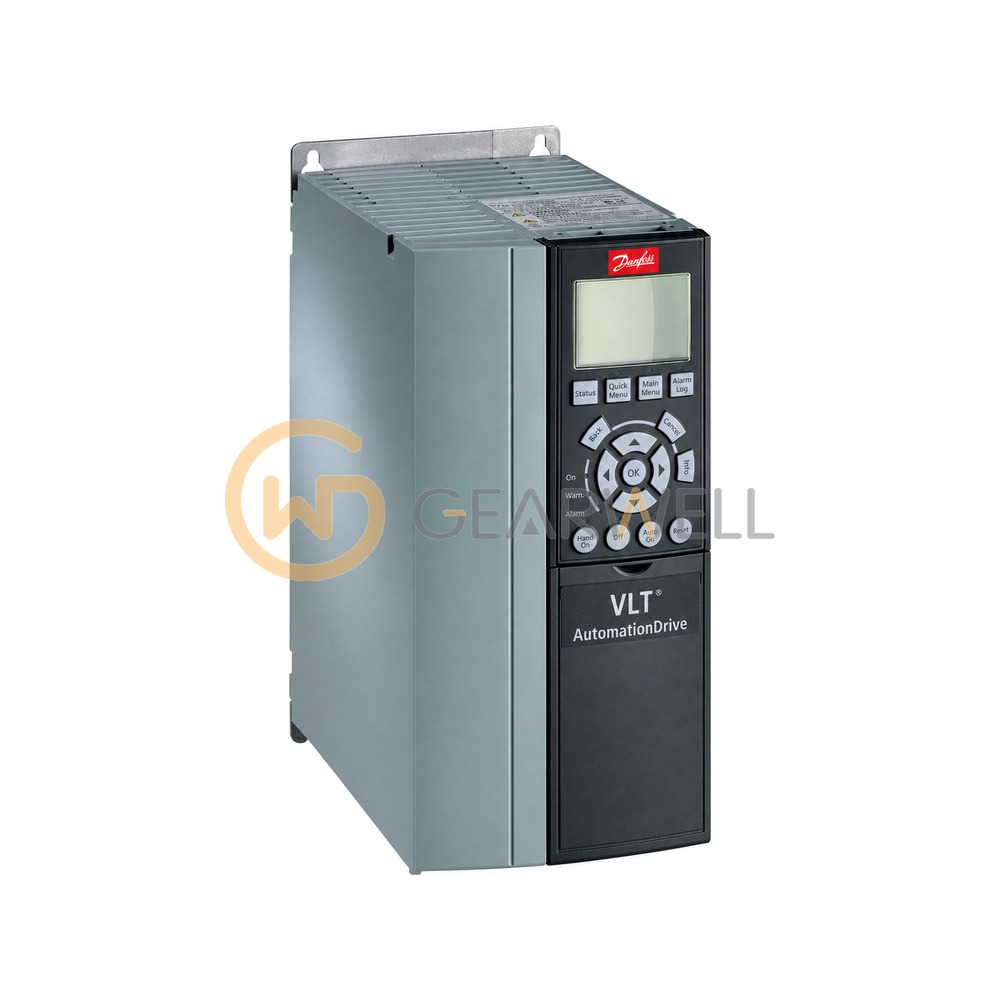

Danfoss 131B0042 FC 302 7.5 kW AC Drive
- Brand
- DANFOSS
- Model
- 131B0042
- GEARWELL SKU
- GWP-000010556
- Category
- Variable Frequency Drives
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 131B0042 is a VLT® AutomationDrive FC 302 frequency converter with the full type code FC-302P7K5T5E20H1XGXXXXSXXXXAXBXCXXXXDX, rated 7.5 kW / 10 hp (P7K5) for three-phase 380 - 500 V AC mains (T5). In high overload (160% for 1 min in 10 min) it delivers 16 A continuous and 25.6 A intermittent output current at 3 x 380-440 V, and 14.5 A continuous at 3 x 441-500 V. It is built as an IP20 / chassis unit (E20) in frame A3 with an RFI filter class A1/B (C1) (H1), the graphical local control panel (G) and no brake chopper (X). The PCB is not coated, and no mains option and no A, B, C or D options are fitted. Dimensions are 268 x 130 x 205 mm (height x width x depth, without C options) and the net weight is 6.54 kg.
Technical reference
| Product name | Danfoss 131B0042 FC 302 7.5 kW AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | 131B0042 |
| Category | Variable Frequency Drives |
