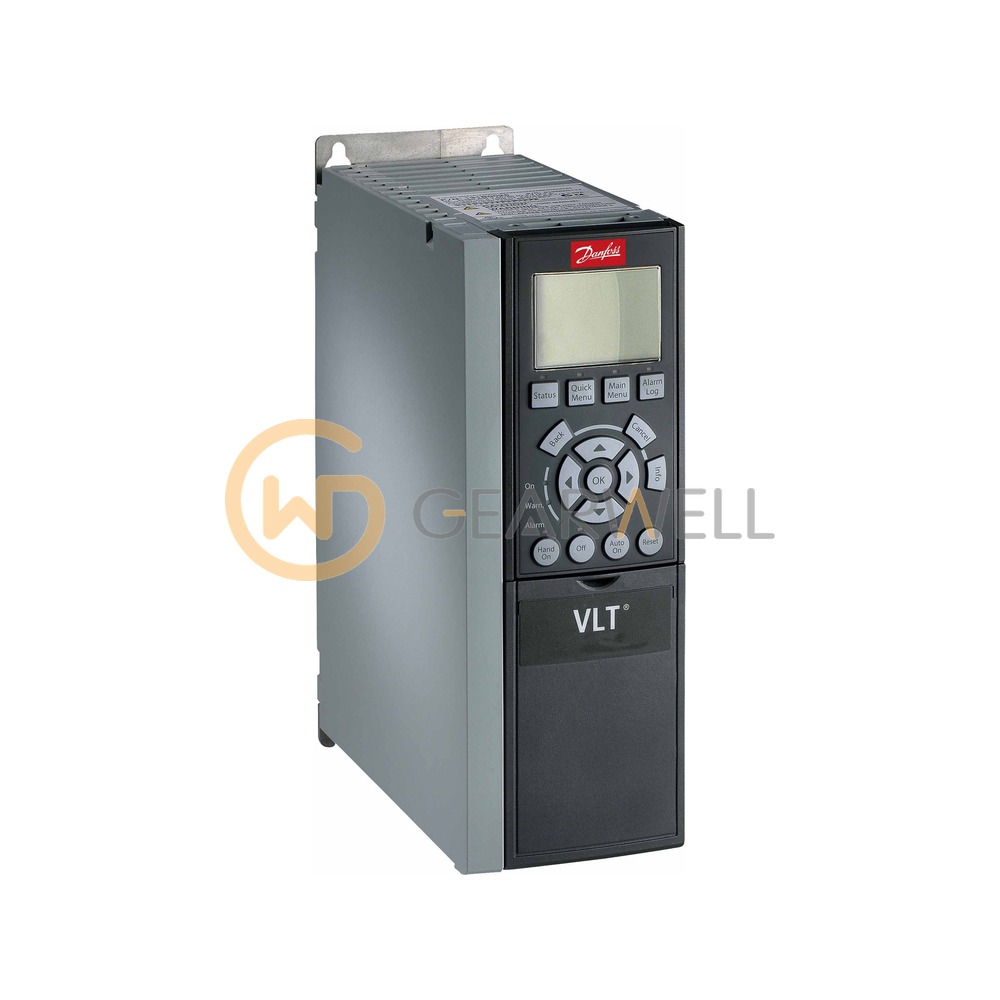

Danfoss 131B0037 VLT AutomationDrive FC 302 AC Drive
- Brand
- DANFOSS
- Model
- 131B0037
- GEARWELL SKU
- GWP-000011590
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- A2
- Danfoss type code
- FC-302P1K5T5E20H1XGXXXXSXXXXAXBXCXXXXDX
- Enclosure (code E20)
- IP20 / Chassis
- PCB coating (code X)
- Not coated PCB
- RFI filter (code H1)
- RFI Class A1/B (C1)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 131B0037 is a VLT® AutomationDrive FC 302 frequency converter with the full type code FC-302P1K5T5E20H1XGXXXXSXXXXAXBXCXXXXDX, rated 1.5 kW / 2.0 hp (P1K5) for three-phase 380 - 500 V AC mains (T5). In high overload (160% for 1 min in 10 min) it delivers 4.1 A continuous and 6.6 A intermittent output current at 3 x 380-440 V, and 3.4 A continuous at 3 x 441-500 V. The unit is an IP20 / chassis drive (E20) in frame A2 with an RFI filter class A1/B (C1) (H1), the graphical local control panel (G) and no brake chopper (X). It has a non-coated PCB, no mains option, standard software and no A, B, C or D options. Dimensions are 268 x 90 x 205 mm (height x width x depth, without C options) and the net weight is 4.44 kg.
Technical reference
| Product name | Danfoss 131B0037 VLT AutomationDrive FC 302 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | 131B0037 |
| Category | Variable Frequency Drives |
| Frame size | A2 |
| Danfoss type code | FC-302P1K5T5E20H1XGXXXXSXXXXAXBXCXXXXDX |
| Enclosure (code E20) | IP20 / Chassis |
| PCB coating (code X) | Not coated PCB |
| RFI filter (code H1) | RFI Class A1/B (C1) |
| Brake chopper (code X) | No |
| Mains supply (code T5) | 3-phase 380-500 V AC |
| Rated power (code P1K5) | 1.5 kW / 2.0 HP |
| Local control panel (code G) | Graphical local control panel |
| Continuous output current (HO, 380-440 V) | 4.1 A |
