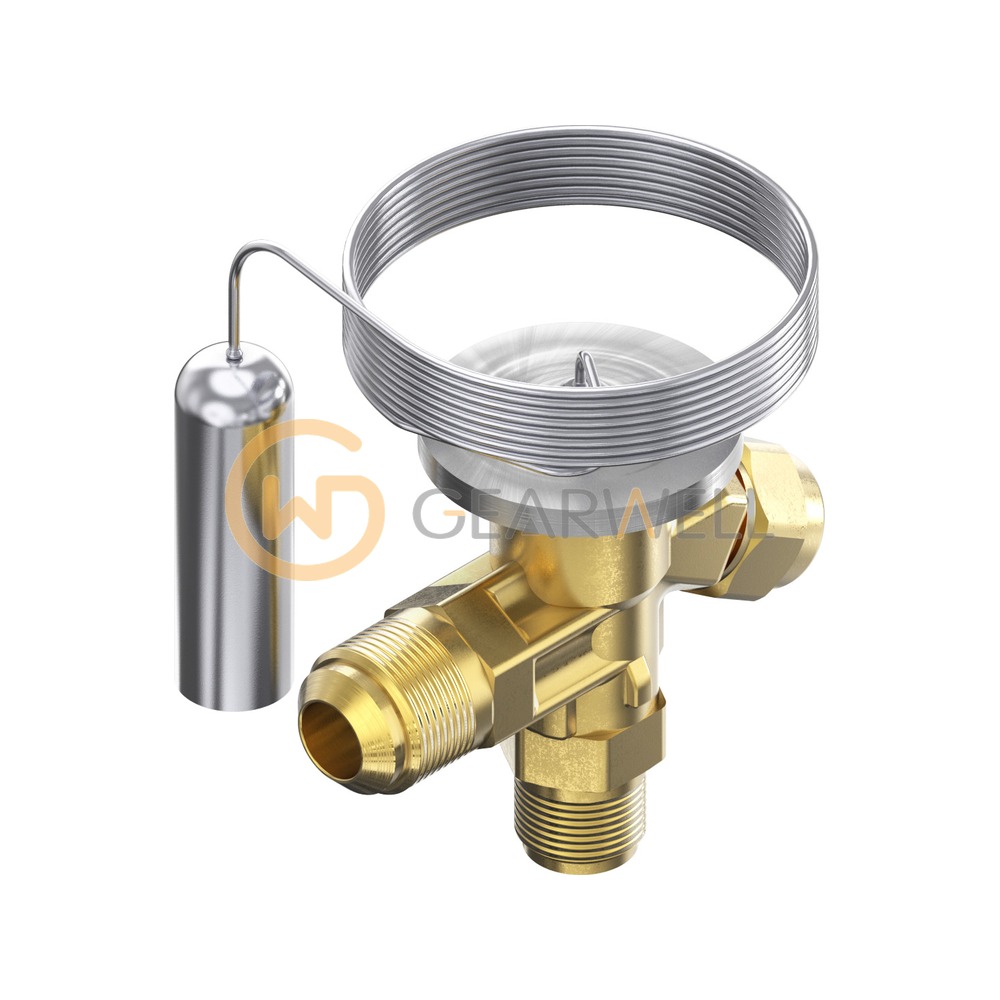

Danfoss 068Z3206 T 2 Thermostatic Expansion Valve
- Brand
- DANFOSS
- Model
- 068Z3206
- GEARWELL SKU
- GWP-000006968
- Category
- Valves
Key specifications
- Direction
- Angleway
- Connection
- 3/8 in flare inlet x 1/2 in flare outlet
- Product type
- T 2
- Body material
- Brass
- Temperature range
- -40 to 10 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 068Z3206 is a Danfoss T 2 thermostatic expansion valve for R22/R407C with internal pressure equalization and an adjustable superheat setting (static superheat 4 °C). The brass angleway body has a 3/8 in flare inlet and a 1/2 in flare outlet, and the capillary tube is 1500 mm long; a bulb strap is included. The temperature range is -40 to 10 °C and the maximum working pressure is 34 bar (500 psig). It belongs to the Danfoss T2/TE2 parts program, and net weight is 0.284 kg.
Technical reference
| Product name | Danfoss 068Z3206 T 2 Thermostatic Expansion Valve |
|---|---|
| Brand | DANFOSS |
| Model | 068Z3206 |
| Category | Valves |
| Direction | Angleway |
| Connection | 3/8 in flare inlet x 1/2 in flare outlet |
| Product type | T 2 |
| Body material | Brass |
| Temperature range | -40 to 10 °C |
| Max. working pressure | 34 bar |
| Capillary tube length | 1500 mm |
| Pressure equalization | Internally equalized |
