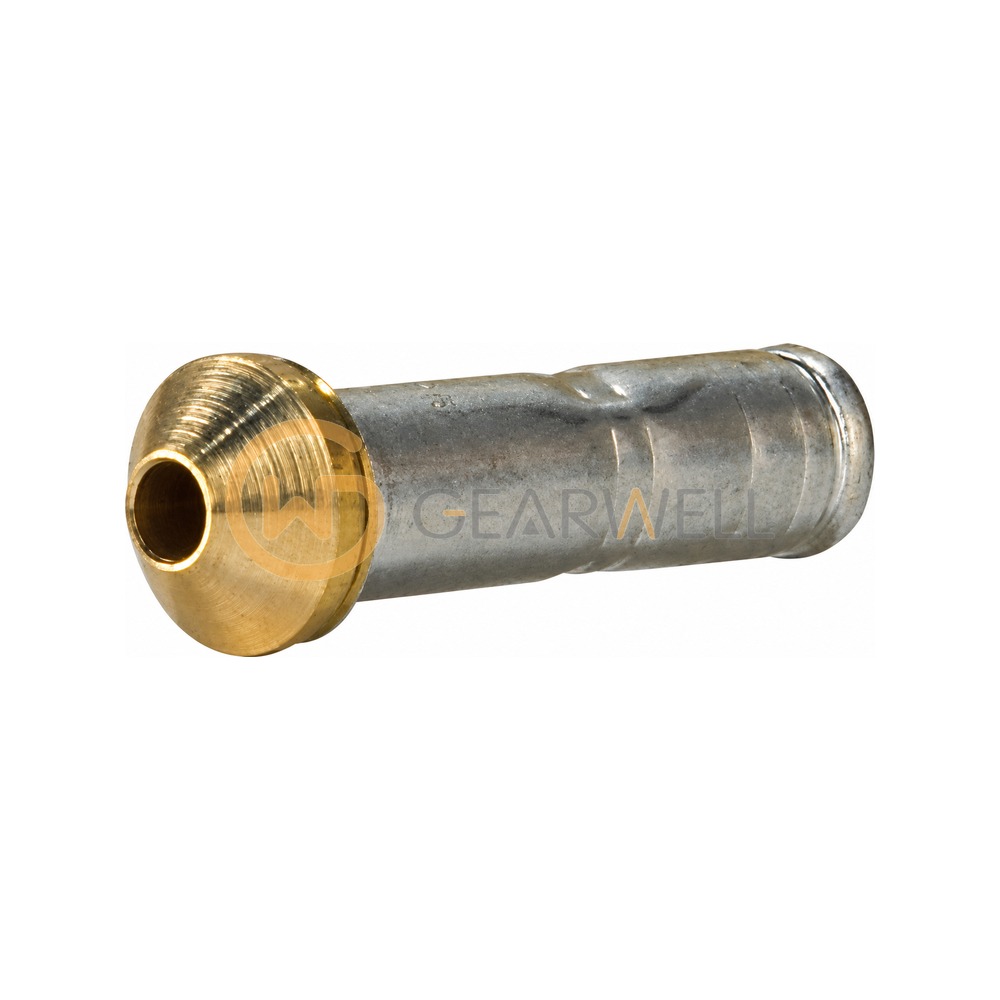

Danfoss 068-2007 T2/TE2 Expansion Valve Orifice
- Brand
- DANFOSS
- Model
- 068-2007
- GEARWELL SKU
- GWP-000006967
- Category
- Valves
Key specifications
- Design
- SAE flare only
- Used for
- T 2, TE 2
- Orifice size
- 04
- Temperature range
- -40 to 10 °C
- Rated capacity R134a (range N)
- 6.40 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 068-2007 is a replacement orifice (type ORF, orifice size 04) from the Danfoss T2/TE2 parts program, used in the T 2 and TE 2 thermostatic expansion valves of SAE flare design. Rated capacity in range N (tevap 4.4 °C, tcond 38 °C, tliq 37 °C) is 12.1 kW for R22, 12.4 kW for R407C, 9.9 kW for R404A/R507 and 6.4 kW for R134a. It suits a wide set of refrigerants including R134a/R513A, R22/R407C, R404A/R507A, R448A, R449A, R452A, R454C, R455A and R1234yf. It is supplied in a multi pack of 25 pieces; net weight per orifice is 0.013 kg.
Technical reference
| Product name | Danfoss 068-2007 T2/TE2 Expansion Valve Orifice |
|---|---|
| Brand | DANFOSS |
| Model | 068-2007 |
| Category | Valves |
| Design | SAE flare only |
| Used for | T 2, TE 2 |
| Orifice size | 04 |
| Temperature range | -40 to 10 °C |
| Rated capacity R134a (range N) | 6.40 kW |
| Rated capacity R404A (range N) | 9.90 kW |
