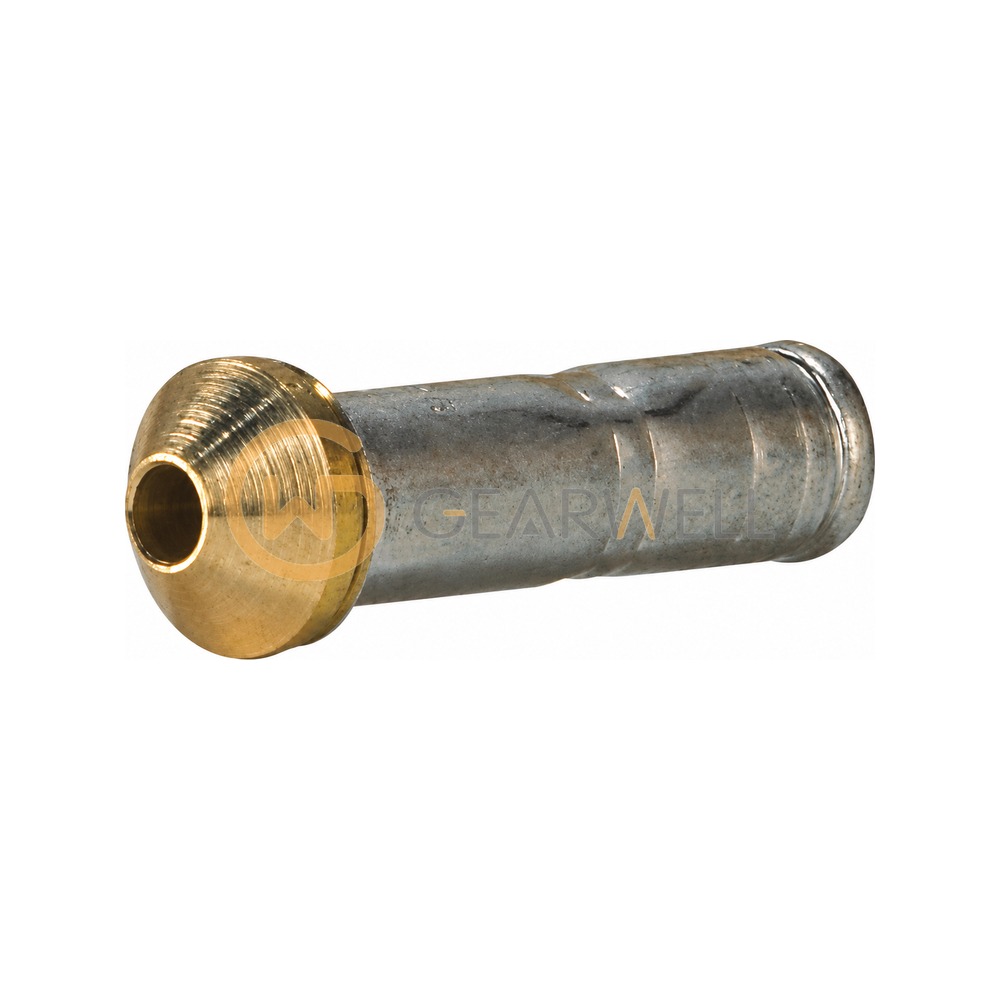

Danfoss 068-2006 T2/TE2 Expansion Valve Orifice
- Brand
- DANFOSS
- Model
- 068-2006
- GEARWELL SKU
- GWP-000006966
- Category
- Valves
Key specifications
- Design
- SAE flare only
- Used for
- T 2, TE 2
- Orifice size
- 03
- Temperature range
- -40 to 10 °C
- Rated capacity R134a (range N)
- 4.30 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 068-2006 is a replacement orifice (type ORF, orifice size 03) from the Danfoss T2/TE2 parts program for the T 2 and TE 2 thermostatic expansion valves of SAE flare design. Danfoss rates it in range N (tevap 4.4 °C, tcond 38 °C, tliq 37 °C) at 8 kW for R22, 8.1 kW for R407C, 6.3 kW for R404A/R507 and 4.3 kW for R134a. Approved refrigerants include R134a/R513A, R22/R407C, R404A/R507A, R448A, R449A, R452A, R454C, R455A and R1234yf. It comes in a multi pack of 25 pieces; net weight per orifice is 0.013 kg.
Technical reference
| Product name | Danfoss 068-2006 T2/TE2 Expansion Valve Orifice |
|---|---|
| Brand | DANFOSS |
| Model | 068-2006 |
| Category | Valves |
| Design | SAE flare only |
| Used for | T 2, TE 2 |
| Orifice size | 03 |
| Temperature range | -40 to 10 °C |
| Rated capacity R134a (range N) | 4.30 kW |
| Rated capacity R404A (range N) | 6.30 kW |
