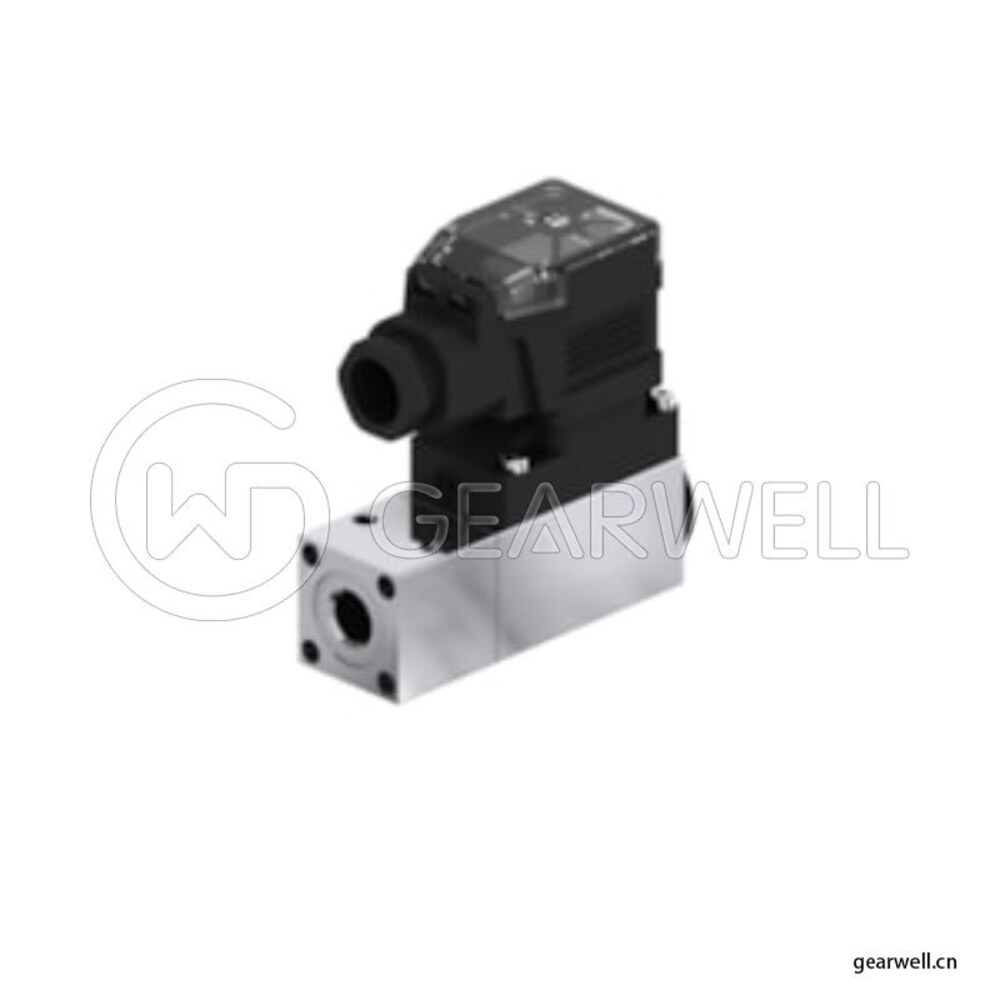

DANFOSS 061B010266 Pressure switch
- Brand
- DANFOSS
- Model
- 061B010266
- GEARWELL SKU
- GWP-000003550
- Category
- Sensors & Instrumentation
Key specifications
- Burst pressure [bar]
- 30 bar
- Enclosure rating IP
- IP65
- Electrical connection
- DIN-plug
- Diff.@Max. range setting [bar]
- 0.6 bar
- Diff.@Min. range setting [bar]
- 0.4 bar
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 061B010266 is a Danfoss MBC 5100 pressure switch (specification key 1411-2DB04) with a bellows sensing element and a regulation range of -0.2 to 10 bar. It has an SPDT contact rated AC15 0.5 A at 250 V and DC13 12 W at 125 V, with automatic reset and a differential of 0.4 to 0.6 bar over the range. The pressure connection is G 1/4 female with flange (ISO 228-1), the electrical connection is an EN 175301-803-A DIN plug with M20 entry, and the enclosure is IP65. Maximum working pressure is 15 bar, the ambient range is -40 to 85 °C, and approvals include CE and marine classes such as ABS, BV, DNV and LR.
Technical reference
| Product name | DANFOSS 061B010266 Pressure switch |
|---|---|
| Brand | DANFOSS |
| Model | 061B010266 |
| Category | Sensors & Instrumentation |
| Burst pressure [bar] | 30 bar |
| Enclosure rating IP | IP65 |
| Electrical connection | DIN-plug |
| Diff.@Max. range setting [bar] | 0.6 bar |
| Diff.@Min. range setting [bar] | 0.4 bar |
| Electrical connection size | M20 |
| Ambient temperature range [°C] | -40 °C … 85 °C |
| Electrical connection standard | EN 175301-803-A |
