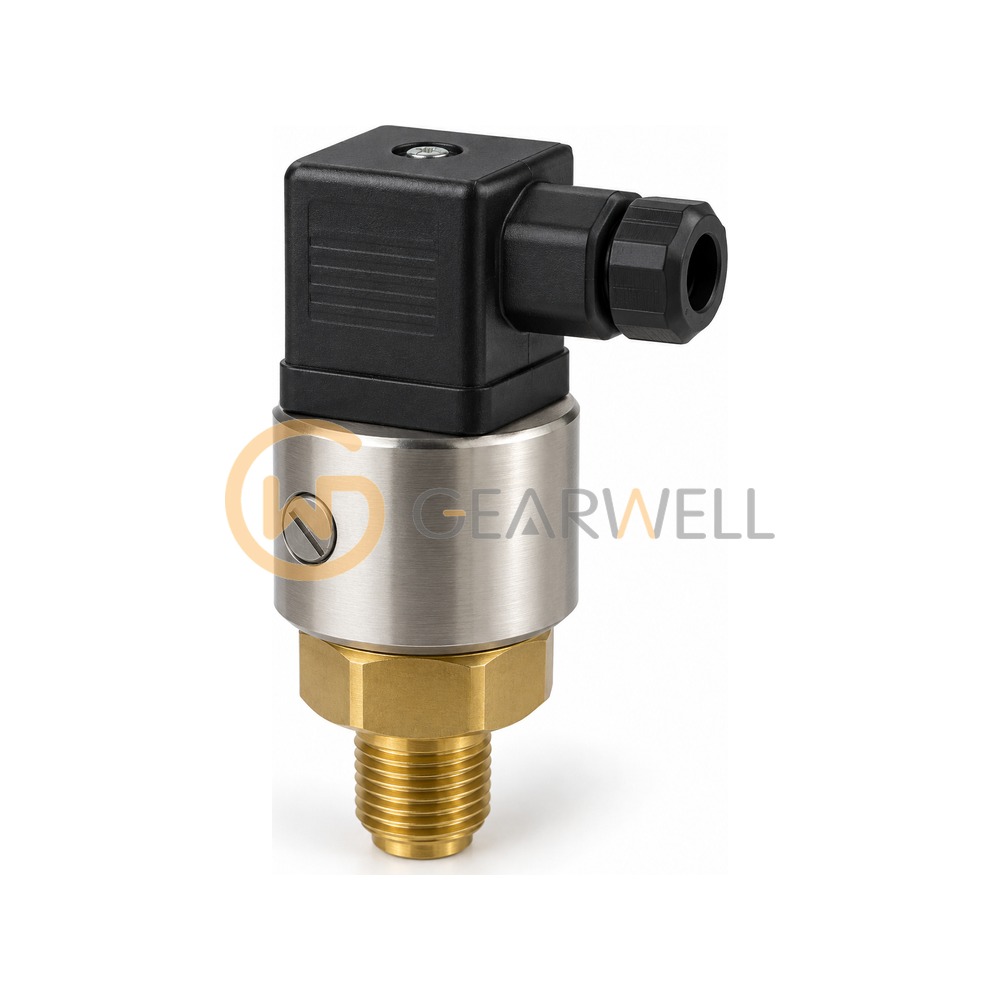

DANFOSS 061B100766 MBC 5100 Pressure Switch
- Brand
- DANFOSS
- Model
- 061B100766
- GEARWELL SKU
- GWP-000015233
- Category
- Pressure, Flow & Temperature
Key specifications
- Type
- MBC 5100
- Contact function
- SPDT
- Enclosure rating
- IP65
- Regulation range
- 5-40 bar
- Specification key
- 3641-1CB04
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DANFOSS 061B100766 MBC 5100 Pressure Switch |
|---|---|
| Brand | DANFOSS |
| Model | 061B100766 |
| Category | Pressure, Flow & Temperature |
| Type | MBC 5100 |
| Contact function | SPDT |
| Enclosure rating | IP65 |
| Regulation range | 5-40 bar |
| Specification key | 3641-1CB04 |
| Pressure connection | G 1/4 (ISO 228-1) |
| Max. working pressure | 150 bar |
| Electrical connection | DIN plug EN 175301-803-A, Pg 11 |
| Ambient temperature range | -10 to 85 °C |
