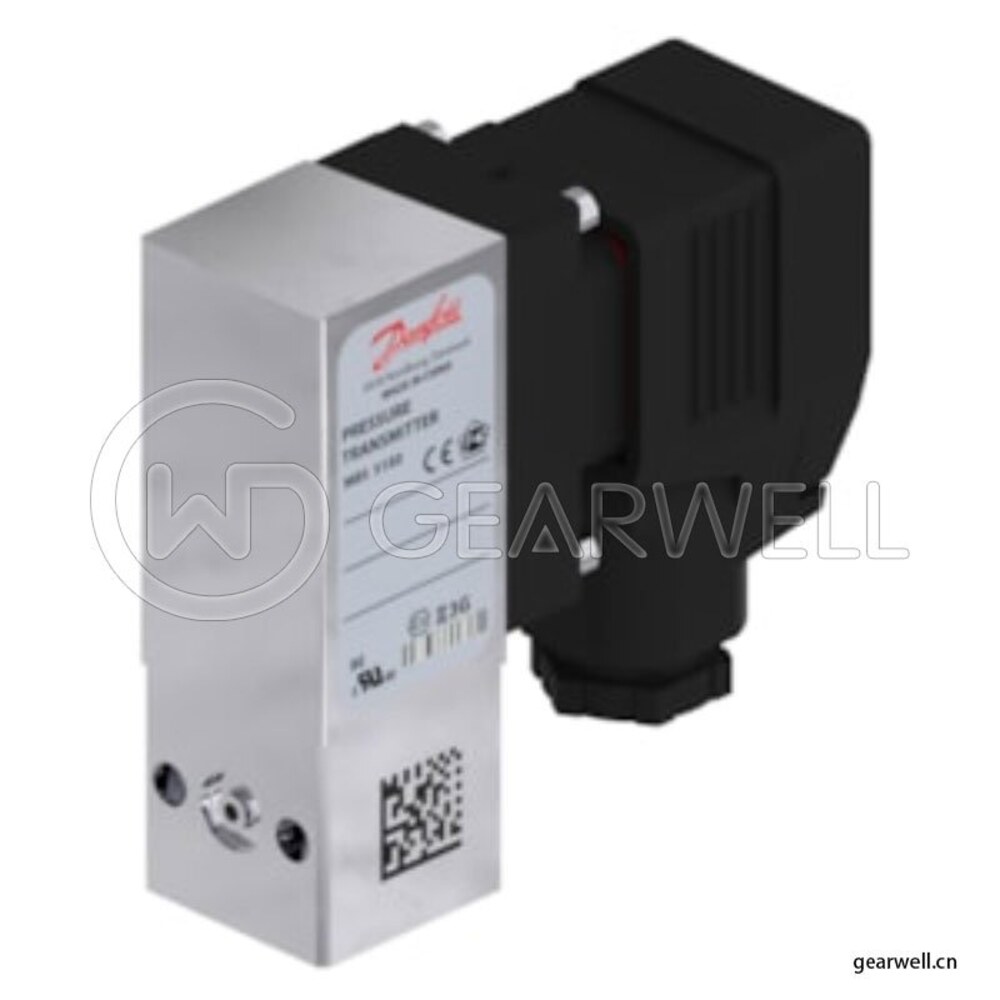

DANFOSS 060N1072 Pressure transmitter
- Brand
- DANFOSS
- Model
- 060N1072
- GEARWELL SKU
- GWP-000002528
- Category
- Sensors & Instrumentation
Key specifications
- Gross weight
- 0.423 Kilogram
- Enclosure rating IP
- IP65
- Electrical connection
- Angular connector
- Compensated temp. range [°C]
- 0 °C … 80 °C
- Electrical connection size
- M20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 060N1072 is a Danfoss MBS 5150 pressure transmitter (specification key MBS 5150-2011-H3DB04-4) for 0 to 10 bar (0 to 145 psi), gauge reference. It delivers 4-20 mA from a 9-32 V DC supply, with typical accuracy of 0.1 % and maximum accuracy of 0.3 % of full scale, and overload pressure up to 20 bar. The pressure connection is G 1/4 female with flange and a built-in pulse snubber, and the electrical connection is an EN 175301-803-A angle plug with M20 entry, rated IP65. Medium and ambient temperature range is -40 to 85 °C, and net weight is 0.354 kg.
Technical reference
| Product name | DANFOSS 060N1072 Pressure transmitter |
|---|---|
| Brand | DANFOSS |
| Model | 060N1072 |
| Category | Sensors & Instrumentation |
| Gross weight | 0.423 Kilogram |
| Enclosure rating IP | IP65 |
| Electrical connection | Angular connector |
| Compensated temp. range [°C] | 0 °C … 80 °C |
| Electrical connection size | M20 |
| Medium temperature range [°C] | -40 °C … 85 °C |
| Ambient temperature range [°C] | -40 °C … 85 °C |
| Electrical connection standard | EN 175301-803-A |
