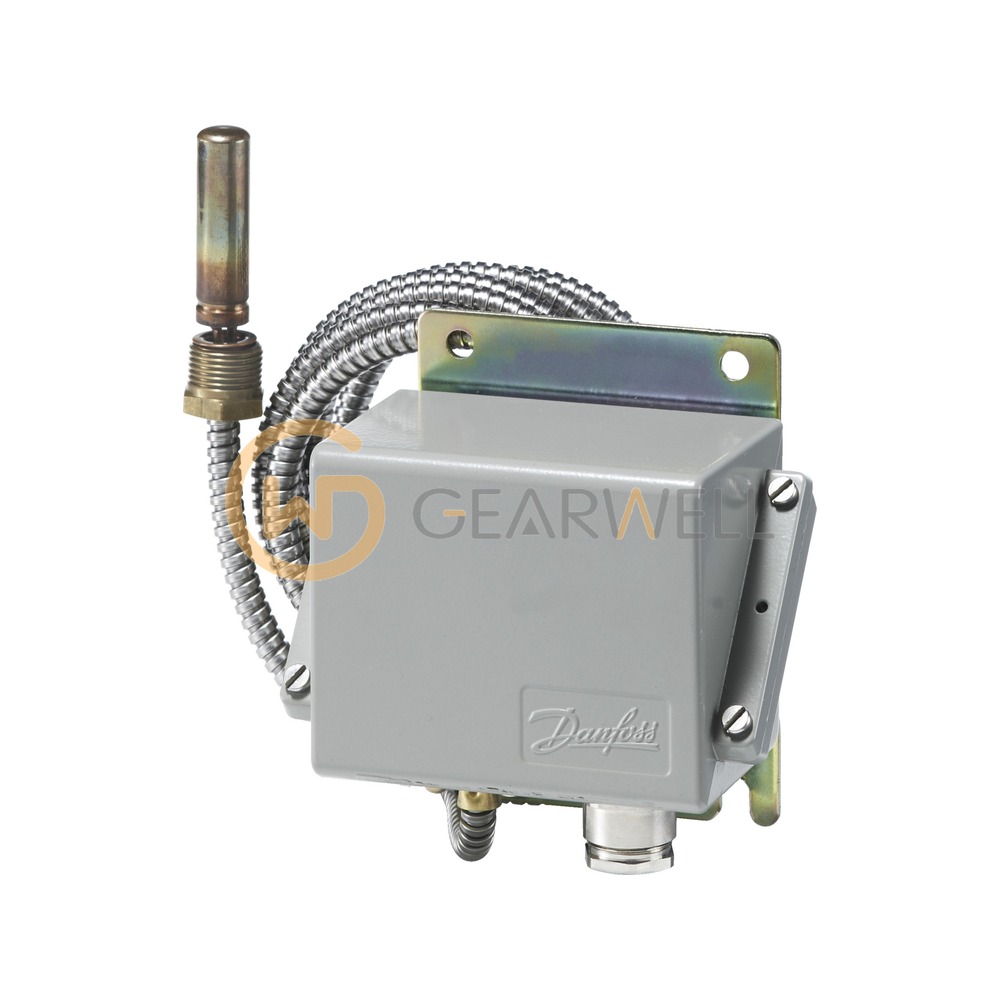

DANFOSS 060L3134 KPS81 Remote Bulb Temperature Switch
- Brand
- DANFOSS
- Model
- 060L3134
- GEARWELL SKU
- GWP-000016931
- Category
- Pressure, Flow & Temperature
Key specifications
- Sensor type
- Remote bulb
- Contact rating
- AC15 = 4 A, 440 V; AC1 = 10 A, 440 V
- Reset function
- Auto
- Contact function
- SPDT gold
- Enclosure rating
- IP67
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DANFOSS 060L3134 KPS81 Remote Bulb Temperature Switch |
|---|---|
| Brand | DANFOSS |
| Model | 060L3134 |
| Category | Pressure, Flow & Temperature |
| Sensor type | Remote bulb |
| Contact rating | AC15 = 4 A, 440 V; AC1 = 10 A, 440 V |
| Reset function | Auto |
| Contact function | SPDT gold |
| Enclosure rating | IP67 |
| Type designation | KPS81 |
| Temperature range | 60 - 150 °C |
| Capillary tube length | 5000 mm |
| Official store order code | 060L313466 (multi pack, 10 pc) |
| Differential (at min. range setting) | 5 - 25 K |
