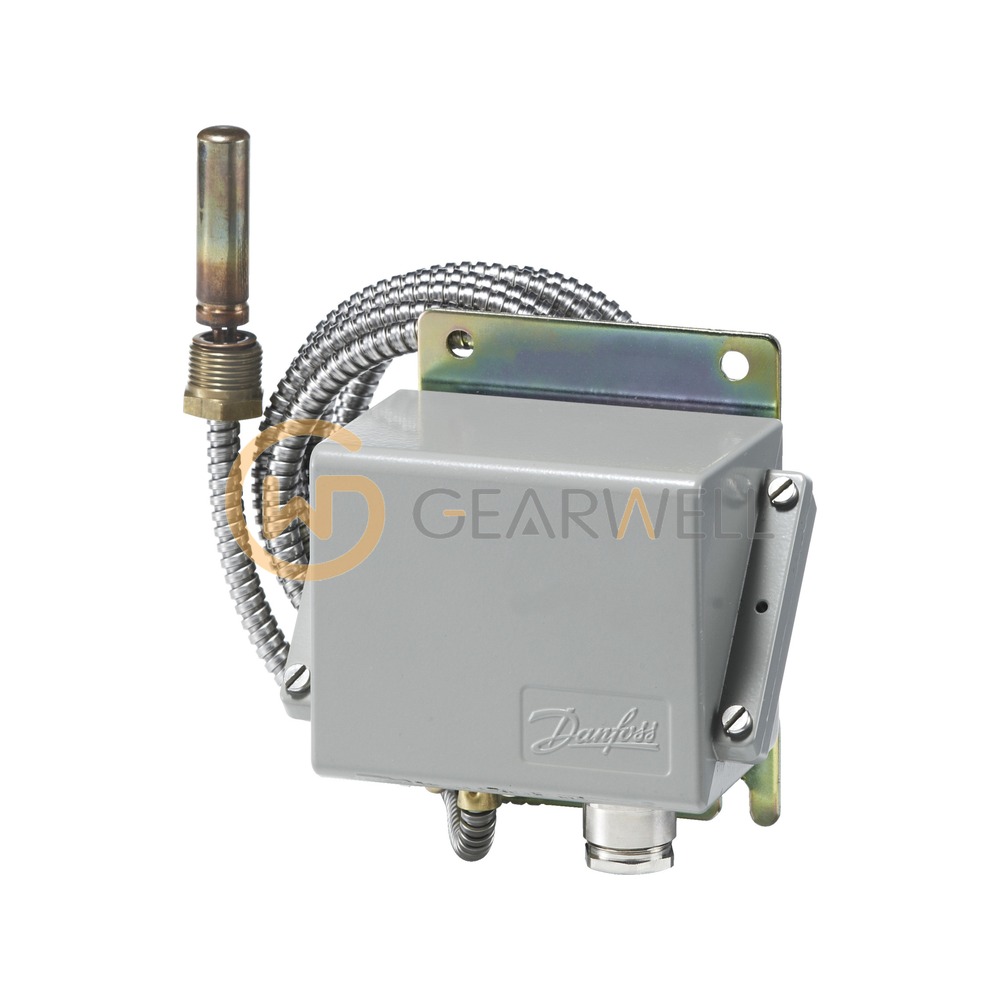

DANFOSS 060L3122 KPS79 KPS Series Thermostat Temperature Switch
- Brand
- DANFOSS
- Model
- 060L3122
- GEARWELL SKU
- GWP-000016927
- Category
- Pressure, Flow & Temperature
Key specifications
- Sensor type
- Remote bulb
- Contact rating
- AC15=4 A, 440 V; AC1=10 A, 440 V; AC3=6 A, 440 V; DC13=12 W, 220 V; for gold 1…30mA, 5...30V
- Sensor size (Ø x L)
- 13 x 90 mm
- Contact function
- SPDT gold
- Type designation
- KPS79
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DANFOSS 060L3122 KPS79 KPS Series Thermostat Temperature Switch |
|---|---|
| Brand | DANFOSS |
| Model | 060L3122 |
| Category | Pressure, Flow & Temperature |
| Sensor type | Remote bulb |
| Contact rating | AC15=4 A, 440 V; AC1=10 A, 440 V; AC3=6 A, 440 V; DC13=12 W, 220 V; for gold 1…30mA, 5...30V |
| Sensor size (Ø x L) | 13 x 90 mm |
| Contact function | SPDT gold |
| Type designation | KPS79 |
| Temperature range | 50 ... 100 °C |
| Danfoss code number | 060L312266 (collected as 060L3122) |
| Capillary tube length | 5000 mm |
| Capillary tube equipment | Armored cap. tube |
| Differential (at min. range setting) | 4 ... 16 °C |
