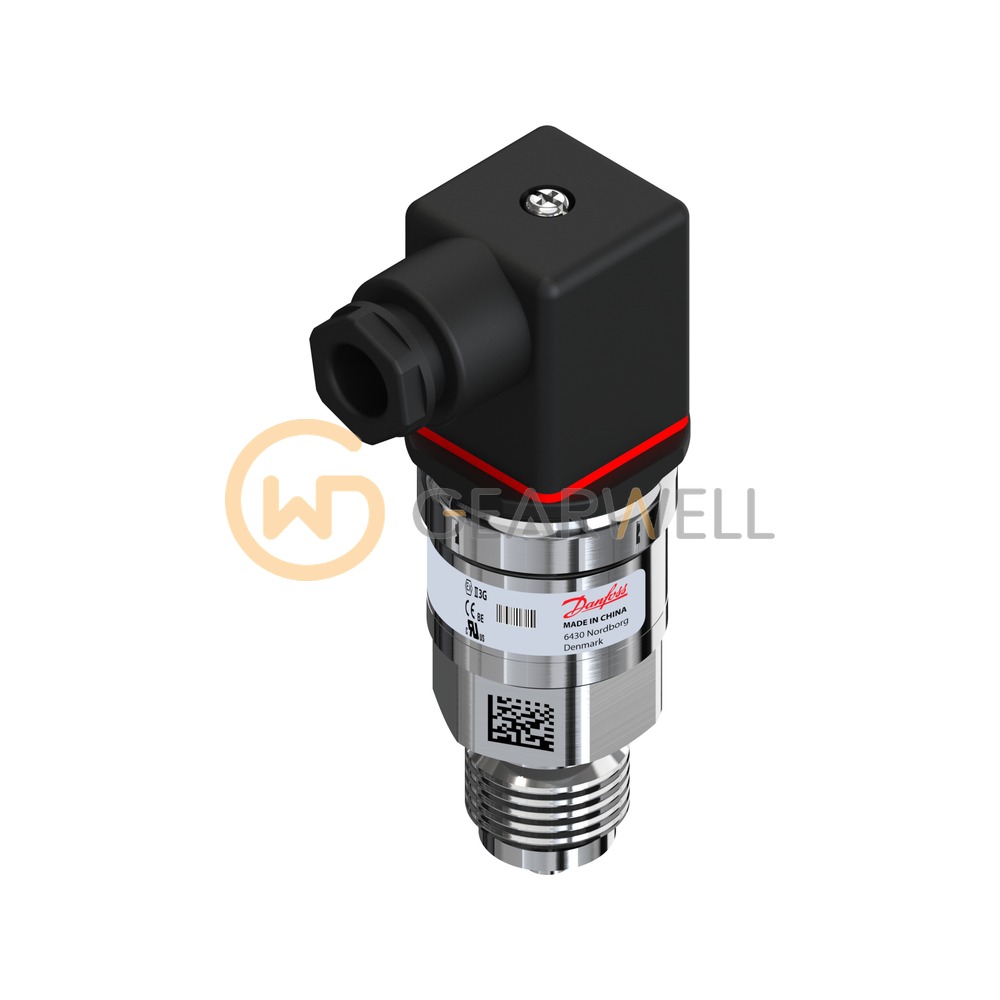

Danfoss 060G1471 MBS 3300 Pressure Transmitter
- Brand
- DANFOSS
- Model
- 060G1471
- GEARWELL SKU
- GWP-000006963
- Category
- Pressure, Flow & Temperature
Key specifications
- Product type
- MBS 3300
- Output signal
- 4 to 20 mA
- Pressure range
- 0 to 10 bar
- Supply voltage
- 9 to 32 V DC
- Enclosure rating
- IP65
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 060G1471 is a Danfoss MBS 3300 pressure transmitter (specification key MBS 3300-2011-A6AB08-0) for 0 to 10 bar (0 to 145 psi), gauge reference, built for higher temperatures. It gives a 4-20 mA output from a 9-32 V DC supply, with typical accuracy of 0.5 % of full scale and overload pressure up to 60 bar. The pressure connection is G 1/2 male (EN 837) and the electrical connection is an EN 175301-803-A angle plug with Pg 11 entry, rated IP65. Medium temperature range is -40 to 125 °C and ambient range -40 to 100 °C; approvals include CE, UL Recognized and ATEX Ex ec IIA T4 Gc.
Technical reference
| Product name | Danfoss 060G1471 MBS 3300 Pressure Transmitter |
|---|---|
| Brand | DANFOSS |
| Model | 060G1471 |
| Category | Pressure, Flow & Temperature |
| Product type | MBS 3300 |
| Output signal | 4 to 20 mA |
| Pressure range | 0 to 10 bar |
| Supply voltage | 9 to 32 V DC |
| Enclosure rating | IP65 |
| Pressure connection | G 1/2 (EN 837) |
| Electrical connection | EN 175301-803-A, Pg 11 |
| Medium temperature range | -40 to 125 °C |
