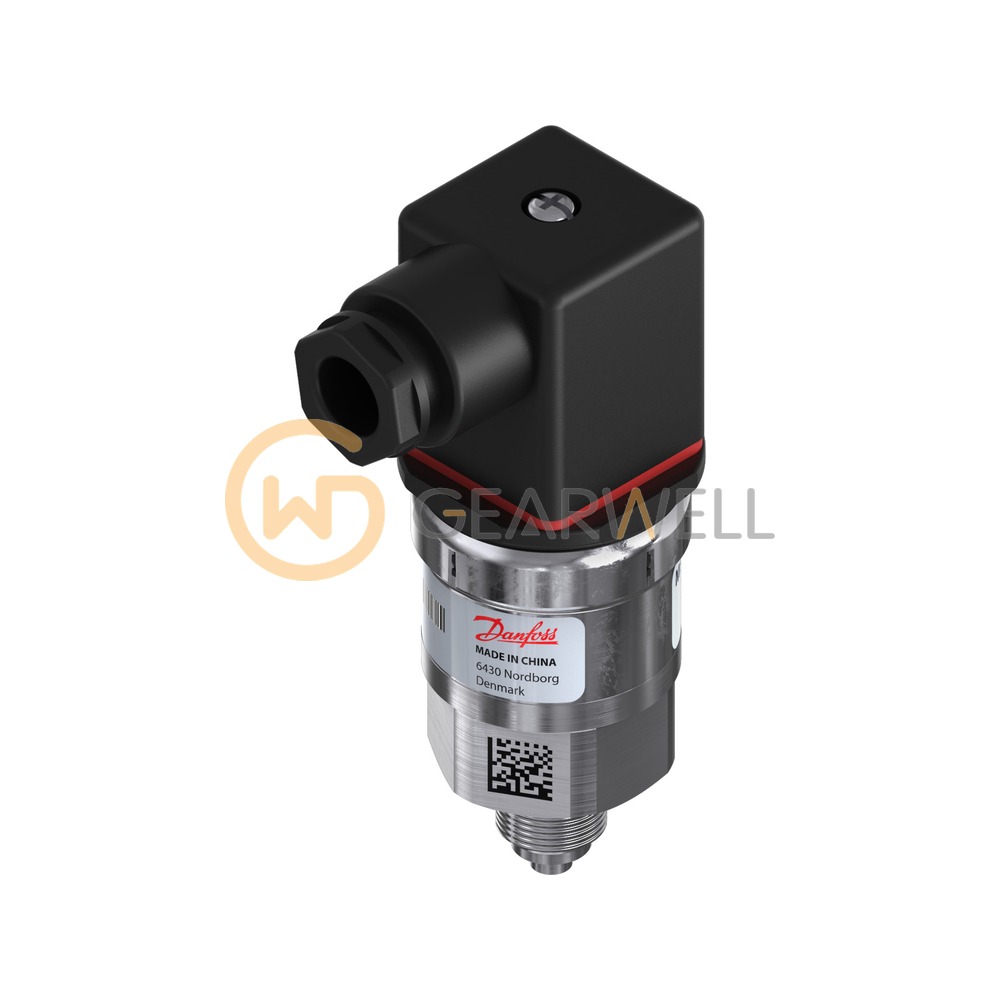

Danfoss 060G1125 MBS 3000 Pressure Transmitter
- Brand
- DANFOSS
- Model
- 060G1125
- GEARWELL SKU
- GWP-000011587
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- 4-20 mA
- Pressure range
- 0-10 bar
- Accuracy (typical)
- ±0.5 % FS
- Enclosure rating
- IP65
- Specification key
- MBS 3000-2011-A1AB04-0
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 060G1125 is a Danfoss MBS 3000 pressure transmitter (specification key MBS 3000-2011-A1AB04-0) for 0 to 10 bar (0 to 145 psi), gauge reference. Output is 4-20 mA from a 9-32 V DC supply; typical accuracy is 0.5 % of full scale and the overload pressure is up to 60 bar. It has a G 1/4 male pressure connection (EN 837) and an EN 175301-803-A angle plug with Pg 9 entry, rated IP65. Medium and ambient temperature range is -40 to 85 °C; approvals include CE, UL Recognized and ATEX Ex ec IIA T4 Gc.
Technical reference
| Product name | Danfoss 060G1125 MBS 3000 Pressure Transmitter |
|---|---|
| Brand | DANFOSS |
| Model | 060G1125 |
| Category | Pressure, Flow & Temperature |
| Output signal | 4-20 mA |
| Pressure range | 0-10 bar |
| Accuracy (typical) | ±0.5 % FS |
| Enclosure rating | IP65 |
| Specification key | MBS 3000-2011-A1AB04-0 |
| Pressure reference | Gauge (relative) |
| Pressure connection | G 1/4 (EN 837) |
| Electrical connection | Angular connector EN 175301-803-A, Pg 9 |
| Medium temperature range | -40 to 85 °C |
