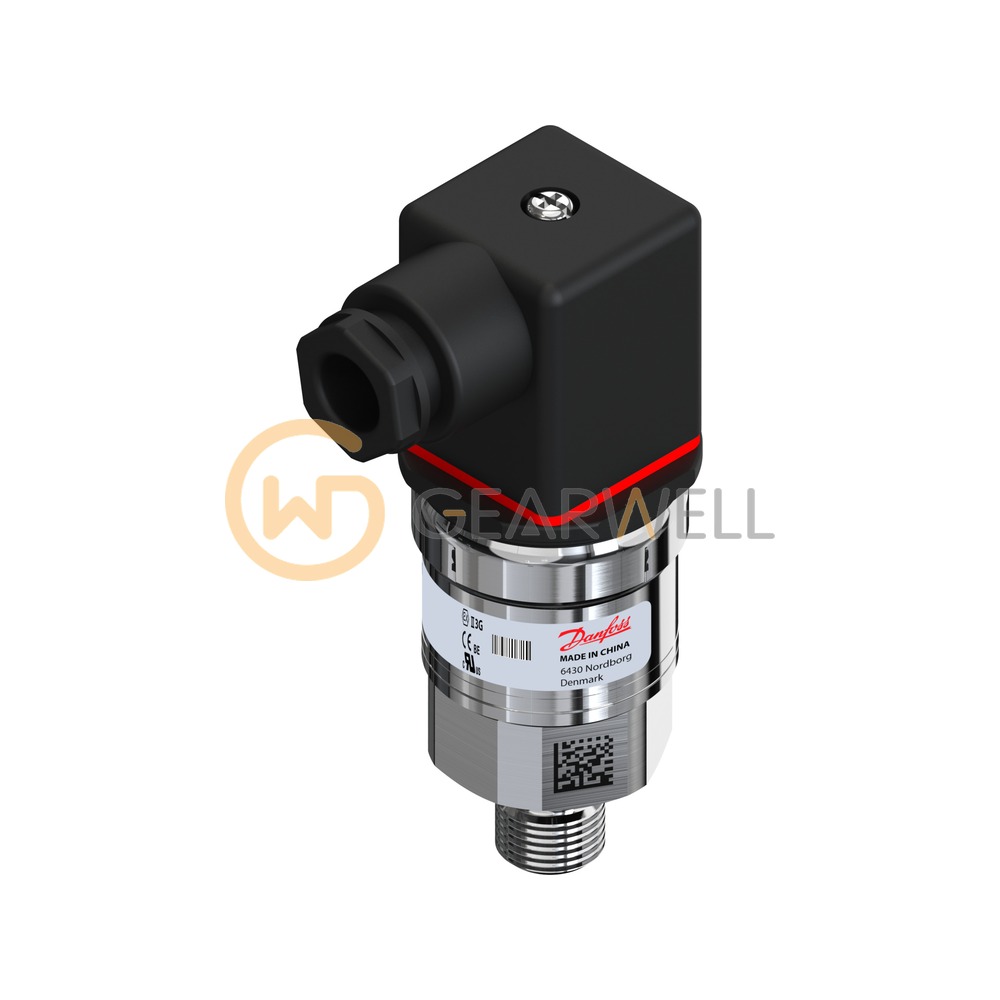

Danfoss 060G1153 MBS 3050 Pressure Transmitter
- Brand
- DANFOSS
- Model
- 060G1153
- GEARWELL SKU
- GWP-000006962
- Category
- Pressure, Flow & Temperature
Key specifications
- Product type
- MBS 3050
- Output signal
- 4 to 20 mA
- Pressure range
- 0 to 250 bar
- Supply voltage
- 9 to 32 V DC
- Accuracy (typical)
- ±0.5 % FS
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 060G1153 is a Danfoss MBS 3050 pressure transmitter (specification key MBS 3050-3431-A1FB04-4) for 0 to 250 bar (0 to 3625 psi), sealed gauge reference, with an integrated pulse snubber for pressure peaks. Output is 4-20 mA from a 9-32 V DC supply; typical accuracy is 0.5 % of full scale and the overload pressure is up to 600 bar. It has a G 1/4 male pressure connection (DIN 3852-G) and an EN 175301-803-A angle plug with Pg 9 entry, rated IP65. Medium and ambient temperature range is -40 to 85 °C; approvals include CE, UL Recognized and ATEX Ex ec IIA T4 Gc.
Technical reference
| Product name | Danfoss 060G1153 MBS 3050 Pressure Transmitter |
|---|---|
| Brand | DANFOSS |
| Model | 060G1153 |
| Category | Pressure, Flow & Temperature |
| Product type | MBS 3050 |
| Output signal | 4 to 20 mA |
| Pressure range | 0 to 250 bar |
| Supply voltage | 9 to 32 V DC |
| Accuracy (typical) | ±0.5 % FS |
| Enclosure rating | IP65 |
| Pressure connection | G 1/4 (DIN 3852-G) |
| Electrical connection | EN 175301-803-A, Pg 9 |
