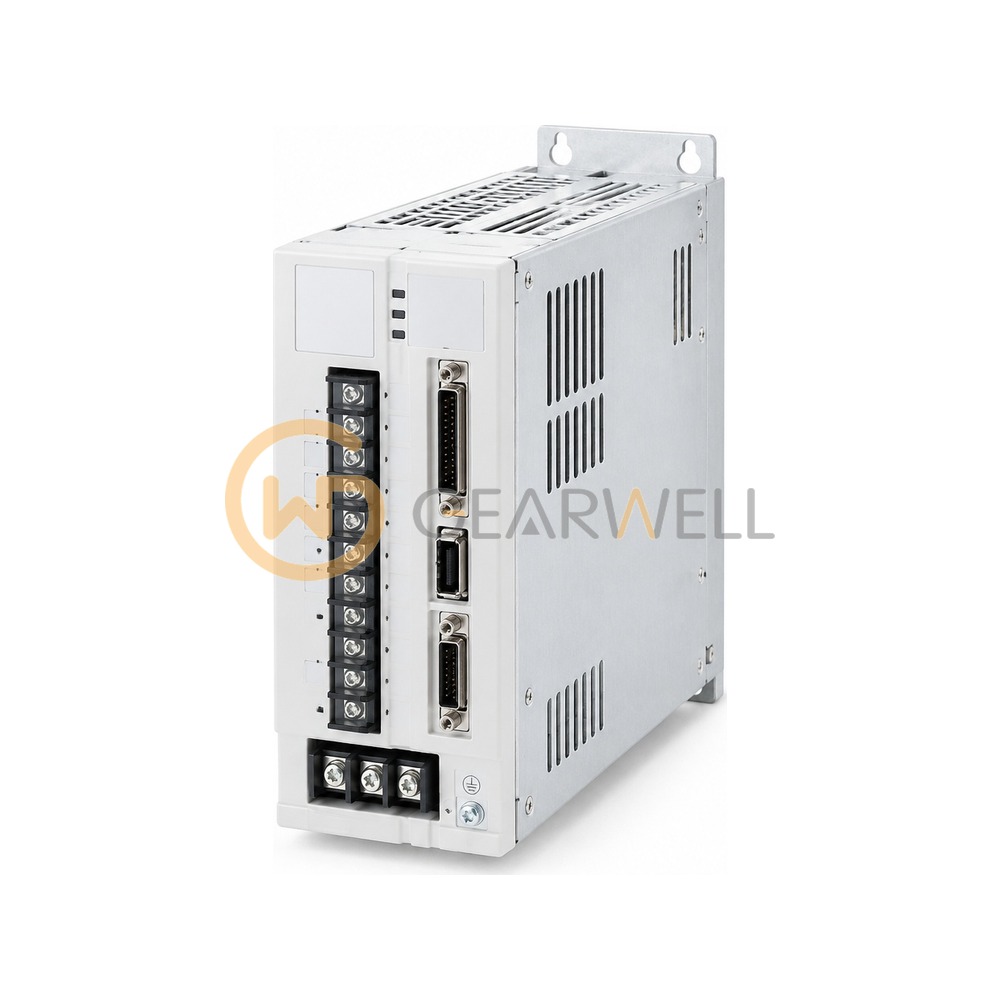

Control Techniques MP-1250-00-000 MDS Servo Power Module
- Brand
- Control Techniques
- Model
- MP-1250-00-000
- GEARWELL SKU
- GWP-000033682
- Category
- Servo Systems
Key specifications
- Input
- 342 - 528 V AC, 3-phase
- System
- Modular Drive System (MDS), 480 V
- Module type
- Power module (common DC bus supply)
- Code suffix "-00-000"
- as collected; not listed in the official model-number table
- Continuous / peak power
- 12.5 / 25.0 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Control Techniques MP-1250-00-000 MDS Servo Power Module |
|---|---|
| Brand | Control Techniques |
| Model | MP-1250-00-000 |
| Category | Servo Systems |
| Input | 342 - 528 V AC, 3-phase |
| System | Modular Drive System (MDS), 480 V |
| Module type | Power module (common DC bus supply) |
| Code suffix "-00-000" | as collected; not listed in the official model-number table |
| Continuous / peak power | 12.5 / 25.0 kW |
| Drive modules supplied | up to 8 |
