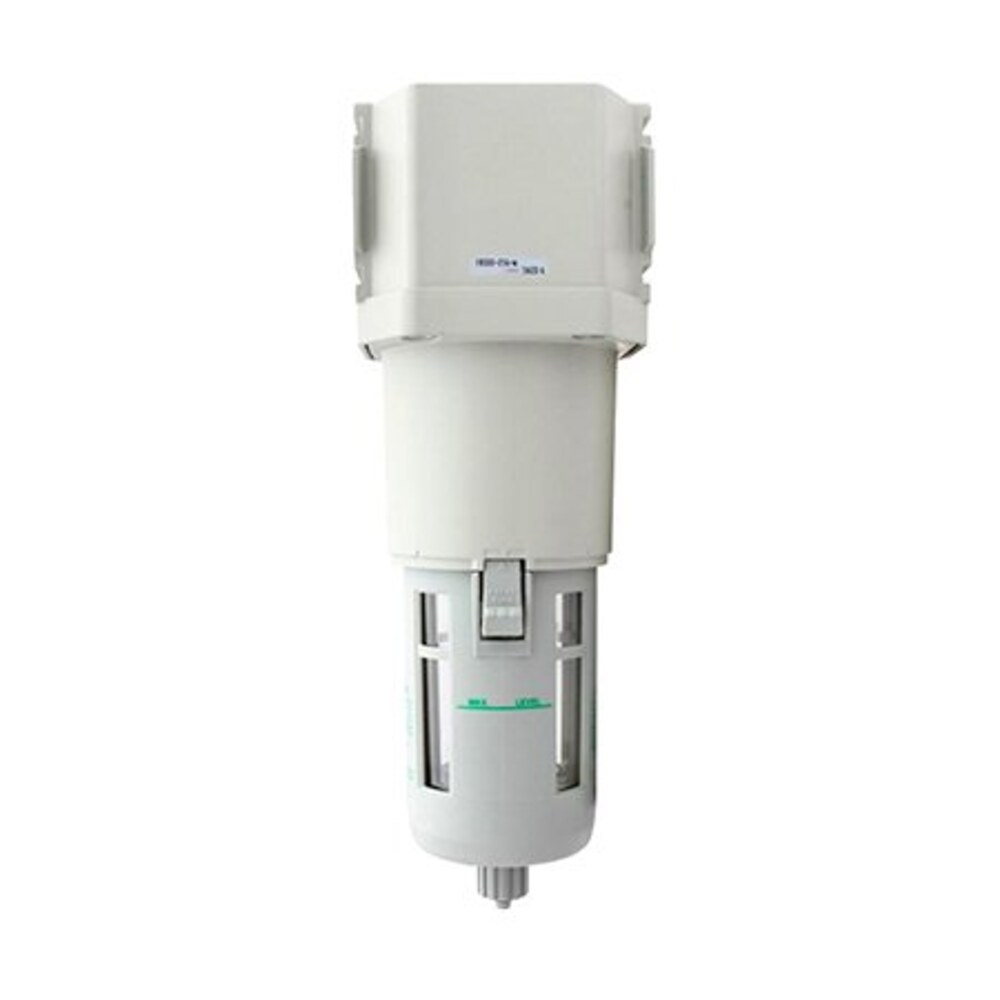

CKD M1000-6-W-S Filter
- Brand
- CKD
- Model
- M1000-6-W-S
- GEARWELL SKU
- GWP-000003617
- Category
- Industrial Components
Key specifications
- Port size
- Rc 1/8
- Product type
- S-type oil mist filter
- Working fluid
- Compressed air
- Proof pressure
- 1.5 MPa
- Working pressure
- 0.1 to 1.0 MPa
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CKD M1000-6-W-S Filter |
|---|---|
| Brand | CKD |
| Model | M1000-6-W-S |
| Category | Industrial Components |
| Port size | Rc 1/8 |
| Product type | S-type oil mist filter |
| Working fluid | Compressed air |
| Proof pressure | 1.5 MPa |
| Working pressure | 0.1 to 1.0 MPa |
| Filtration rating | 0.3 µm |
| Maximum processing flow | 150 L/min (ANR) at 0.7 MPa primary pressure |
| Ambient / fluid temperature | 5 to 60 °C |
