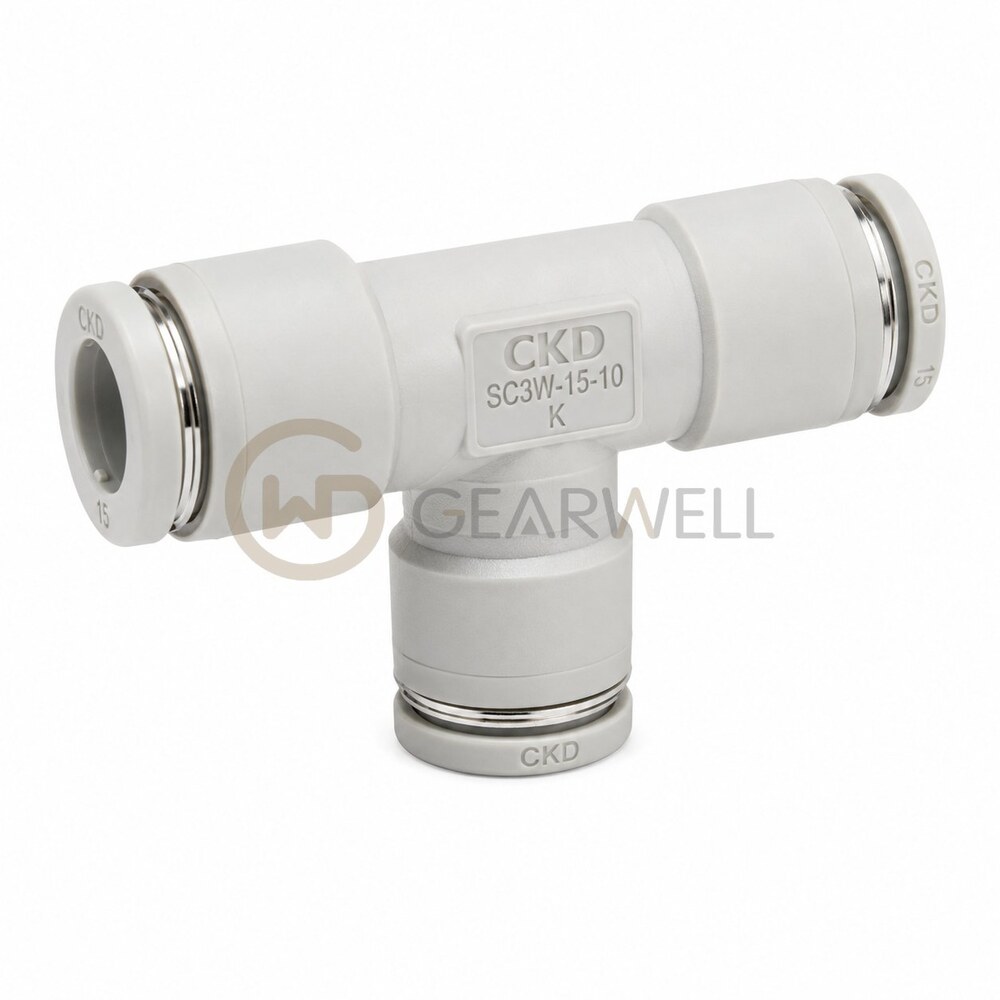

CKD SC3W-15-10 Industrial Connector
- Brand
- CKD
- Model
- SC3W-15-10
- GEARWELL SKU
- GWP-000002840
- Category
- Industrial Automation Parts
Key specifications
- Width across flats
- 24 mm
- Dimension A
- 66.7 mm max.
- Dimension B
- 33.8 mm
- Dimension C
- 15 mm
- Dimension D
- 13.5 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CKD SC3W-15-10 Industrial Connector |
|---|---|
| Brand | CKD |
| Model | SC3W-15-10 |
| Category | Industrial Automation Parts |
| Width across flats | 24 mm |
| Dimension A | 66.7 mm max. |
| Dimension B | 33.8 mm |
| Dimension C | 15 mm |
| Dimension D | 13.5 mm |
| Port thread | R1/2 |
| Product type | Elbow-type speed controller with one-touch fitting |
| Applicable tube outer diameter | 10 mm |
