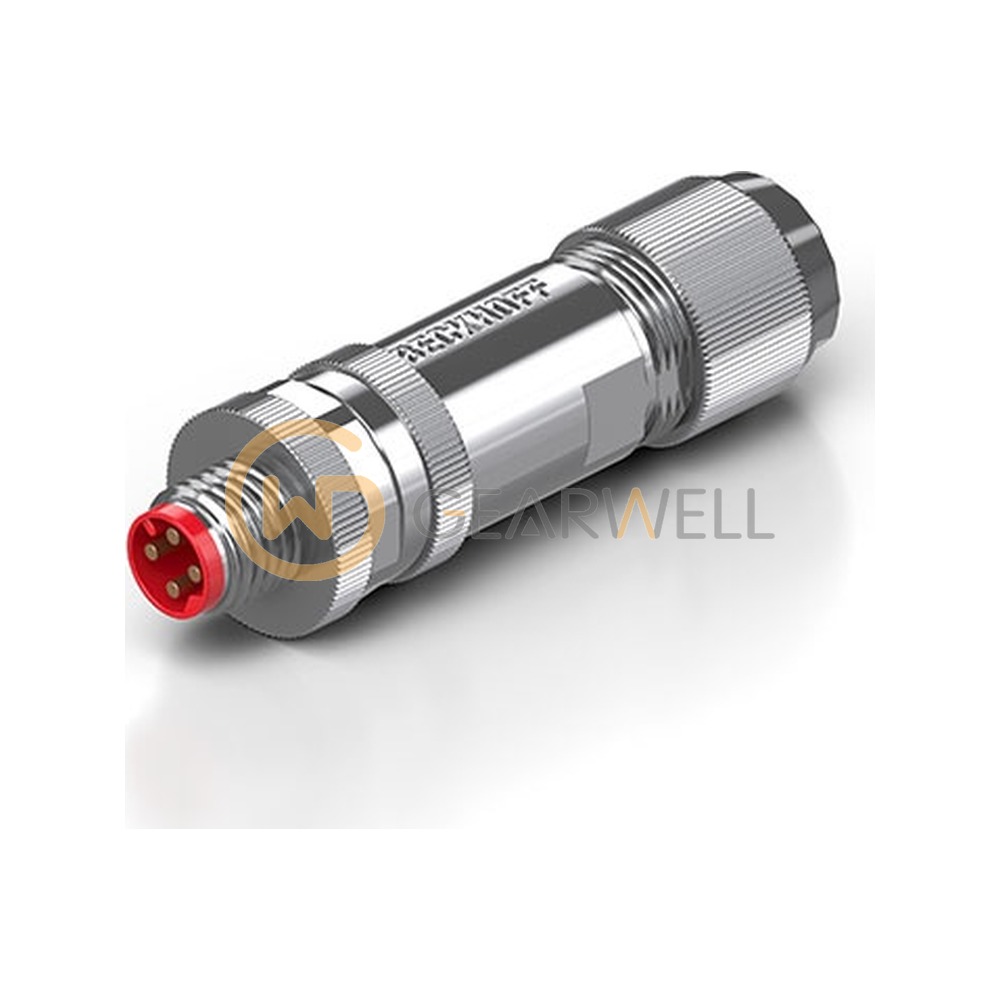

BECKHOFF ZS7000-0002 Plug, Field Assembly, Shielded
- Brand
- BECKHOFF
- Model
- ZS7000-0002
- GEARWELL SKU
- GWP-000007163
- Category
- Terminals, Cables & Connectors
Key specifications
- Coding
- EtherCAT P-coded
- Shielding
- yes
- Contact type
- male
- Rated current
- 3 A at 40°C (according to IEC 61076-2-104)
- Rated voltage
- 24 V DC (according to IEC 61076-2-104)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff ZS7000-0002 is a shielded M8 plug for field assembly, male, 4-pin with EtherCAT P coding, rated at 3 A at 40 °C and 24 V DC to IEC 61076-2-104. It has screw terminals for wires up to AWG20 (0.5 mm²), takes cables with an outer diameter of 4.9 to 6.5 mm, has a metal housing, a recommended nut torque of 0.4 to 0.5 Nm and at least 100 mating cycles. Check the full order number, including any suffix, on the device when requesting a quote.
Technical reference
| Product name | BECKHOFF ZS7000-0002 Plug, Field Assembly, Shielded |
|---|---|
| Brand | BECKHOFF |
| Model | ZS7000-0002 |
| Category | Terminals, Cables & Connectors |
| Coding | EtherCAT P-coded |
| Shielding | yes |
| Contact type | male |
| Rated current | 3 A at 40°C (according to IEC 61076-2-104) |
| Rated voltage | 24 V DC (according to IEC 61076-2-104) |
| Connector type | plug |
| Recommended torque, nut | 0.4...0.5 Nm |
| Number of positions (face) | 4-pin |
